Installation Time
(approx) 3 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Synergy Manufacturing Heavy Duty Steering Kit with Stabilizer Clamp (97-06 Jeep Wrangler TJ)Find parts that fit my vehicle
Item J245381
Our Price
$970.00 kit
Military, Medical & First Responders
$48.50 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- Larger And Stronger Bolt-On Replacement For Stock Steering
- No Reaming Or Drilling Of The Steering Knuckles Required
- Direct Bolt-On Kit Modeled After Stock Y-Style Steering
- Minimizes Bump Steer Compared To T-Style
- Keeps Front Wheels Separated To Help Prevent Death Wobble
- Some Toe Change Present But Not Adversely Affecting Driving

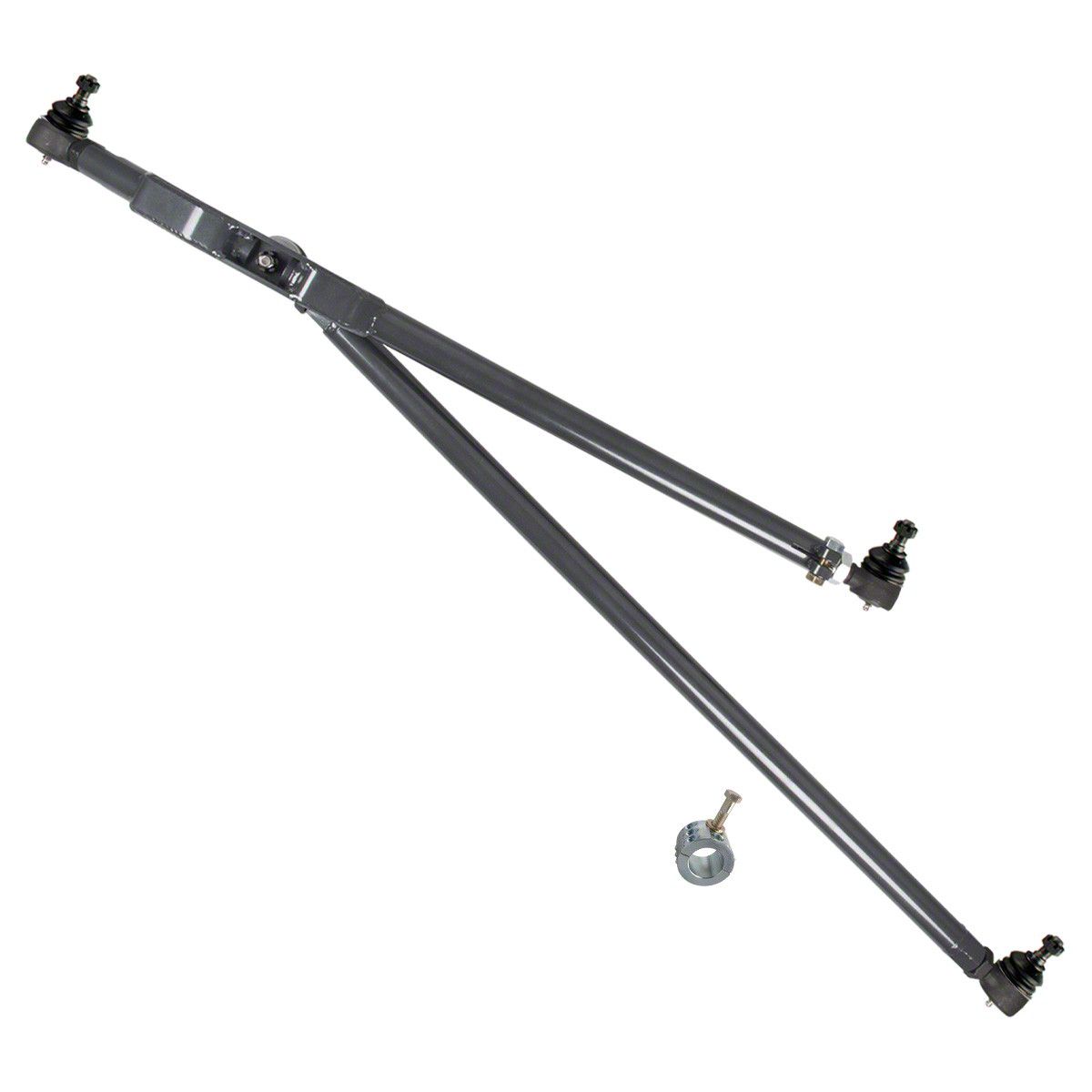

- Complete Kit Includes New Tie Rod, Drag Link, Steering Stabilizer Clamp, And Hd Metal On Metal Tie Rod Ends
- Tie Rod Made From 1-3/8" 4130 Chromoly Steel And Heat Treated For Maximum Strength
- Drag Link Made From 1-3/8" 1018 Solid Bar To Eliminate Deflection
- Abrasion-Resistant Powder Coat Finish For Durability And Corrosion Resistance
- Drag Link Features Double Adjuster Assembly For Length Adjustment Without Removal
- Tie Rod Features Left Hand And Right Hand Opposing Threads For Length Adjustment Without Removal
- Fits Vehicles With 2-6" Of Lift And Requires A Minimum Of 2" Front Bump Stop Spacers
- Single Plane Tie Rod End Included At Knuckle End Of Drag Link To Prevent Steering Misalignment
- Wheel Back Spacing Requirements: 15" Max 3.75", 16" Max 4.00", 17" Max 4.50"
- For 2-4" Of Lift Use Stock Pitman Arm, For 4.5"-6" Use Drop Pitman Arm
- Drag Link Bent To Clear Factory Axle Brackets And Compatible Up To 6" Lifts
- Includes Heavy Duty Metal On Metal Tie Rod Ends 4135-L And 4137-L
- Steering Stabilizer Clamp Is CNC Extruded From 6061-T6 Aluminum And Black Anodized
- Stabilizer Clamp Designed To Mount Factory And Aftermarket Steering Stabilizers With A 1/2" Bolt To The Drag Link
- Recommended Use With Synergy Tuned Fox IFP Steering Stabilizer
- Fits 97-06 Jeep Wrangler TJ
Description
Heavy Duty Steering Enhancement. The Synergy Manufacturing Heavy Duty Steering Kit with Stabilizer Clamp offers a robust upgrade to stock steering components for improved durability and performance. Its design aims to reduce bump steer and death wobble while providing easy adjustability for optimal alignment. This kit is ideal for lifted vehicles, ensuring reliable steering under demanding conditions.
Construction and Appearance. The kit features a tie rod made from heat-treated 1-3/8" 4130 Chromoly steel and a drag link crafted from 1-3/8" 1018 solid bar to ensure maximum strength and rigidity. Both components are finished with abrasion-resistant powder coating to resist corrosion and wear. The steering stabilizer clamp is CNC extruded from 6061-T6 aluminum and black anodized to deliver lightweight durability and excellent corrosion resistance.
Installation. Installation is straightforward with 100% bolt-on components requiring no reaming or drilling of steering knuckles. Basic hand tools suffice to complete the process with minimal hassle.
Application. Designed specifically for the 97-06 Jeep Wrangler TJ, this kit complies with standard lift and clearance requirements and should be paired with appropriate pitman arms based on lift height.
Synergy Manufacturing 8121-10
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Heavy-Duty Drag Link
- (1) Heavy-Duty Tie Rod
- (1) Steering Stabilizer Clamp (6061-T6 CNC Aluminum)
Tech Specs
