(approx) 1 Hour
Light to Moderate mechanical skill required.
- Customer Submitted:
- How to Install ARB High Output Air Compressor on your Jeep Wrangler
$290.03 (each)FREE Shipping
Open Box from $104.18
Features, Description, Reviews, Q&A, Specs & Installation

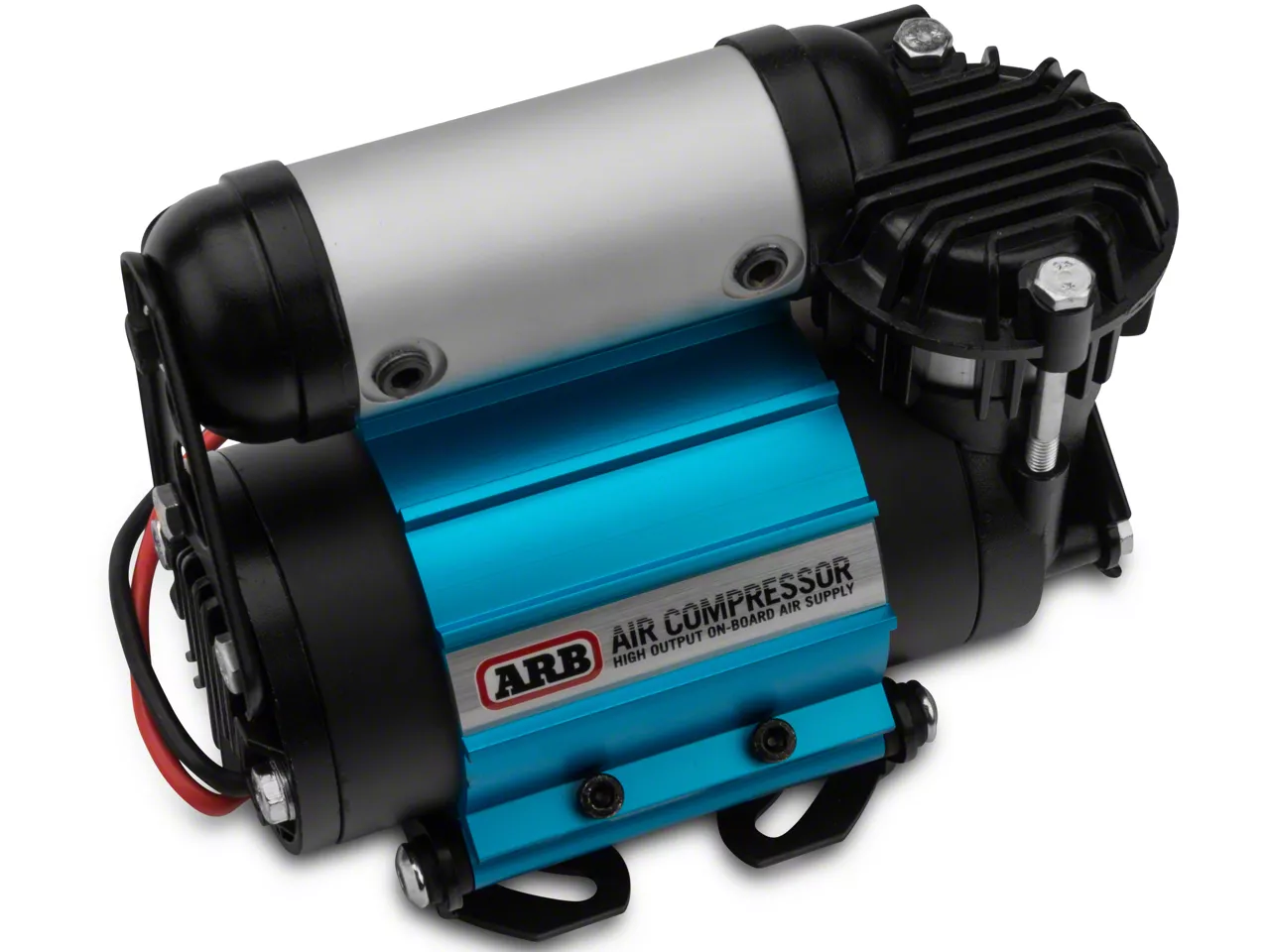

On Board Performance. ARB's high performance 12 air compressor is the ideal complement for your Wrangler. Featuring a fully sealed, thermally protected assembly with a relocatable air filter, this compressor is perfect for mudding and off road adventures in the most extreme climates. This on board air compressor is perfect for those looking for a quiet compact compressor for their air lockers and comes fully equipped with a wiring loom featuring Air Locker solenoid plug in contacts. It easily manages four 35-37 inch tires in one single duty cycle and can air up a 35 in just over 2 minutes, making it well worth the investment.
Durable Construction. This fully sealed compressor is constructed from high grade materials including military and aerospace quality components. It comes fully equipped with a hard anodized cylinder bore, a Teflon impregnated carbon fiber piston, ball bearings and a German made high shock rated cylindrical roller bearing to ensure superior performance and long life. This compressor features a high density washable sintered bronze air filter fitted in a relocatable splash resistant assembly to provide superior filtration for the life of the unit, ensuring clean air flow where you need it.
Installation. ARB's air compressor comes with all the hardware and an anodized mounting bracket to assist in dissipating heat. This also provides an anti-vibration and sound deadening mount to maintain the quality and performance of your compressor. This kit is also equipped with an over pressure safety value, providing protection to it as well as your Jeep.
Application. The ARB High Output Air Compressor is designed for use on 1987-2020 Jeep Wrangler YJ, TJ, JK and JL models.
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
March 27, 2020
Was easy to install and does exactly what I need it to. Was able to cut my air up time by a quarter.Helpful (0)
February 07, 2020
? Everything you need
Received new air compressor today and have no fittings to hook up air lines. Called Extreme terrain for air line accessories ( no accessories in web page ) solution they offered to call arb for me Looks great on the work bench PS it does not come with the fittings you need !Helpful (1)
February 02, 2020
Great little compressor
This is a great compressor. No need for the twin compressor this one does the trick. Easily tucks on the firewall so it’s out of the way and doesn’t take up any precious interior room. Easy hook up and fills up a 35” in about 2 min or less depending on how low you go. Would highly recommend this product.Helpful (0)
June 24, 2019
2018 JLUR Rear Cargo ARB Compressor Installation
I’m very happy with this compressor. I didn’t want to install under the hood and instead chose to mount in the rear cargo well. I had to rebuild the wiring harness to utilize the factory switch bank with the pressure switch but after consulting ARB directly and patching the cables to length to reach the battery the setup worked perfectly. I was able to air all four 33” tires from flat to 38 PSI in 10 minutes.Helpful (5)
May 19, 2019
Great deal .well made .easy install. Good air up time.Helpful (1)
April 16, 2019
Finally have on board air.
I was using a portable air compressor to air up after a trail run. When I damaged my Rubicon electric sway bar controller and balked at the $2k replacement cost, I installed an air activated sway disconnect system. But that required an air supply. Of course, ARB was the go-to for onboard air. Easy to install and hook up. Now my sway bar works again and I have onboard air available for air-ups.Helpful (1)
March 04, 2019
Easy Install - works well
Installation in my 2012 JK was very easy, after ordering the EVO-1097 mounting bracket - perfect fit. Only hitch was that the threads on the air outlets are BSPT and I had to order an adapter to get to NPT. I did not use the provided switch, but instead hooked it up to my SwitchPro SP9100. A test on tire fill time resulted in 50 seconds to inflate from 25 psi to 37 psi on standard 32".Helpful (3)
February 28, 2019
ARB is the best! This product came with everything needed to install under my hood, all I needed was a mounting bracket. Great quality, works wellHelpful (2)
February 15, 2019
Very heavy duty compressor. Nice to be able to adjust where air ports point. All the wires are labeled for easy Installation. Very happy.Helpful (3)
January 30, 2019
I have the full setup in my jeep now, ARB Pump air hose setup and front and rear ARB lockers. It all works well, the pump seems to put out good volume and it runs the lockers perfectly. Its nice to be able to flip a couple switches and lock/unlock instantly.Helpful (4)
You don't provide specifications or installation instructions, which model is it so I can look for those
This ARB High Output Air Compressor is ARB's CKMA12 compressor, and I have attached a link below for the specifications. ARB does not supply installation instructions, as the compressor can be used and installed in various ways for various purposes. http://store.arbusa.com/Assets/PDF/compressorTechnicalSpecifications.pdf
Does this compressor have a on-off switch or does it need to be routed to a rocker switch?
The compressor would need to be wired to a rocker switch, this and the wiringharness is included with the kit.
What under hood mounting system is recommended for this unit or does the mount that it comes with work under hood?
Depending on the installation method you could use the included bracket to get it installed. Though we do offer alternative options for getting this mounted inside an engine bay. For the exact kit for your set up I recommend reaching out to an expert over the phone or chat.
I wanted to mount compressor under the hood on my 4.0l 2003 tj will this unit fit on the metal plate located below the master cylinder on Lf area . I want unit that I can mount under the hood thanks
Hello, unfortunately we did not test fit the ARB High Output Air Compressor (87-17 Wrangler YJ, TJ, & JK) on that location. But the measurements are, 5.7 Inches in Height, 7.5 Inches in Length and 3.9 Inches in Width
I want to pair this with a air tank. Should I get a 150 or 200 psi tank?
This ARB High Output Air Compressor has a pressure switch at 90-100 psi, so a 150psi tank would work however, it would take a significant amount of time to fill the tank. The ARB 12V Twin On Board Air Compressor, item J101465, has a switch for 150psi and since it is a twin, it will fill the 150 psi tank much quicker. https://www.extremeterrain.com/arb-high-output-dualCKMTA12.html
Hello, From the ends of the wires that connect to the battery to where the compressor gets plugged in is 78.5”.
This does not include a coupling.
The CFM would be 6.16.
This item would need to have a custom mounting bracket made for each vehicle.
To ensure proper operation, following the manufacturer's installation instruction is suggested. Not doing so may void the item's warranty.
The ARB High Output Air Compressor can be used for air locker applications. Inflating your larger tires will take longer than usual, but can be accomplished.
The ARB High Output Air Compressor can be used for air locker applications. It can also air up 35-inch tires.
The ARB High Output Air Compressor is a universal compressor that can be used on any vehicle. Because of this their is not specific or preferred mounting location. We have seen these mounted in the engine compartment, under seats, and in the cargo areas. Wiring will be simple with the included wiring harness.
The ARB High Output Air Compressor can be used with some air horns, depending on the requirements of the air horn kit.
(approx) 1 Hour
Light to Moderate mechanical skill required.
What's in the Box
