Next Venture Motorsports Belly Skid Plates with Rear Exhaust and DEF Skid Plates; Bare Aluminum (20-23 3.0L EcoDiesel Jeep Wrangler JL)Find parts that fit my vehicle

Item J170174
Product Image
3 Reviews of Next Venture Motorsports
Our Price

$4,199.99 set

Military, Medical & First Responders $210.00 Available in XT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

      • Made From 1/4 Inch Thick 5052 Aluminum Providing Superior Formability And Strength
      • Designed To Protect Engine, Transmission, Transfer Case, DEF Tank, And Fuel Tank On Tough Terrain
      • Features Tucked Bolt Heads To Avoid Obstructions
      • Requires Removal Of Factory Fuel Tank Skid For Installation, Providing Additional 1/2 Inch Ground Clearance And Weight Reduction
      • Includes Removable Access Panel Under Fuel Filter/Water Separator For Easy Maintenance
      • Compatible With Aftermarket Suspension Kits Like Rock Krawler, EVO, And Teraflex With Minor Modifications
      • Weight Approximately 117 Pounds Which Is A Net Gain Of About 30 Pounds Compared To Factory Components
      • Optional Ultra High Molecular Weight Polyethylene (UHMW) Panels Available For Increased Abrasion Resistance And Impact Absorption
      • UHMW Panels Are 3/8 Inch Thick, Slippery, Self-Lubricating, And Increased Impact Resistant
      • Recommended 1.5 Inch Lift Or Front Bump Stop Extensions For Certain Engine Models For Proper Clearance
      • Includes Hardware Designed Not To Damage Fuel Tank With Protection Covers
      • All Pieces Are Laser Cut, CNC Formed, And Hand-Welded In USA
      • Minor Hand Fitting May Be Required Due To Factory Vehicle Tolerances
      • Installation May Require Draining Fuel Tank To About 1/8 Tank And Using Temporary Straps
      • Optional UHMW Panels Can Be Added Later But Require Removal Of Skid Plates For Installation
      • Designed To Withstand Severe Off-Road Abuse
      • Fits 20-23 3.0L EcoDiesel Jeep Wrangler JL

      Description

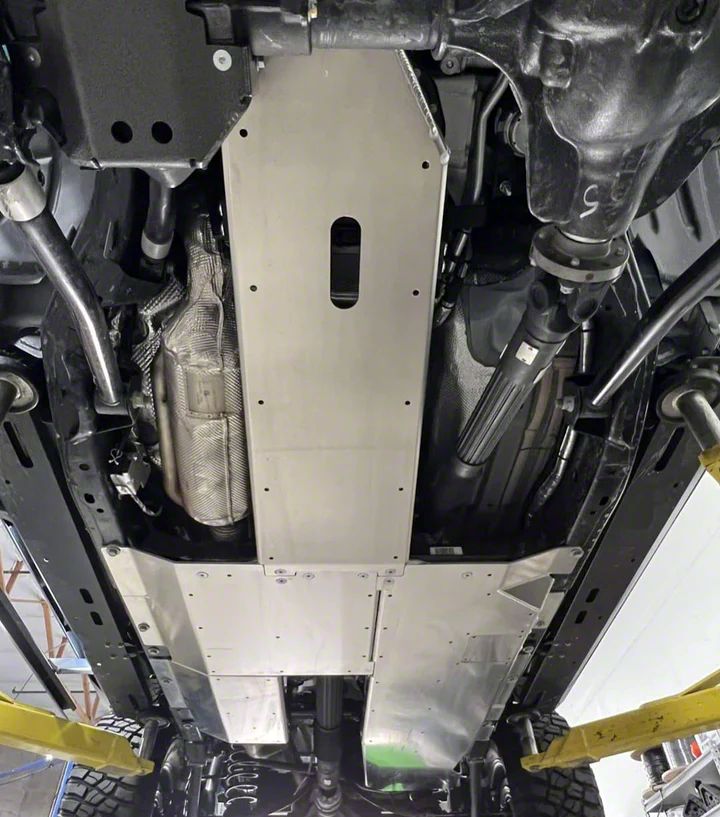

      Heavy-Duty Protection. The Next Venture Motorsports Belly Skid Plates with Optional Rear Exhaust and DEF Skid Plates; Bare Aluminum offer comprehensive underbody protection for critical drivetrain components of the Jeep Wrangler JL 3.0L EcoDiesel. Designed for off-road enthusiasts, these skid plates shield the engine, transmission, transfer case, DEF tank, and fuel tank while ensuring easier maintenance access through a removable panel.

      Construction and Appearance. Crafted from 1/4 inch thick 5052 aluminum, known for its excellent strength and formability, the skid plates feature a precise laser-cut and CNC-formed design. The plates are hand-welded and shipped in bare metal form, delivering a rugged and durable finish ideal for demanding trail conditions. Optional UHMW panels add abrasion resistance and a slippery surface to prevent hang-ups on obstacles.

      Installation. Installation is moderately challenging and requires removal of the factory fuel tank skid and draining the fuel tank to about 1/8 tank. No drilling is needed, but some minor hand fitting and using temporary straps for support during installation is recommended.

      Application. These skid plates are specifically designed to fit the 2020-2023 Jeep Wrangler JL models equipped with the 3.0L EcoDiesel engine. Minor modifications may be necessary for vehicles with aftermarket suspension setups such as Rock Krawler, EVO, or Teraflex long arms.

      Next Venture Motorsports NV-JL-00042

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 30 Minutes

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) Skid Plate Set

      4.5

      Reviews of Next Venture Motorsports Exterior Products (3)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Wrangler

      • JL Rubicon 4 Door - 20, 21, 22, 23
      • JL Unlimited High Altitude 4 Door - 22
      • JL Wrangler 4 Door - 20, 21, 22, 23

            }
