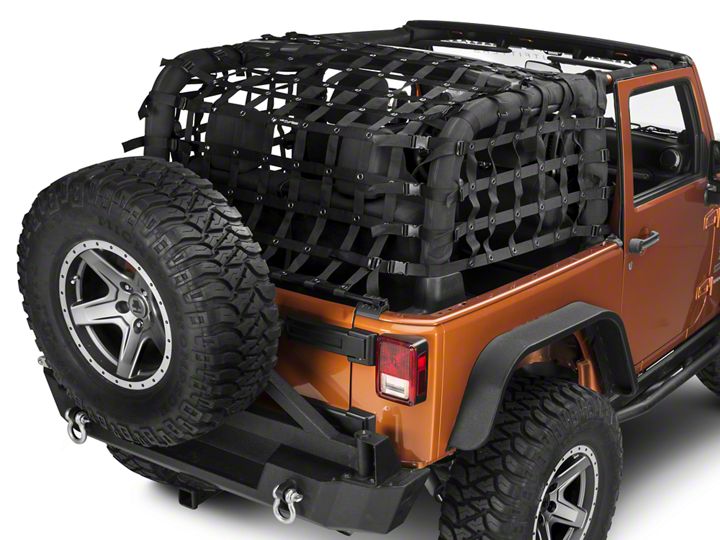

How to Install Dirty Dog 4x4 Rear Netting - Black (07-18 Wrangler JK 2 Door) on your Jeep Wrangler

Installation Time

1 hours

Tools Required
  • Box Cutter/ Knife
  • Soft Top Tail Gate Clips (Optional)
Extreme Terrain
Shop Parts in this Guide

1. Carefully open the package using a box cutter or knife (Figure A) and ensure all three pieces of the netting are included and undamaged.



2. Locate the driver, center, and passenger sides (Figure B).


3. Begin by attaching the first strap at the top of the bar behind the front driver's seat (Figure C).


4. Attach the rear top strap at the top of the bar at the rear of the driver's side next (Figure D).


5. Attach each lower strap going front to rear and keeping the spacing consistent (Figure E).


6. Repeat Steps 3-6 on the passenger side (Figure F).


7. Put the overhead piece on the vehicle and attach to the four straps at the top of both the driver and passenger sides already installed (Figure G).


8. On the backside of the vehicle, attach the points into place using all eight buckles (four on each side) then adjust the tension so the net is centered (Figure H).


9. Slide each half of the tail gate bar (included) into the lowest row (Figure I).


10. Clip the full tail gate bar into the soft top clips (not included) (Figure J). Note: If not using a soft top (or soft top tail gate clips) this last row can be cut off).


11. Secure the straps to the roll bar (Figure K). Ensure straps are run tight through the roll bar.


12. Attach the straps at the top front corners over the speaker bar (Figure L).


13. Adjust and tighten to center the entire netting.


Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 05/07/2018.
