How to Install Bestop Bolt-On Windshield Channel for Bikini or Brief Style Tops (07-18 Wrangler JK) on your Jeep Wrangler

Installation Time

1 hours

Tools Required
  • Box Cutter/ Knife
  • 10mm Wrench
  • Phillips Screw Driver
Extreme Terrain
Shop Parts in this Guide

1. Carefully open the package using a box cutter or knife (Figure A) and ensure the hardware is included and undamaged.



2. Place the header bracket on the header bar (L on the left side, R on the right side) (Figure B).


3. Using a Philips head screwdriver and a 10mm wrench, tighten the supplied screws and nuts (Figure C).


4. Repeat Steps 2 & 3 on the other side (Figure D).


Note: This Windshield Channel is sold separately from any top. At this stage, attach the top using the supplied riveted buttons along the riveted buttons on the windshield channel.

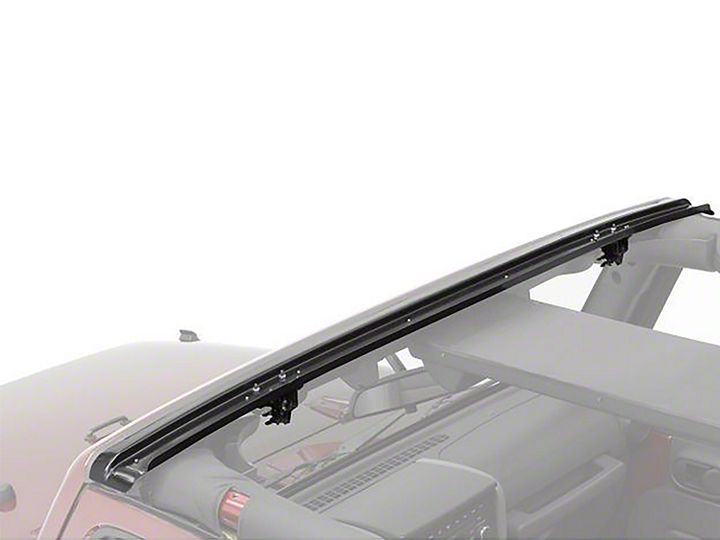

5. Place the Windshield Channel in position on top of the windshield and thread the knob and placement bracket onto the header bracket (Figure E).


6. Repeat on the other side.

7. Tighten both knobs down (Figure F).



Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 04/26/2018.
