Barricade 10,000 lb. Winch

Item U3146

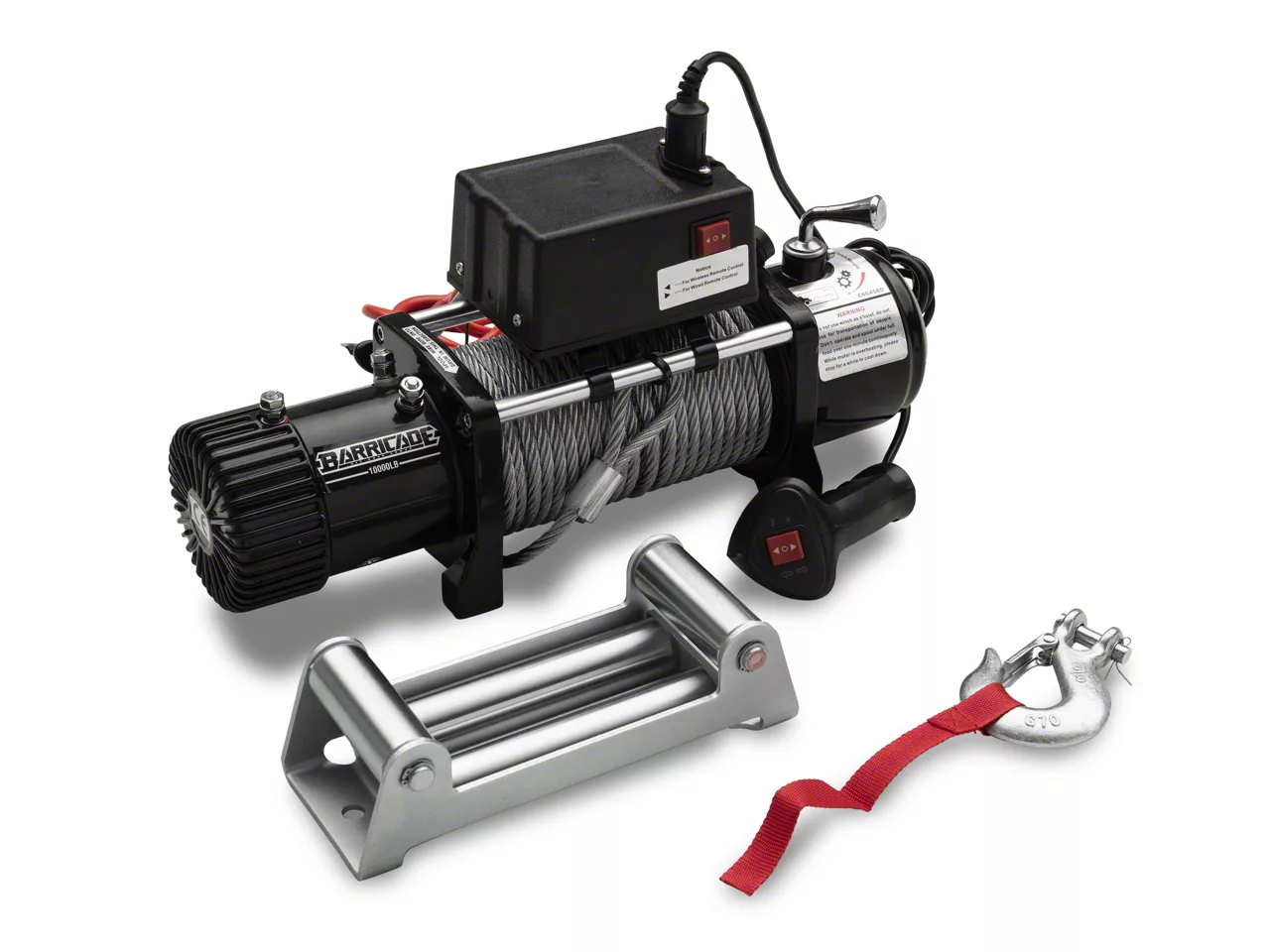

Barricade 10,000 lb. Winch
Call a Wrangler Enthusiast at 1-877-870-8556
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
2 Reviews
Market Price $422.99 You Save 14% ($58.00)
Our Price

$364.99 (kit)

FREE Shipping

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Frequently Bought Together

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • 10,000 lb. Single-Line Pulling Rating
      • 5.5 HP 12-Volt Series Wound Electric Motor
      • Three Stage Planetary Gear with 195.8:1 Gear Ratio
      • 94 Foot, 2-1/64 Inch Steel Braided Cable
      • Wired Remote Switch with 12 Foot Lead
      • Durable Black Powder Coat Finish
      • Hook, Roller Fairlead, and Power Lead are Included
      • Overall Dimensions: 21.1 × 6.3 × 8.6 Inches
      • Mounting Bolt Pattern: 254mm X 114.3mm
      • Weight: 79.4 Ponds
      • Universal Application for all Vehicles

      Description

      Be Prepared For a Recovery Situation. It doesn't matter if you are a novice or a serious off-roader, you should take a page out of the Scouts hand book and "be prepared" for what the trail might throw at you. That's why you should outfit your Wrangler with a reliable recovery system like Barricade Off-Road's 10,000 lb Winch. This Barricade Winch will help you to get out of the messiest situations.

      Heavy Duty 10,000 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.8:1 gear ratio, this Barricade Winch provides 10,000 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.

      Additional Features. This Barricade Off-Road 10,000 lb Winch features a 4-way roller fairlead that helps reduce wear and tear on the cable while keeping it from binding. This Barricade Winch also includes a wired remote control with a 12 foot lead allowing you to safely stand clear when in operation.

      Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1 × 6.3 × 8.6 inches and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.

      Application. This Barricade Off-Road 10,000lb Winch is designed for use on all Jeep Wrangler models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.

      Line Pull Speeds
      • 0 lbs. - 16.5 ft./min
      • 2000 lbs. - 13.68 ft./min
      • 4000 lbs. - 11.55 ft./min
      • 6000 lbs. - 8.9 ft./min
      • 9500 lbs. - 6.43 ft./min

      Technical Note. To prevent damage to the cable from the elements a winch cover is highly recommended when not in use.

      Fitment: 1987 1988 1989 1990 1991 1992 1993 1994 1995 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021

      Barricade U3146

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • 10,000lb winch
      • 94 foot Braided Steel Cable
      • Roller Fairlead
      • Remote Control Lead
      • Solenoid
      • Wiring Harness
      • Rope Hook
      • Red Line Flag
      • Hardware

      Tech Specs

      ManufacturerBarricade Off-RoadLine Capacity10,000lb
      Motor Specs5.5 hp, 12-volt series woundLine Type94ft Braided Steel Cable
      Gear System195.8:1, Planetary
