How to Install Baja Designs LED Dome Light w/ Switch - White (87-18 Wrangler YJ, TJ, JK & JL) on your Jeep Wrangler

Installation Time

60 minutes

Tools Required
  • 3mm Allen Wrench
  • Wiring Harness
Extreme Terrain
Shop Parts in this Guide

1. Layout all materials provided and make sure that the light, mount, and mounting hardware are all provided for the Baja Designs LED Dome Light w/Switch (Figure A).

2. Place the provided zip tie in the notch of the mount (Figure B).

3. Place the LED against the mount with the zip tie still in the notch and run one of the supplied bolts through the one side's hole (Figure C).

4. Thread the nut onto the back end (Figure D).

5. Screw the bolt in using a 3mm Allen wrench (Figure E).

6. Repeat Steps 3-5 on the other side (Figure F).

7. Run the negative (black) and positive (red) wires off the LED to a wiring harness (not provided).

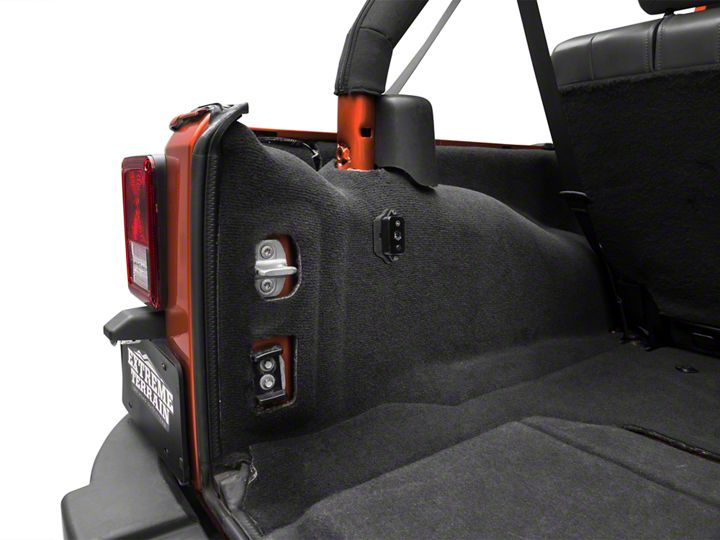

8. Mount the LED in the desired position using the zip tie (Figure G).

Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 06/21/2018.
