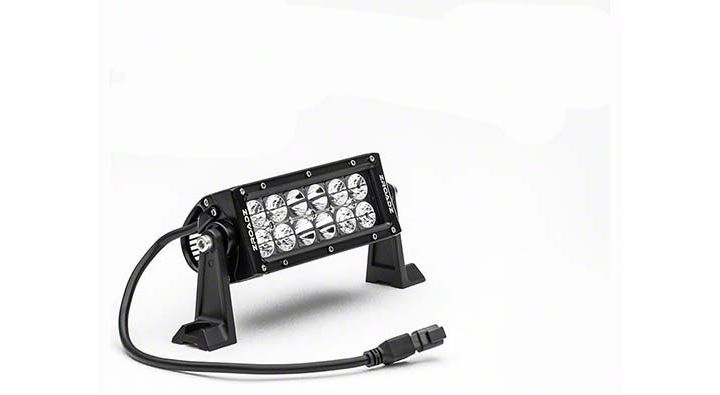

How to Install ZRoadz 6 in. Double Row Straight LED Light Bar - Spot Beam on your Jeep Wrangler

Installation Time

60 minutes

Tools Required
  • Pliers
  • Wiring Harness
  • Wrench
Extreme Terrain
Shop Parts in this Guide

1. Carefully open the package using pliers (Figure A) and ensure the hardware is included and undamaged.

2. Using a supplied Allen wrench and supplied bolts, attach the mounting arms to the light bar (Figure B).

3. Place a pad on each foot mount (Figure C).

4. Thread a supplied bolt through the mounting foot (Figure D).

5. Thread a supplied nut onto both bolts to connect the foot mounts of the light bar (Figure E). Then tighten using a wrench.

6. Run a wiring harness (not included) through to the light bar mounting location (Figure F).

7. Connect the light bar to the wiring harness.

Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 06/04/2018.
