Simple installation for anyone.
Features, Description, Reviews, Q&A, Specs & Installation

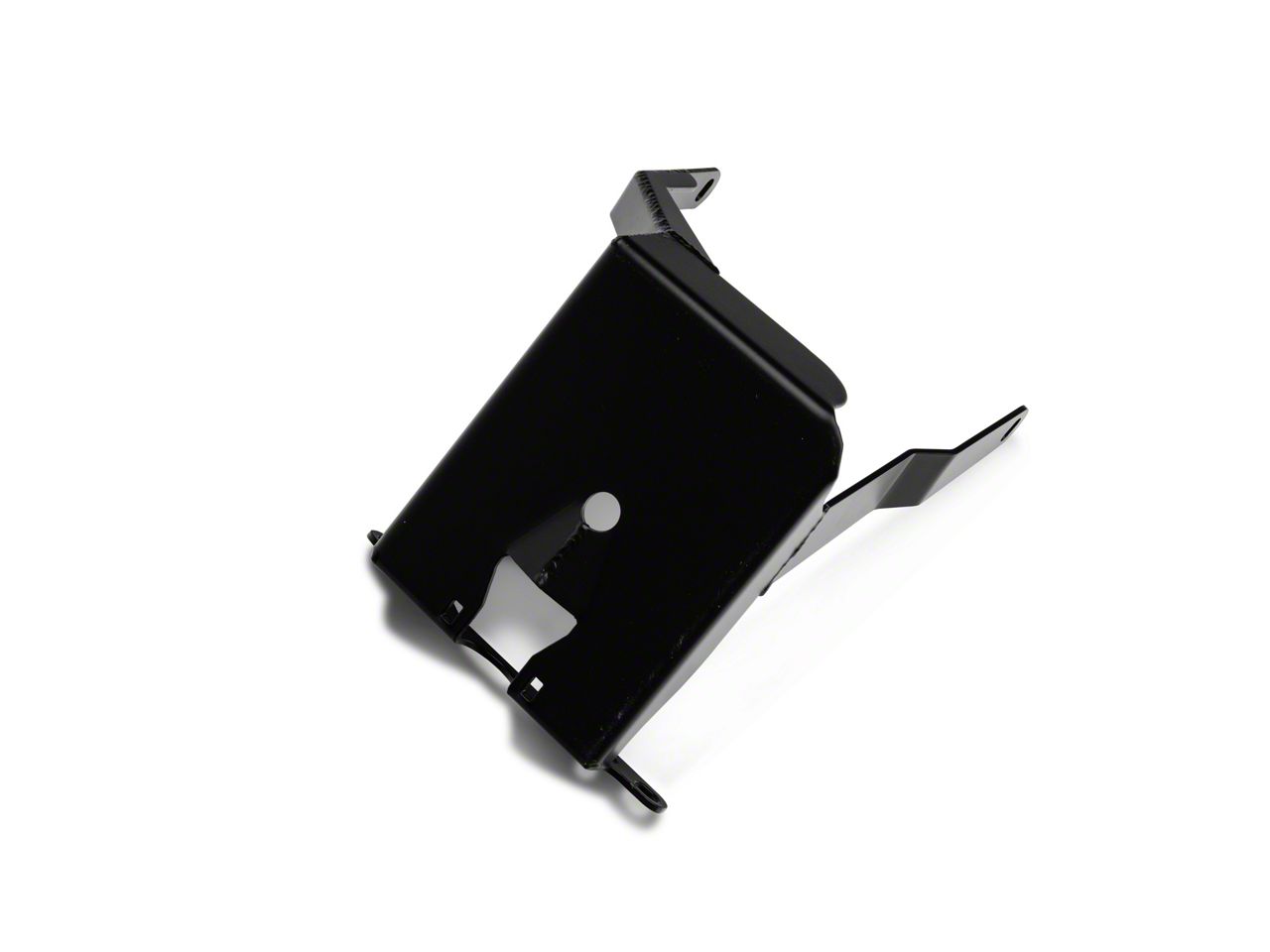

Construction. This oil pan skid plate from Teraflex is made from 3/16 inch thick steel and CNC laser cut to be a precise fit. This plate works with other Teraflex armor solutions, such as their transfer case skid plate. The black powder coat provides added durability and nearly eliminates the risk of rust and corrosion.
Protection. This plate protects your TJ's oil pan from damage dude to debris or rough terrain as you make your own path. Without oil, your engine would seize and leave you stranded with a costly list of repairs. Keep your engine safe with this Teraflex plate.
Accessories. Screws and other mounting equipment are included with this kit.
Application. This plate bolts onto any 1997 - 2006 Wrangler TJ with a 4.0L, 6 cylinder engine. Simply use the existing mounting points for a quick installation without the need for additional drilling.
Fitment: 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 Details
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Simple installation for anyone.
What's in the Box
November 29, 2019
After installing this product on my 2004 Wrangler TJ, I have three items future installers should consider. always read the instructions before starting and plan your attack before removing the first bolt. The kit is designed to fit a few different model years, therefore you will need to identify the correct hardware for your model year and you will have hardware left-over after the install. Play attention to the following: 1. shimming at the back mounting point of the transmission and flywheel shield. I had to add 1 washer between the mating surfaces to eliminate preloading the drop-down bracket 2. Upper attached bolts at engine block were too long therefore I had to add additional washers underneath the bolt head to ensure proper tightening. 3. Left hand upper engine block attach point impacts the transmission cooling lines, therefore be mindful to relocate or provide some form of anti-chafe, I used rubber hose of same inside diameter on the oil line to provide protection/eliminate contact with mounting bolt head to cooling tube. Fit was good, looks good and the oil pan drain plus aligns perfectly with the access point of Oil Pan Skid Plate. Took about 1.5 hrs. to install, jacked up the front end of jeep to provide better access under Jeep.Helpful (2)
October 02, 2019
oil pan skid plate
oil pan fit great ... installed great. nice productHelpful (1)
June 21, 2019
Feeling more secure!
The skid plate went in easily and the directions were enough to easily get the job done. Looks good and feel more secure about travelling more rugged roads.Helpful (1)
May 22, 2019
Highest quality and looks great!
The oil pan is very easy to install, works great and can take a beating, and is worth the money. Highly recommend to everyone!Helpful (1)
January 29, 2018
Awesome protection for my oil pan
It was easy to install had to clean out the bolt holes for the front other then that it was no problem installing by myself.Helpful (7)
December 23, 2017
Teraflex HD oil pan skid plate
15 minute install, looks great and heavy duty. Can't wait to get it out on a trail and try it out.Helpful (7)
November 18, 2017
Takes a beating!
This skid did it's job while on the rocks in Kentucky's Black Mountain area. Well designed and easy to install. Hardest part was cleaning out the mounting holes on the side of the engine block.Helpful (8)
October 13, 2017
Well built covers the oil pan easy to get the drain pan plug no need to take off to do an oil change all bolt holes matched up for a easy installment.Helpful (8)
July 18, 2017
I was very impressed with the build quality and instructions for this. Install went smoothly (although I was questionable why they didn't provide certain washers and nuts). I will be purchasing other teraflex skid plates to compliment it.Helpful (7)
April 18, 2017
Teraflex Oil Pan Skid
Well made heavy duty skid plate, bought along with trans skid.Helpful (7)
Can this be easily modified to fit a 1991 YJ with 4.0?
No, it cannot be modified to fit YJ models.
Can I add this to my LJ without having to add other teraflex stuff?
This is a direct bolt-on installation, no other components are needed.
Will this fit a 2000 tj 2.5L
This oil pan skid plate is designed for use with the 4.0 liter 6 cylindar TJ, it will not fit the 2.5-literengine.
