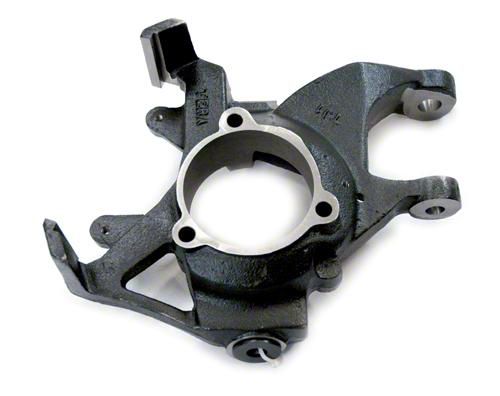

Teraflex High Steer Knuckle Kit (97-06 Jeep Wrangler TJ)

Item J11750
Call a Wrangler Enthusiast at 1-877-870-8556
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Market Price $515.99 You Save 11% ($55.00)
Our Price

$460.99

FREE Shipping

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
In Stock

Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • Designed for 4+ Inch Lift
      • Maximize Steering Component Ground Clearance
      • Tapered Inserts
      • Custom Tie Rod and Drag Link Required (sold separately)
      • Compatible with 15" Wheels w/ 3.5" or Less Backspacing
      • Fits 1997-2006 Jeep Wrangler TJ Models

      Description

      4+ Inches of Lift. The TeraFlex Dana 30 High Steer Knuckle replaces the outer knuckle on the passenger side with a new high steer knuckle. The knuckle features tapered inserts that make customizing easy by allowing the drag link (knuckle end) to enter from the top or the bottom of the steering arm. The tapered sleeves are available for the drag link to fit stock taper rod ends, or the large taper rod ends (standard Dana 60).

      Raise Position. This new one-piece High Steer Knuckle raises the steering arm position to correct the steering linkage geometry on TJ Wranglers with 4 or more inches of lift. In addition, this knuckle kit is designed to accommodate 15" wheels that have 3.5" or less backspacing.

      Application. This Teraflex High Steer Knuckle Kit is designed to fit 1997-2006 Jeep Wrangler TJ models equipped with a 4+ inch lift. Custom tie rod and drag link (available separately from TeraFlex) are required.

      Application Note: The stock OEM ends will not work in place of TeraFlex's stock-taper one ton end.

      Fitment: 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 Details

      MPN# 4828490

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      3.0

      Customer Reviews (1)

      Write a Review

      Ratings Summary

      3 out of 5 overall rating from 1 customers




      • October 03, 2017

        3 2001 Wrangler - WarrenC

        Nothing wrong with the part.

        the high steer knuckle kit is fine, but getting everything we needed to make it work was a different story. we had to place sever different orders to get it right.

        Helpful (16)

      Questions & Answers (3 answers)

      3 Top Rated Questions

      Can you use stock brake components? Or have to use new parts?

      • The Teraflex High Steer Knuckle Kit is capable of reusing your stock brake components.

      Helpful (0)

      Does this kit come with both knuckles?

      • The Teraflex High Steer Knuckle Kit will include both left and right steering knuckles.

      Helpful (0)

      do I need to change the drivers side knuckle ?

      • The Teraflex High Steer Knuckle Kit will come with everything required with the exception of a custom tie rod and drag link. These are available from Teraflex.

      Helpful (0)
      Post Your Question

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (1) Knuckle

      Tech Specs

      Will It Fit My Wrangler

      • TJ Rubicon 2 Door - 03, 04, 05, 06
      • TJ Rubicon Unlimited 2 Door - 05, 06
      • TJ Wrangler 2 Door - 97, 98, 99, 00, 01, 02, 03, 04, 05, 06
      • TJ Wrangler Unlimited 2 Door - 04, 05, 06
