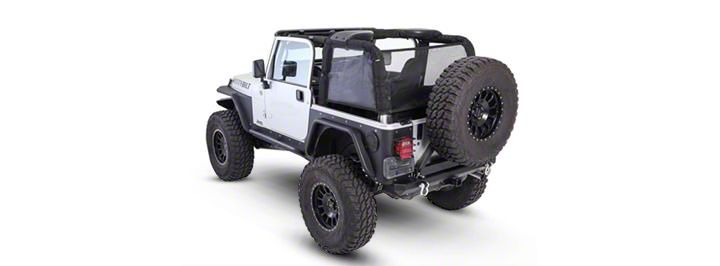

How to Install Smittybilt Cloak Mesh Sides & Rear (97-06 Wrangler TJ) on your Jeep Wrangler

Installation Time

60 minutes

Extreme Terrain
Shop Parts in this Guide

1. Before with either the soft top windows removed, or hardtop removed.


2. Locate the Driver side mesh side.


3. Locate the bag of bungee cords labeled for side windows.


4. Pull out 9 total bungee cords for the drivers side.


5. Push the bungee through the top eyelet.


6. Hang the side mesh panel by wrapping the bungee around the roll bar.


7. Do the corners next. Keeping the panel centered in the roll bar.


8. Complete the remaining inner eyelets.


9. Repeat for the passenger side.

10. Locate the rear mesh panel.


11. Locate the bag labeled for the rear window.


12. Locate the 8 bungees for the rear panel.


13. Start with the upper eyelets. Close the gap between the Brief top and mesh panel.


14. Wrap the bungee around the roll bar.


15. Insert the remaining bungees.


16. Installation complete.


Installation Instructions Written by ExtremeTerrain Customer T. Boyer 4/16/2018.
