(approx) 1 Hour
Simple installation for anyone.
- Customer Submitted:
- How to Install MBRP Exhaust System w/ Muffler Relocate on your Wrangler
$269.99 (each)FREE Shipping
I'm Ryan from extremeterrain.com and this is my review and installation of the MBRP Exhaust System with Muffler Relocate fitting all 2007 and up JKs. There are a few different versions of this system available. One for those of you with a 3.8 and another for those of you with a 3.6-liter engine. There is a different version for those of you with a two-door and the four-door, although if you do have the two-door, you are still going to have to do some trimming of one of the pipes. And finally, the system is available in an aluminized finish and also in aluminized metal that's covered in a high temperature black coating like this system that you see here.Today we're going to talk through the installation of this exhaust system which I give a very simple one out of three wrenches. This will bolt directly in place of that factory system and have a drastic impact on not only the sound and attitude of your Jeep but also of the looks. We're also going to talk about that sound, the lower exhaust note and additional exhaust volume that you can expect from the system. And finally, a few of the other features and the construction.These systems are known as high clearance systems or muffler relocate systems like this one is. And what they essentially do is take that big bulky muffler that's sitting right in the back of the Jeep just asking to be crushed on a rock or a stump and relocate it up into the area where those newer Wranglers have a resonator. So if you have a newer Wrangler, this is going to delete the resonator and put a much smaller bullet style muffler in its place and completely delete that rear muffler. What that gives you is a lot less piping and a lot less stuff to be crushed and damaged on the trail, all while producing that lower and louder exhaust note that we talked about.The system is made of aluminized steel which in the world of exhausts is one of the lower grades of material that you can get. However, this does come with a three-year rust through warranty and the black system is going to hold up better than the uncoated system because it has one more barrier of protection.These systems are made of 16 gauge two-and-a-half-inch mandrill bent pipe and what that means is there's a piece that goes on the inside and the outside of the pipe so that during the bending process, the pipe doesn't collapse causing a choking point. This allows the exhaust to be very, very free flowing.As I said before, the black system and the uncoated system are both made of aluminized steel which will hold up better to the elements than a mild steel but not quite as good as a 409 or 304 stainless system would. The coated system is going to be a little bit more expensive but again, it is going to hold up a little bit better and it will certainly give you some additional attitude. Something that makes this system a little bit different from some of the others is that it doesn't have an actual tip that you put over the top of the tail pipe. This is a baloney cut tailpipe that gives you an integrated tip look which I like. It's minimalist and especially in the black, I think it looks pretty good.Like I said before, the installation for the system is going to be a very simple one out of three wrenches. The only difficult part about this is going to be rust. Those of you who have worked on exhaust systems before know that they can get rusty and that can add some time to the install. So I would recommend spraying all of the bolts, clamps and even the hangers with a good penetrating oil well before you get started. It's going to pay dividends during the installation.After that, it's just a matter of removing your factory system which you'll do by removing all of the factory clams and hangers starting at the rear and working your way forward. After that, you can install your new system which you'll do starting at the front with an extension pipe. Then the muffler, then this piece here which is actually the piece that you're going to be trimming if you have a two-door. You will have to cut 20-and-a-half inches off of this pipe although I would recommend doing a few test fits. Not just going by the 20-and-a-half that's in the instructions. Test with the pipe and cut it exactly how you need it.And then finally, installing the rest of the over axle pipe with that integrated tip. Again, these are all going to fit right into your factory hangars making this system a very easy install. One thing that's a little bit different about this system and some of the others, like I said before, there are two different versions. One for those of you with a 3.8-liter and one for those of you with a newer 3.6-liter engine and the only difference is really where these front hangars are located. A lot of other manufacturers would just weld both hangers in place and sell the same system for both engines. MBRP doesn't do that. They give you the one hangar that's going to work for your year range but that does mean you need to make sure you're getting the exact system for your year of JK.So as far as tools, you won't need any specialty ones. A good penetrating oil and some hand tools to get this installed and as far as time goes, I would give yourself a little over an hour to get this installed. Especially if you have some rust on your Jeep. This system seems to be priced right in the middle of the road as far as muffler relocation or high clearance exhaust systems go. These systems are a little bit different than just an axle back that just replaces your muffler so, of course, they are a little bit more expensive than those. However, this is going to save you some money out of a 304 or a 409-stainless system. Being aluminized, again, it is considered to be a slightly lower grade material but this does have a three-year rust through warranty so it is going to hold up for a while.If you're looking to save a few dollars on your system and still get that lower exhaust note and that additional exhaust volume as well as the additional clearance that this provides, I think this is a good option. If you are willing to spend a little bit more and you want something that's going to hold up really well even longer, then maybe look at one of the stainless systems that are available.So whether you're looking to swap out your cat-back system on your Jeep because you want a lower exhaust note and some more exhaust volume or you're looking at this system because it provides some additional clearance for an off-road rig, this is going to be a really nice option that will give you the best of both sound and clearance.So that's my review of the MBRP Exhaust System with Muffler Relocate fitting all 2007 and up JKs that you can find right here at extremeterrain.com.
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation

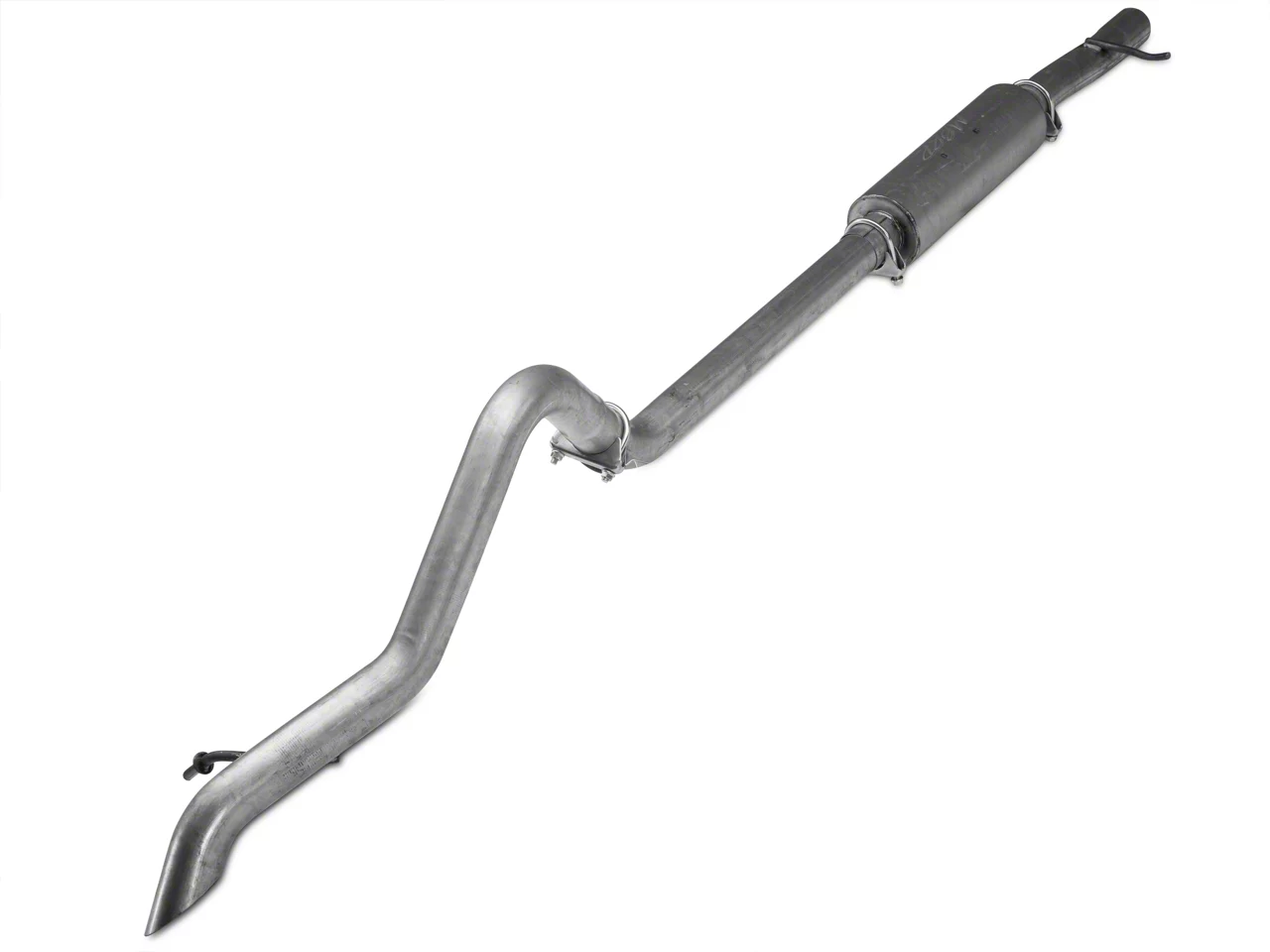

Construction. MBRP's installer series cat-back system is constructed out of 16 gauge, aluminized steel. The aluminized finish resists corrosion and acts well as a heat exchanger. This system is 2.5 inches in diameter and features Mandrel bends for optimal air flow. The welded hangars provide a strong and secure fit. The system comes with saddle clamps to assist installation.
MBRP designed this system for off-roaders. The muffler is relocated to behind the catalytic converter to increase your Jeep's ground clearance, and so you won't have to worry about damaging your new exhaust while navigating the trails.
Application. MBRP backs this system with a three year warranty. This system fits 2012-2018 JK Wranglers, both 2-door and 4-door models.
Fitment: 2012 2013 2014 2015 2016 2017 2018
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
March 06, 2020
Aggressive but not annoying loud but you will be able to hear it in the jeep . So if you don't like that then it's not for you!Helpful (0)
February 10, 2020
The exhaust sounds really good and was not too hard to install. Package was beaten up a bit but the exhaust was fine. Getting the stock exhaust off was the hardest part. used a long pivoting ratchet to get the rusty bolts off along with WD-40. The exhaust hangers were the hardest part. I found exhaust hanger removal pliers on Amazon for $20 and they are 100 worth the $20. I decided to paint the new exhaust with VHT paint so that took a few hours longer for the paint to dry. Installing the new exhaust took 5 minutes to put on and secure. Without painting, probably took 2 hours because of the stock exhaust.Helpful (2)
January 19, 2020
Good product. Very easy to install. Sounds a lot better than the stock system.Helpful (1)
December 21, 2019
The hardest part was removing the old exhaust. easy as 123 to install. great instructions. not needed only if you have a 2door JK. Cutting pipe to right measurements. easy bolt on after that.Helpful (2)
December 15, 2019
Cat back exhaust
Great exhaust note, barely any highway drone, easy to install, sounds way more aggressive than stock. Would recommend this to anybody who goes off-roading and doesn’t want a suitcase hanging under the car.Helpful (2)
December 15, 2019
The factory exhaust took some effort to get out. This kit bolts up quick and easy. Everything lines up perfect; and has good sound! Took me about an hour to get the factory exhaust out, and about 20 min to install this exhaust.Helpful (2)
November 18, 2019
pretty nice low tone, has a little bit of a cackle when returning to idle. it's probably louder than i anticipated. ~1,500–2,500 rpm are pretty noisy. someone else mentioned it sounding like a civic—it's lower pitch than that and sounds better, but i get where they're coming from with the volume. i'm starting to get used to it and enjoy playing with it somewhat, just trying to keep it quiet through the neighborhood is difficult and you're definitely more noticeable on the streets/highway.Helpful (2)
October 23, 2019
Went in easy and smooth ,took longer to get the old system out,sounds greatHelpful (2)
October 20, 2019
Easy install, sounds great! Took an afternoon to install, but nothing major needed as far as toolsHelpful (2)
October 06, 2019
Very nice sound
I really enjoy this muffler. It sound very nice. I can’t get over how easy it is to install. The pain was removing the old exhaust. I added exhaust space. I had three bolts break off. Once I removed them everything was easy peasy. I would recommend that you soak all the bolts to make it easy to remove the bolts. Over I am really pleased with the install and sound.Helpful (3)
Is this exhaust system entirely Stainless steel?
The exhaust system itself is constructed out of 16 gauge aluminized steel.
Will this system fit a 2014 4dr Sahara
I have a 2008 2 door. Will I need a heat shield for the Evap Canister?
I have a 3 inch zone off-road lift on my 2009 wrangler unlimited Sahara would I need an exhaust spacer?
No exhaust spacer is needed for 07-11 models.
I have a 2 dr JK and was wondering if the installation instructions tell me where to make my cuts if I have to?
The instructions provide a step by step on this process XT7SlotJ4Y
This cat back system will connect after the Y pipe and will not effect the down pipes or require cutting out the exhaust loop.
Yes, the MBRP Installer Series Cat-Back Exhaust w/ Muffler Relocate will still require an exhaust spacer.
Yes, the Black Series of the MBRP Installer Series Cat-Back Exhaust w/ Muffler Relocate can be found here: https://www.extremeterrain.com/mbrp-cat-back-single-rear-jk-s5530blk.html.
Thank you for your question! Yes, this Ca-Back exhaust will delete the resonator.
That is correct! With the MBRP Installer Series Cat-Back Exhaust w/ Muffler Relocate you will not need to shield your EVAP canister.
