(approx) 2 Hours
Light to Moderate mechanical skill required.
$152.99 (kit)FREE Shipping

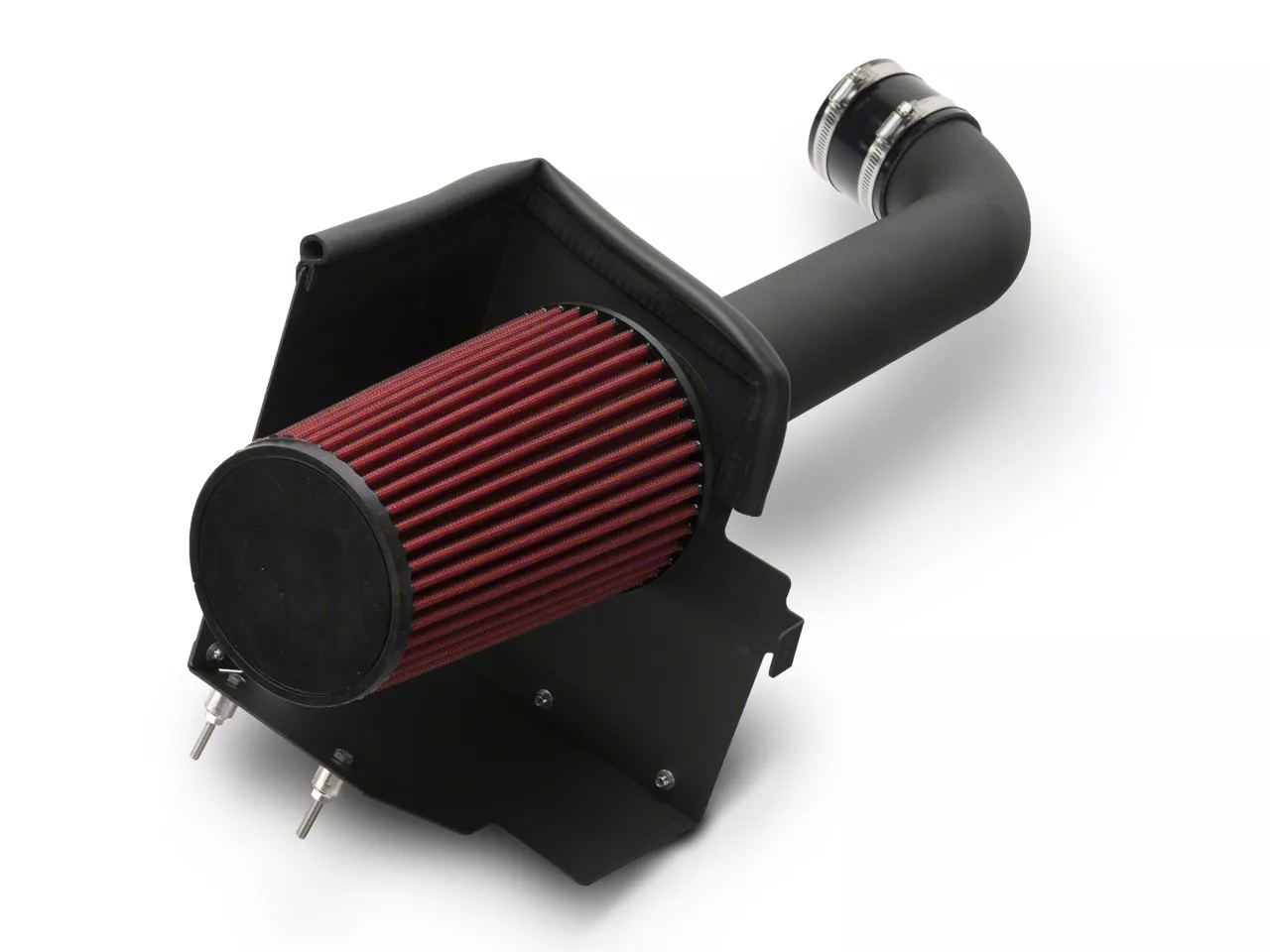

Hey, guys. So, today, I'm here with the RedRock 4x4 Cold Air Intake, fitting all 2012 to 2018 JK Wranglers with the 3.6 liter V6 engine. So, this is gonna be for the JK owners who are looking for a very easy and affordable way to upgrade to a cold air intake. Now, anytime you're opening up airflow, whether it be your intake or your exhaust, you're gonna see some performance gains in horsepower and torque. But I would keep in mind that those are gonna be in the higher RPM range. And for us Jeep owners, we don't spend a lot of time there. So, this is going to increase your throttle response, but you're really gonna feel it when you're in that higher RPM range, like when you're merging onto the highway, and you gotta give it a little bit of extra gas. So, when you're not in that higher RPM range, this is going to help you out with your MPG. Now, not only is it just going to improve your efficiency, it's also gonna give you a better sound underneath your hood and it's also gonna give you a better look and a more aggressive look underneath your hood. So, what I really like about this product is the simplicity of the design. So, you have your large conical filter here, it's gonna be high flow, getting all that cold air into your intake, but it's also gonna be oiled and reusable. So, it is going to last a very long time if you maintenance it. You also have this heat shield here that's going to keep all that hot engine bay air out and then you have your large intake tube with no fuss and no frill. And I do really like that about this system. What I would like to mention is that I would recommend this to somebody in a dryer climate. So, because the filter is so exposed, if you are in a wetter climate or you are looking to do some water foraging, I would stay away from this design. I would recommend taking a look at closed box options or any snorkel options. But if you are in a dryer climate and you're looking for a very easy way to upgrade your intake system, this is a perfect option. So, like I mentioned before, this is going to be very affordable at roughly $150. Now, like I said, this is a open box option. This only has a partial heat shield. So, other more expensive options that you may be taking a look at are usually going to have a full heat shield that will completely protect the filter. They may be closed box options or they may be for snorkel options. So because of the simplicity of the product, that's why it's going to be pretty cost-effective. However, that doesn't say anything about the performance. This is definitely gonna get the job done and it's gonna look really good while doing it. So, install is gonna be a two out of three wrenches on the difficulty meter. This probably will take you about two hours to get installed with some basic hand tools. So, speaking of the install, let's jump into that now. The tools that I used for my install were an impact wrench, quarter-inch drive ratchet, a 3-millimeter Allen key, an 8-millimeter, 10-millimeter, and 12-millimeter deep socket, a three-inch extension, a 10-millimeter and 7-millimeter open-ended wrench, a flathead screwdriver, a pair of pliers, and a pair of snips. So, our first step to this install is getting our engine cover out of the way. And this is just gonna be held in by a couple of grommets. So, we can pop this up and get this out of the way. So, what we're gonna do first before we unbolt anything is make sure we take off our PCV hose as well as our IAT sensor. So, your IAT sensor is go be right below the intake tube near the throttle body, all you gotta do is just press down the little tab, and it will unplug, we'll get that out of the way. Then we can move to our hose over here. All we have to do for this is just pull back on the intake and wiggle it off. Put that out of the way for right now. Then we can loosen up our clamp on the throttle body. So, our next step is to loosen up this clamp on the throttle body. I'm gonna be using an 8-millimeter deep socket and my impact to do it just because it's gonna be a little bit quicker, but you can also use a flathead screwdriver. Now, you don't need to completely take the clamp off, you just have to loosen it, and then we can pop this off of our throttle body. Just gonna leave that right there for now. So, your next step is gonna be to remove two bolts that are on the tabs on the front of your intake tube. Our clips underneath have broken from taking this off a bunch of times. So, you will need a 10-millimeter socket to remove those and then you need to remove this hose on the front. But after everything is disconnected, what we can do is grab the front and the back of our intake and we can go ahead and pop that out, considering the intake box is gonna be held in by grommets. So, before we go ahead and install our new cold air intake, I did want to sit it on the table next to the factory one and give you guys a little bit more information about this and what benefits that you're going to gain over the factory intake setup. Now, starting off, your factory intake is going to be a closed box design, which is perfect for somebody in a wetter climate because it provides a little bit more protection to that filter inside. However, this is going to be an open box design or this is just going to have a heat shield in comparison to your factory setup. So, this is going to seal to the hood, keeping all that hot engine bay air out. However, it's gonna be a little bit less protected, but allow you a lot of cold air to get in and straight to your throttle body and your intake manifold. So, this is going to have a high flow filter. It's going to be a pre-oiled filter, which is a big step up from your factory paper element. Your factory paper element, you're gonna have to change a number of times because you're not able to clean it over time. But with this, this is pre-oiled, you can clean it and then re-oil it, and use it for the lifespan of your Wrangler. Now, this is also gonna be made of an aluminum construction with a nice textured black powder coat finish. So, it's gonna give you a nice look underneath your hood, especially with the red filter. But this is going to allow a lot of heat dispersion underneath the hood with the aluminum construction. And it's also gonna have a straight-through design. So, if you can tell on our factory intake setup, you do have a resonator down at the bottom, which will trap some air and restrict a little bit of airflow. With this, you're not getting that so you are increasing your efficiency with this new cold air intake setup. And increasing that efficiency is also gonna increase those gains that you may be looking for. Now, this is also gonna come with everything that you need in order to install it. It's gonna come with all the seals and all of the clamps that are gonna be pretty high quality. So, enough about these two side by side on the table. Let's go ahead and set up our new one, so we can throw it in our Wrangler. So, before we can install our intake on our Wrangler, we do have to put it together and we're gonna start with the shield. So, there is a bottom part of the heat shield and the side. What we're gonna do is just stack this right on top of the bottom one here, line up the holes. And you're gonna have six screws, six flat washers, and six nuts here that we are going to connect this with. So, once you have all of your hardware in, what we can do is tighten that down. So, I'm gonna be using a 3-millimeter Allen key and a 7-millimeter wrench. What we can do now is install our seal. So, I'm gonna be starting with the upper seal. And all you have to do is just press that down over the metal. Make sure it just goes around that corner on the side. Can keep pressing down and then round this down to fold over the side. All right, so then we can put our seal where our tube and intake filter is gonna sit. It's gonna be the same process. And you may have to trim it. So, I'm gonna grab a pair of snips. So, once you get it seated in place, now we are ready to transfer over our IAT sensor. Now, we have to transfer over our intake air temperature sensor. So, we have a little tab here where this has to go over. We can lift it up. I'm just doing that with a flathead screwdriver. Give it a little help and then we can twist it off. So you just wiggle it out. Then we can transfer it over to our new intake tube. There is gonna be a pre-installed grommet on your intake tube. And what we can do is just take our IAT sensor and just kind of twist it down. So, you wanna make sure that the sensor is sitting with this tab facing forward. If you're looking at the intake tube like this, this little tab is gonna be facing down, but you really wanna make sure that this is facing forward towards the intake tube. So, before we can put our heat shield down on in into our engine bay, we do have to remove these two grommets down here, as well as this 8-millimeter bolt in the fan shroud. So, I'm gonna use an 8-millimeter deep socket and a quarter-inch drive ratchet to remove this. And this is gonna hold in part of our heat shield. So, you wanna make sure that we hold on to this bolt because we will need it, then we can grab a pair of pliers or you could use your fingers, and we can remove these two grommets down at the bottom here. So, I just grabbed a pair of pliers because it might be a little bit easier. Just going to pull up on those. So, now what we can do is install our grommets with our provided bolts and all of our hardware on to our heat shield. So, I'm going to use the smaller flat washer provided. We're gonna put that through our heat shield. Grab our spacer, then what we can do is put on our grommet. And then last but not least, we have a larger flat washer and a nut that we can screw onto the back of that fold. So, this is gonna make sure that our heat shield is spaced correctly, and also that we can reuse our grommets to push it down on in. So, I'm just gonna get this hand tight. You can give it a little bit of a tighten with a 10-millimeter socket and wrench. You just don't wanna squeeze the grommet too much and then we can do the same thing for the other hole over on the other side. So, we can take our long bolt, small flat washer, send that through, grab our spacer, grab our grommet, large flat washer, and then the flange nut. All right. Now, we're ready to pop in our heat shield. So, now we can grab our heat shield and line up the tab with where we took out that fan shroud bolt, line up our two grommets, and we can give them a good press. So, once the grommets are popped into place, what we can do is line up this tab with our shroud. We can take our 8-millimeter socket and tighten this down into place. So, now we can install our bushing mount. So, we're gonna keep the bushing on the outer side of the heat shield. And we can put on a flat washer and thread on our flange nut here. So, once that's on there, we can tighten that down with a 12-milliliter socket. Now we can install our intake tube. So, what I did was put the silicone coupler down at the end with our two clamps, just to get it ready for when we have to install it on our throttle body. But there is gonna be a tab down at the bottom of the intake tube on the heat shield side and that's what's gonna sit on this bushing mount. So, we are going to position this with our bolt. We're gonna put our seal on our throttle body here. So, now that our intake tube is sitting on that bushing mount it may be difficult to see, but grab your flat washer and your flange nut, and we can secure that down. We can tighten it back up with that 12-millimeter socket. After that's tightened up, we can install our intake filter. Now we can install our filter, making sure that we have our clamp on. We can wiggle that on to our intake tube, make sure that it butts up against the heat shield. Then what I'm gonna do is tighten this up with my 8-millimeter socket and my impact wrench. You could also use a flathead screwdriver. Now, we can move back and attach our clamp on our PCV hose. So, you do get a clamp provided in the kit. We're gonna slide that on to our hose, slide that on to our intake, and tighten down that hose clamp using the same 8-millimeter socket. When tightening these down, I would recommend to keep them in pretty convenient location, just in case you have to take them off in the future. All right, and we can move up to our throttle body. Now we can go ahead and tighten up our hose clamp, making sure that you have a good grip on...or a good space on your intake tube and your throttle body. I'm gonna be using the same 8-millimeter socket. Then we can plug in or IAT sensor down at the bottom. So, the last thing that we have to do is attach our coolant hose to our provided clamps. Now, like I told you guys, ours are stripped out, but I still grabbed a bolt off of another JK to show you how these attach. So, you are gonna grab your clamp. This is pretty easy to manipulate, so you can just pull it apart, put the hose into place, crimp it back down, and then you can place it over that mount on your shroud. Grab the factory bolt and then you can put that down on through. Now, obviously, when you tighten it down with the 10-millimeter socket, it will completely clampdown. But like I said, underneath here, it is stripped out on our JK, but this is how it's going to basically attach. So, same thing for the other side. You can just open up that clamp, squeeze that on down, put that on top, and grab your bolt, and bolt that into place. So, before you go ahead and close up your hood, make sure that you pop your engine cover back into place. All right, and once that's sitting flat, then you're all set to go. So, that's gonna wrap it up for my review and install. Make sure you like and subscribe. And for more videos and products like this, always keep it right here at extremeterrain.com.
Fitment: 2012 2013 2014 2015 2016 2017 2018 Details
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
(approx) 2 Hours
Light to Moderate mechanical skill required.
CA Smog Legal Aside from it "Passing" smog check does this kit come with the more important STICKER saying it is approved for use in CA?
Hello, unfortunately the RedRock 4x4 Cold Air Intake Kit - Black Wrinkle Coating (12-17 Wrangler JK) does not have a CARB #, therefor not being legal for use in CA.
1 - I'd just installed my new air intake and I would like to know if i have to oil it ? 2- Need some washing tips for it to , first time that kind of air intake . Thanks Mitch
The filter on the RedRock 4x4 Cold Air Intake Kit will come pre-oiled. At your normal filter replacement interval the filter should be removed, cleaned and re-oiled. Any filter recharge kit, such as the K&N Filter recharge kit would work.
I have been doing research on which CAI to buy and I have read that it is common for the check engine light to come on. Will this CAI cause my check engine light to come on? 2015 WRANGLER
Check engine lights coming on after the installation of a cold air intake are usually attributed to installation errors or a retune being required but not completed. Unlike other cold air intakes on the market for the 3.6L V6 Wranglers, this RedRock 4x4 CAI does not require a computer re-tune and is engineered to work with the factory tune on the Wrangler.
How easy is it to order a second RedRock air filter? and does Extreme Terrain carry them in stock?
While we do not offer replacement air filters for the RedRock 4x4 Cold Air Intakes, any universal replacement filter with a4" connection that is 9" long with a 5" diameter will work with the cold air intake.
How do you clean the filter when it gets dirty? What products will I need to clean it? And how often do I need to clean it?
Thank you for your question! To clean an oiled filter you will need a refresh/recharge kit. I listed an option that we offer down below. Depending on your usage, a filter should be cleaned every 30-45K miles. https://www.extremeterrain.com/flowmaster-cold-airtake-filter-refresh-kit-8717-yj-tj-jk.html
That description applies to California vehicles only, as it is not CARB legal. This intake can be used for everyday on-road driving.
This will come with a Red Rock 4x4 Filter and not a K&N filter.
Thank you for your question! Unfortunately we do not know all the emissions standards for every state. If you are worried about passing emissions or inspection we would suggest reaching out to you inspection station directly.
Hello, any air filter oil and cleaning kit should do the job just fine. Unfortunately we do not offer any oiling/cleaning kits, but I recommend K&N Recharge Kit considering it is very common. Also, the most common mileage for refreshing your air filter is 25K-30K miles.
The replacement filter can be found here: https://www.extremeterrain.com/redrock-4x4-jeep-wrangler-replacement-air-filter-j130832.html
This will be a 3" tube.
This Cold Air Intake has one filter. Feel free to check out the video and the installation guide for any install questions you may have. https://www.extremeterrain.com/redrock-4x4-cai-jk-j100285-manu-install.html
Unfortunately we do not currently offer the filter separately.
January 16, 2020
Easy install/extra horsepower
I don't know about MPG's yet, but def a lot more power. RecommendedHelpful (0)
January 15, 2020
Could definitely feel the difference after i installed this product. Gained on power and gas mileage.Helpful (1)
January 13, 2020
Great install and easy to do. i made two changes due to my needs but i am completely satisfied. I cutoff and reused the factory overflow clamps, looks better and is functional. and i had to notch for the radiator to keep it off one of the hoses. But still a great bargain.Helpful (1)
January 12, 2020
Very easy install. Took about an hour and I also added the throttle body spacer at the same time. So far so good.Helpful (1)
January 09, 2020
2014 Rubicon install
Not quite as easy as video - but still not difficult. Replaced the stock air box on a 2014 Rubicon. Removal of old box and HW was very easy the challenge came in trying to get the new air box shield and the newly attached grommets to fit back down into the holes. Finally after much cursing I removed the nut and washer holding the grommet down and attached from below. Not a lot of room to get hands on nut but worked just fine. Next challenge was getting the silicon sleeve onto the throttle body, Took a little more twisting than I expected. All in all everything fit together nicely (good job RedRock). Looks great and sounds even better. Way too early to tell if there were any mileage or performance gains. Not going to hold my breath and expect too much. Highly recommend - looks as good as the KandN 77 that a friend put on this week. And it's a heck of a lot cheaper.Helpful (2)
January 07, 2020
Great Value for the price
Installed it on a Sunday afternoon and it took less than 2 hours. The Directions are just OK, but the online videos are great. There are a few quirky things to the install. One being the rubber gasket. It is a challenge to get over corner. I most likely will cut it to make it fit better. The deep throaty sound is great. The acceleration response is noticeable throughout, but especially when accelerating on highway to pass or change lanes. Still on first full tank of fuel so mileage still TBD. Great value for price.Helpful (2)
January 06, 2020
Installed this cold air intake about 2 weeks ago. The power gain was noticeable and fuel mileage improved also. There is a nice growl when at WOT . Hills that I had to downshift for I now conquer in 6th gear. I will recommend this upgrade to all my friends and family who drive Jeep JK's.Helpful (2)
January 06, 2020
Great value intake system.
Easy to install, fits well, nice large filter element. Not sure about horsepower gain, but sounds good.Helpful (1)
December 30, 2019Helpful (1)
November 28, 2019
2011 jk wtanglet
Easy install, 20 minutes, seems to add a little pep, 35in tires with manual, so not sure about mileage yet but you can hear it breath a little better, sounds greatHelpful (1)
November 25, 2019
In jeep world, you live for products like these...where you hear and feel the performance gainz and most importantly, the install is as straight forward as its described...Big s/out to RedRock on another great prod.... (note: take extra care when removing the air sensor as its fragile). Looking forward to a few more mods for the Holidays 2019 for my 89 YJ - [Miss Simplicity] and my 2017 JKU - [Great White]Helpful (3)
November 11, 2019
I can breathe
This forced air flow filter gives the air that the engine needs with a little rumble sound as a bonus!Helpful (0)
November 07, 2019
Excellent sound when hammered on
This intake system has an excellent sound to it when you hammer on it, Neighbors thought we put a V8 in it. I highly recommend, ive had other brands in other vehicles amnd never sounded this good!!Helpful (0)
November 06, 2019
Great for value
good quality, easy installation except length of main tube [maybe to fit most of models]Helpful (0)
November 04, 2019
Took me longer to take the factory system out. I couldn’t believe the quality of all the disparate pieces. Everything was metal (no plastic). Shocked for a system at this price. Can hear an audible difference when you step on the accelerator. I’ve got 35’s on my setup so I’m not ready to commit to noticeable power gains. That said, I enjoy the aggressive sound. This thing is solid and looks great in my super clean setup.Helpful (1)
November 04, 2019
Easy install and good sound improvement. As for mileage and power I am not so sure about those but I was not expecting much there. Good long life filter and parts seem to be good quality.Helpful (0)
October 28, 2019
Great little upgrade!
This was a great upgrade, a quick and cheap way to add an extra MPG as well.asam extra HP or two I highly recommend.Helpful (1)
October 27, 2019
Love it take 40 minutes to set up Very happy with the new toyHelpful (0)
October 24, 2019
Very nice product
Great product for the price, has to grind the tabs where it bolts to radiator to fit better.Helpful (0)
October 21, 2019
Lots of pros-one big con
Easy install, looks great, you do get an extra throaty sound coming from the engine bay when you accelerate hard, which I like. However, at cruising speeds, where the throttle is barely being pressed, there is a loud high pitched sound. I believe it sounds like air being sucked in. I can not duplicate while in park, but can duplicate with the throttle while moving endlessly. The sound is very noticeable with doors off and quite honestly sounds like brakes screeching. I put the old intake back on and it eliminated it. I tried to verify installation twice more and looked over everything. I couldn’t get it to stop. I will be returning.Helpful (1)
