How to Install Drake Off Road Fire Extinguisher Mount on your Jeep Wrangler

1. Place the fire extinguisher in the correct orientation for your mounting location.

2. Using the 2 ¾” hose clamp tighten down the fire extinguisher.

3. Both clamps installed.

4. I chose to install it between the front seats on the top roll bar.

5. Using the Drake Off Road Fire Extinguisher Mount Clamps – Small Item J102670.

6. Use a 11 mm socket to snug up the clamp to hold the mount in place .

7. After snugging the first clamp with the correct orientation, install the 2nd clamp.

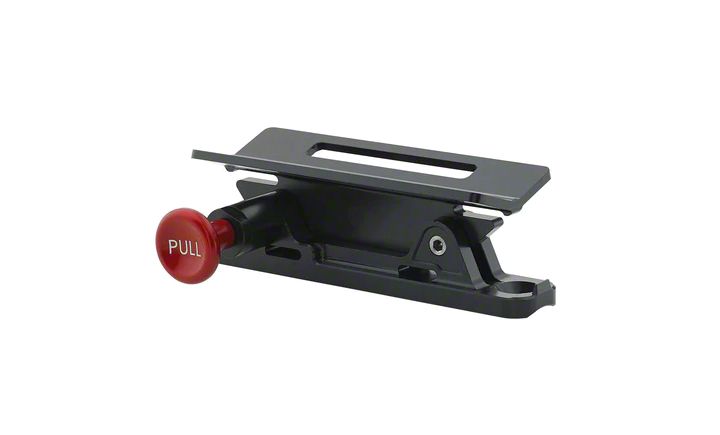

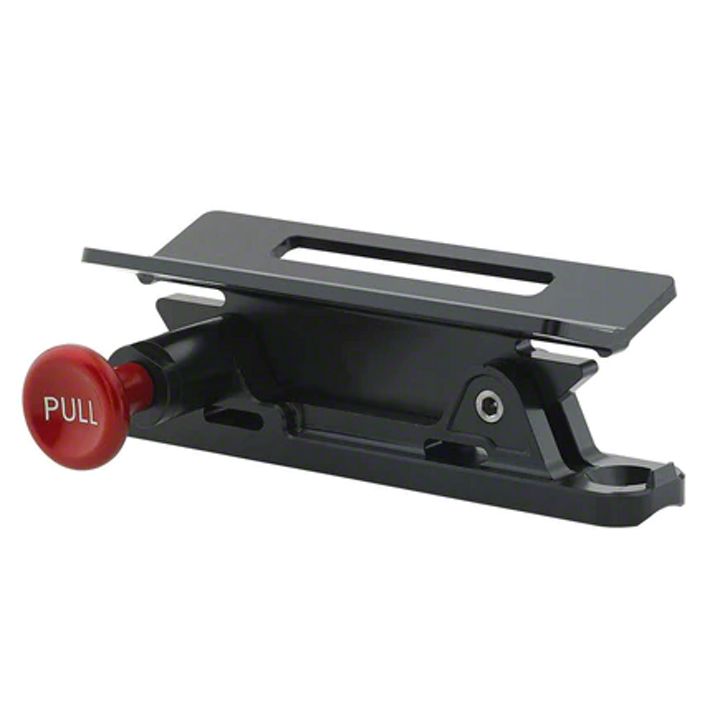

8. Pull the red knob to release the fire extinguisher.

9. Slide the rear in first then the front will snap in.

10. Installation complete.

Installation Instructions Written by ExtremeTerrain Customer T. Boyer 4/16/2018.
