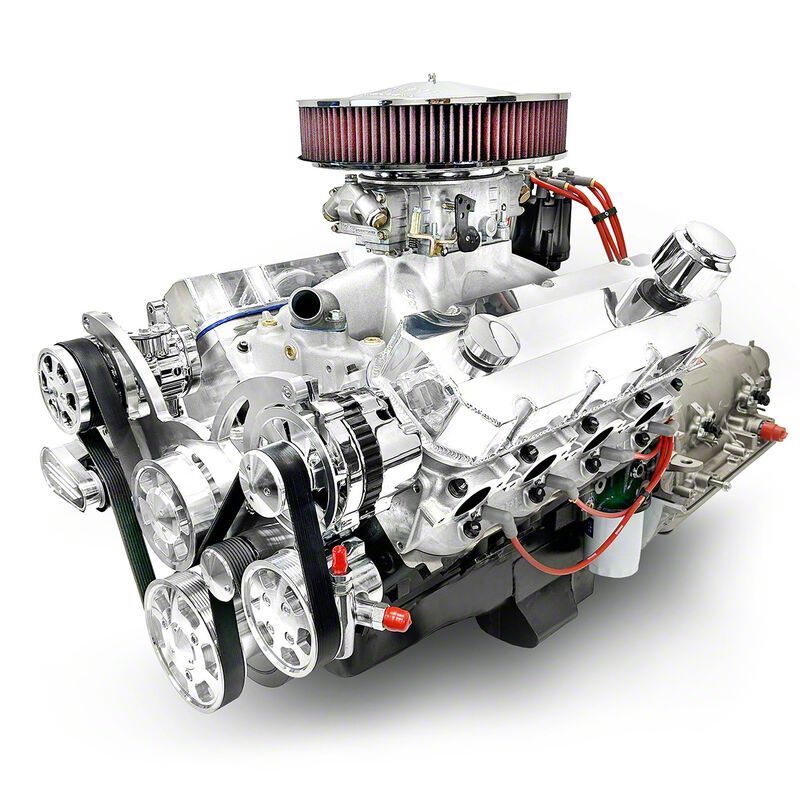

BluePrint Engines Standard Edition Builder Series Big Block Chevy 598 C.I. 741 HP Carbureted Crate Engine and 4L80E Automatic Transmission with Polished Pulley Kit
Item U19343-XT
Our Price
$26,699.00
Military, Medical & First Responders
$1,334.95 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- 741 Horsepower / 703 Ft. Lbs. Torque
- BluePrint Engines Aluminum Cylinder Heads
- Compression Ratio 10.5:1
- Hydraulic Roller Camshaft With .647 Intake / .647 Exhaust Lift And 258 Intake / 266 Exhaust Duration @.050–112 Lsa
- Forged Pistons
- Forged Crankshaft With 4.500 Inch Stroke And Forged 6.480 Inch Rods
- Fuel Recommendation 91 Plus Octane Approved
- BluePrint Engines High Strength Cast Iron Block
- Manufactured And Machined In The USA
- Mechanical Fuel Pump Provision
- One Piece Rear Main Seal
- Standard Deck Height
- Four Bolt Main Caps
- 4.600 Inch Bore
- BluePrint Forged Crankshaft Internally Balanced Front And Rear
- BluePrint Aluminum Cylinder Heads 119cc Chamber, 2.30 Inch Intake / 1.88 Inch Exhaust Valves, 358cc Intake / 125cc Exhaust Runners, .300 Inch Raised Exhaust Port
- Pro Series Ready Run Distributor Included
- Thermostat And Thermostat Housing Included
- Harmonic Balancer Internally Balanced Included
- 1250cfm Holley Carburetor Included
- Spark Plugs And Wires Included
- Electric Fuel Pump Included
- Intake Manifold Included
- Timing Cover Included
- Valve Covers Included
- Oil Pan Included
- Polished Pulley Kit With Reverse Rotation Short Water Pump, One Wire 140 Amp Alternator, Peanut Style Air Conditioning Compressor, Type II Power Steering Pump With Remote Reservoir
- Complete 4L80E Automatic Transmission Package With Electronic Controller, Lockup Capability, 3800 Plus Stall Torque Converter, Flex Plate, Starter
- 4L80E Gear Ratios: 1st 2.482, 2nd 1.482, 3rd 1.00, 4th 0.750, Reverse 2.077
- Fits Standard Deck Big Block Chevy Applications Where 396 Or 454 C.I. Motors Are Being Replaced Or Upgraded Without Need For Deck Modification
Description
Powerful Big Block Engine. The BluePrint Engines Standard Edition Builder Series Big Block Chevy 598 C.I. 741 HP Carbureted Crate Engine combined with a 4L80E Automatic Transmission and Polished Pulley Kit offers high-performance power and torque for muscle car enthusiasts and professional builders. This complete package includes a robust 598 cubic inch big block engine and a matched heavy-duty 4L80E transmission, ideal for delivering reliable street or strip power in compatible Big Block Chevy chassis. Its carbureted setup ensures straightforward tuning and maintenance.
Construction and Appearance. This engine features a high-strength cast iron block and forged internal components such as a crankshaft, pistons, and connecting rods for durability. The aluminum cylinder heads have detailed chamber and valve specifications for improved flow and performance and the exterior is finished with a polished pulley kit, adding a professional and clean appearance. The package is assembled and machined in the USA with attention to detail, including internally balanced rotating assemblies for smooth operation.
Installation. Installation is designed to be straightforward for those replacing existing standard deck Big Block Chevy engines such as the 396 or 454, requiring no deck height modifications. Some minor adjustments to front accessory drive fittings may be necessary depending on vehicle specifics, but no major fabrication or drilling is generally required.
Warranty. This engine and transmission package is backed by a 30-month or 50,000-mile transferable warranty covering parts and labor, offering confidence and peace of mind to the buyer.
Application. This engine fits standard deck Big Block Chevy applications where the user is upgrading from or replacing 396 or 454 cubic inch engines. It bolts directly into place without requiring changes to deck height, making it an excellent power upgrade for classic muscle cars and trucks configured for GM big block compatibility.
BluePrint Engines B598K4L8
