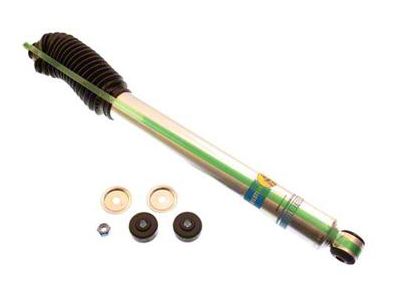

Bilstein 5100 Series Front Shock for 3.5-5 in. Long Arm Lift (07-17 Wrangler JK)

Market Price $93.12 You Save 17% ($16.13)
On Sale

$76.99 (each)

FREE Shipping
  • Item J21001
  • MPN# 24-186872

In Stock Ships same business day. Choose options to add to cart

Features, Video & Details

  • Monotube Front Shock
  • For Use with 3.5-5 Inch Long Arm Kits
  • Deflecting Disc Valving
  • Zinc Plated Finish
  • Made in the USA
  • Limited Lifetime Warranty
  • For Use on 2007 - 2017 JK Jeep Wranglers

Review & Installation Video

Review & Install Video

I'm Ryan from extremeterrain.com, and this is my review of the Bilstein 5100 Series Shock, fitting all 2007 and up JKs. These shocks are available individually, so you'll purchase a pair for the front or the rear. Or if you need all four, of course, you can get those. You can also get them in a kit of all four if you choose to go that direction. These are also available for a few different lift sizes, from 1.5 to 3 inches, and 3.5 to 5 inches. So make sure you get the right ones for your lift kit. Today, we're gonna talk through the installation of these shocks, which is a very, very simple one out of three wrench install. As with most shocks, these are going to bolt directly in place of your factory shock, and the installation shouldn't take you more than a half hour per shock. But we'll talk more about the installation in just a second. We're also gonna talk about the construction and a few of the features of these shocks. There are a few different reasons to get a new set of shocks on your Jeep. Either you've purchased a lift kit that doesn't have shocks and you're looking at these as the shocks you're going to run with that lift, or you purchased a lift that has shocks and you want shocks that give you a different ride quality, or the shocks you currently have are worn out. Regardless of the reason, a Bilstein 5100 Series shock is going to be a really nice option to install if you're looking for a shock that rides a little bit on the stiffer side of things but is very well-built and is going to last a good, long time. Now, in the world of shocks, there are hydraulic shocks and there are nitrogen shocks. And the 5100 Series is a nitrogen-charged shock. So all shocks have liquid inside of them, and when you work that liquid very hard, then you can get some foaming and some cavitation, causing shock fade. The nitrogen charged inside of the shock is there to eliminate that foaming and cavitation, ensuring that you don't get that fade. Now, the vast majority of us aren't working a shock hard enough to have it foam up and cavitate. We're not doing high-speed desert racing, we're not riding over washboards. However, if you want that protection against foaming and cavitation, a nitrogen shock is going to be a nice option for you. However, because of the charge inside of a nitro shock, they generally ride a little bit stiffer than a hydraulic shock. Now, the vast majority of the ride quality that you'll get from a shock is in the valving, however, again, in general, a nitro shock will ride a little bit stiffer. And the 5100s are known for being a bit of a stiffer shock. Now, the benefit to that is getting rid of some of the body roll if you do have a larger lift on your Jeep. However, the downside can be a little bit of a rougher ride. So it's something you have to weigh out and figure out what sort of ride you want on your Jeep and what sort of handling characteristics. In general, the Bilstein shocks, again, are known to be a very high-quality brand. They're not going to be quite as expensive as a Fox shock or a King shock, however, they are going to be in the mid to upper end of both the price range and the quality range. This is going to be a mono-tubed shock with digressive valving, and it is built to last. Any way you look at it, no matter how you're using your Jeep, the shocks do take a beating and you wanna make sure you're getting something that isn't going to blow out, the seals aren't going to blow out, you're not going to bend the piston rod. It's just going to be something that is going to last you a good long time, and that's what you're going to get with a Bilstein shock. These shocks include the dust boot with them that you can run. There are arguments in both directions with the dust boot. Some say that it keeps junk out of this area of the shock, keeping it clean so that those seals hold up a lot better. Others will say, once you get stuff in there, which you definitely will, that you can't get it out as easily because of the boot. Normal road wash, rain, or even hitting it with a hose doesn't clean that area off. So, again, two schools of thought. You can decide whether you wanna run a dust boot on your shocks or not. As far as this install goes, again, I'm giving it a very simple one out of three wrenches. You're gonna be able to install a shock every half hour or even a little bit less, depending on how much rust you have on your JK. Now, the first step is definitely spraying all of your shocks bolts with a good penetrating oil, especially the front upper shock nuts. That is, in my experience, the most difficult part to get disassembled when you're swapping out the shocks on your Jeep. There's not a lot of room in that area. If you do have a lot of rust, you can't really get a socket on there. Oftentimes, we end up just breaking the top of the shock off if there is a lot of rust, which is fine because you're replacing the shock anyway, but it's just not the easiest area to get to. So, definitely spray those with a good penetrating oil well before you get started. After that, it's really just a matter of disconnecting the lower shock bolt and the upper shock nut up front, removing that factory shock or aftermarket shock, and assembling the new one. This comes with all of the rubber bushings and the nut that go up on the top. In the rear, it's pretty much the same story, one bolt on the bottom, two bolts up top that hold the bar pin in place. Just make sure, again, that you spray everything with a good penetrating oil. You don't want it to strip or break off those upper shock bolts in the rear because they can be a little bit difficult to repair if that happens. All in all, you're just gonna need your traditional hand tools and a little bit of time. This is gonna be an easy install that anyone can do in their driveway. Bilstein does have a good name in shocks and you are getting a very high-quality and well-built shock when you purchase the 5100 Series. So I think that they are priced appropriately. Again, they're in that mid to upper-mid range of both price and quality, so the cost does match the quality here. You're not purchasing an adjustable shock, you're not purchasing a shock with an external reservoir, which are a couple of things that can increase the cost of a shock. You're also not buying a King shock or a Fox shock or one of those companies that really command a much higher price for any of the higher build quality and for even more R&D that goes into the shocks. Here you're going to be at a little bit lower of a price range but still get something that's very high quality and is built to last. So whether you're swapping out your shocks because your current ones are worn out, blown or bent, or you're just looking to get a little bit of a different handling characteristic or a different ride quality characteristic, the 5100 Series are a very nice option. So that's my review of the Bilstein 5100 Series Shock, fitting all 2007 and up JKs that you can find right here at extremeterrain.com.

Sizing. The Bilstein 5100 Series Shock Absorber has a collapsed length of 16.41 inches, an extended length of 27.56 inches, and a travel length of 11.15 inches. The lower mount eye is 12.1 millimeters and the upper mount is a steam. The shaft diameter is 14 millimeters and the body design is 46 millimeter non-coil over ID smooth body.

Properties. This is a monotube gas pressure shock with a high flow piston that reduces piston harshness. The single tube high gas design ensures fade-free performance and increased longevity, while the larger piston area makes exact tamping possible. You will get great control off the road, comfort on the road, and a perfect fit for Jeeps with bigger aftermarket tires and OE factory mounting configurations.

Notable Features. Bilstein is well known as one of the most technology advanced makers of Jeep parts. Their latest technology is all over this part. The high quality specifications ensure you will be using it for years to come. The self-adjusting deflecting disc valving helps this shock to reach max performance. The independent rebound and compression tuning further the excellent construction of this part.

Application. This front shock fits 2007 - 2017 JK Wranglers equipped with 3.5-5 inch long arm lift kits.

Fitment: 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 Details

What's in the Box
  • (1) Shock
  • (1) Shock boot
Installation Info
Will it fit my Wrangler?
  • JK - 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17
  • JK Unlimited - 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17
  • JK Rubicon - 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17

Most Helpful Reviews

5/5
Awesome Purchase!

I installed these Bilstein 5100 shocks on my 2015 Wrangler JKU when I did my 3.5 inch rock krawler lift. These shocks help make the Jeep's ride feel better than stock. They also look pretty good seeing ...

Read More
Helpful (1)

5/5
Rides great

Swapped out the previous RC shocks that came on the lift kit put on by the previous owner. Immediately the ride was better than the stiffer RC's.

Helpful (0)

Overall Rating 5 out of 5 stars
Read All 2 Reviews

Customer Photos

You Might Also Like

Q & A

No questions about this product yet.

Ask the First Question

More Products You Might Like

Customer Reviews (2) Write a Review

Overall Rating 5.0

out of 5 stars

  • Fit 5 5
  • Bang For Your Buck 5 5



  • 5/5

    June 05, 2015

    Awesome Purchase!

    I installed these Bilstein 5100 shocks on my 2015 Wrangler JKU when I did my 3.5 inch rock krawler lift. These shocks help make the Jeep's ride feel better than stock. They also look pretty good seeing as they match my silver Wrangler. Definitely recommend this product.

    WarMachineJKU

    Year: 2015Bloomington, IL, USA

    Helpful (1)

  • 5/5

    September 18, 2015

    Rides great

    Swapped out the previous RC shocks that came on the lift kit put on by the previous owner. Immediately the ride was better than the stiffer RC's.

    Blackthumper

    Year: 2012Kansas

    Helpful (0)
