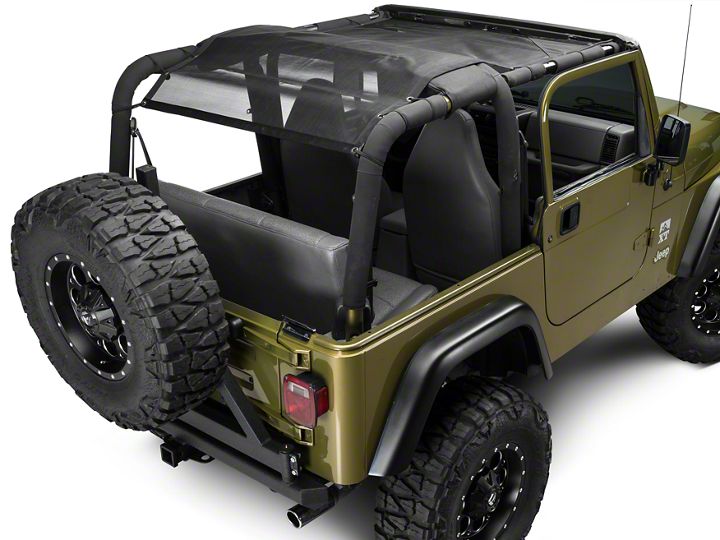

How to Install TruShield FullShade Top (97-06 Wrangler TJ) on your Jeep Wrangler

Installation Time

30 minutes

Tools Required
  • None
Extreme Terrain
Shop Parts in this Guide

1. Remove Hard top or lower soft top.

2. Attach center clasp to center latch over the windshield. Make sure the opening to the pockets are facing into the passenger compartment.

3. Starting on the driver side front, place the bungee cord through the eyelet with the ball facing the inside of the passenger compartment. Go over the roll bar (in front of the window surround Nut) and between the window surround and roll bar. Loop the bungee around the ball to secure the top.

4. Repeat the process down the driver’s side for the remaining 6 bungee cords.

5. Repeat the process on the passenger side.

6. Adjust the top as needed to center over the passenger compartment.

Tip: Use a zip tie to ensure the bungees remain secure around the ball. Do not over tighten the zip tie and trim the tail.

Installation Instructions Written by ExtremeTerrain Customer Tim Hoffecker 4/19/2018.
