How to Install ARB 37Qt-50Qt Fridge Freezer Slide on your Jeep Wrangler

Installation Time

60 minutes

Tools Required
  • Box Cutter/Knife
  • 5mm Allen Wrench
  • Drill Bit (optional)
  • Drill (optional)
  • Marker (optional)
Extreme Terrain
Shop Parts in this Guide

1. Carefully open the package using a box cutter or knife (Figure A) and ensure the hardware is included and undamaged.

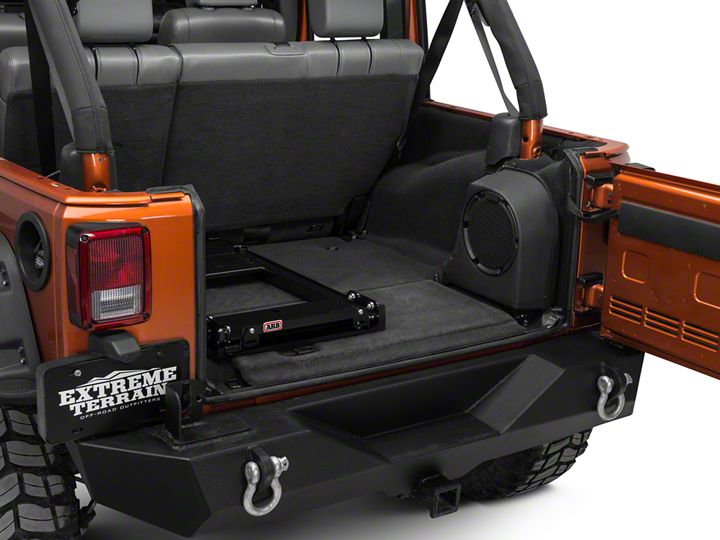

2. Position the slide inside the cab of the vehicle where mounting is desired. Pull the slide forward halfway, exposing the four mounting hole locations (Figure B).


3. Optional: Mark all four locations with a marker (Figure C). Drill four pilot holes then mount the slide to the location using M8 hardware (not included).


4. Locate the feet on the bottom of the ARB fridge (Figure D).


5. Unscrew the center bolt using a 5mm Allen wrench (Figure E).


6. Remove all four foot-bolts (Figure F).


7. Locate the three holes in each corner of the slide (Figure G).


8. Thread each removed foot bolt into the adjoined bolt hole on the slide (50QT placement shown) (Figure H).


9. Tighten all four bolts to secure the fridge to the slide (Figure I).



Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 04/13/2018.
