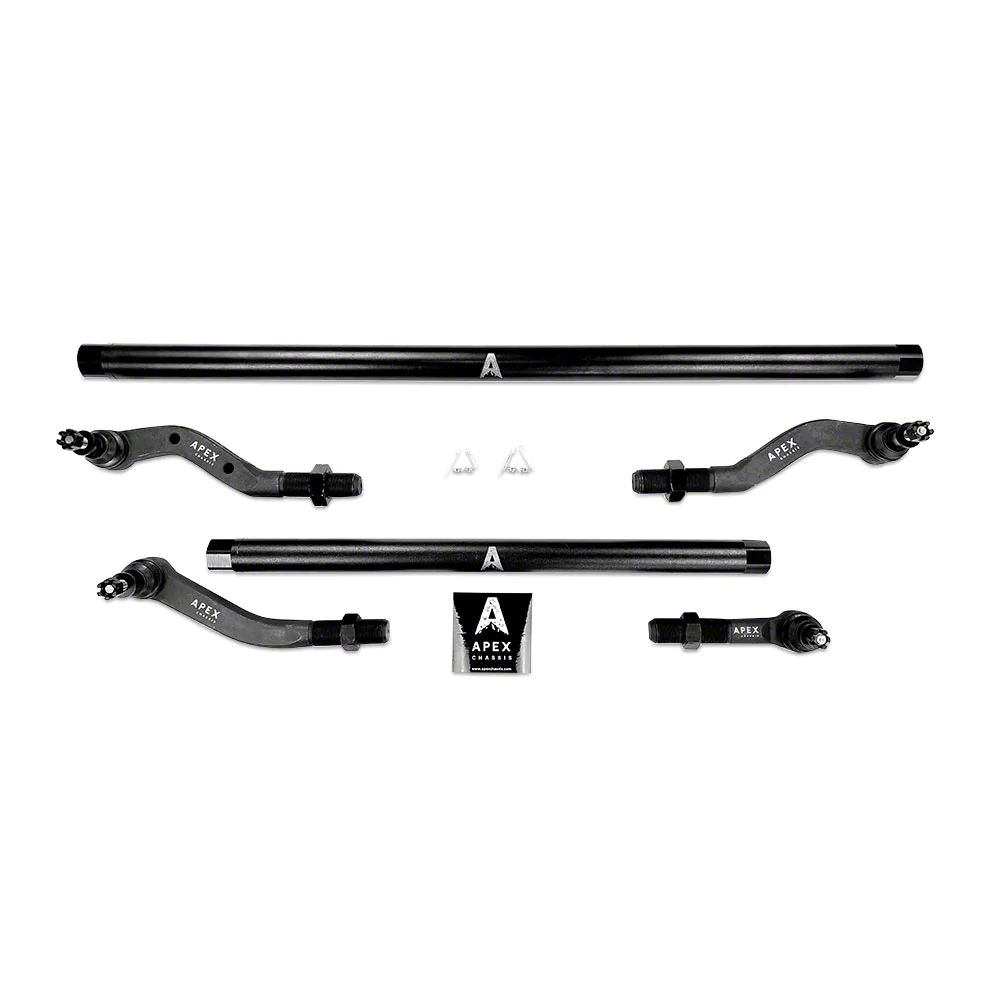

Apex Chassis 2.5-Ton Tie Rod and Drag Link Assembly without Flip Kit for Dana 30 and 0 to 4.50-Inch Lift; Steel (18-26 Jeep Wrangler JL, Excluding Rubicon)Find parts that fit my vehicle

Item J170635
Product Image
1 Reviews
Our Price

$855.00

Military, Medical & First Responders $42.75 Available in XT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

    Frequently Bought Together

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • Complete Replacement Steering Kit For 2018-2026 Jeep Wrangler JL And 2019-2026 Gladiator JT Models
      • Includes Tie Rod And Drag Link Made From DOM Steel With Adjusting Sleeves
      • Left And Right Forged Steel Tie Rod Ends And Left And Right Forged Steel Drag Link Ends Included
      • Equipped With New ProLock Washers To Prevent Tie Rod Rotation And Jam Nut Loosening
      • Available In Under Knuckle Mount Or Over Knuckle Mount (Flip Kit) Options
      • Flip Kits Include Taper Sleeve And Require Drilling Knuckle Drag Link Mount With 7/8" Drill Bit
      • Does Not Include Steering Stabilizer Bracket Which Must Be Purchased Separately Based On Stabilizer Choice
      • Fits Dana 30 Or Dana 44 Narrow Axles With Tie Rod Length 57.5" To 58.5"
      • Wide Axle Dana 44 Tie Rod Measures 60.5" To 61.5" Ball-Stud Center To Center, Including Rubicon, Mohave, Max Tow
      • Not Designed For Rock Crawling; Steel Rods May Bend Under Heavy Impact And Are Not Covered Under Warranty For Impact Damage
      • Jam Nut Wrench And Replacement Set Screws Available Separately
      • Housing Made From SAE 1045 Solid Steel Forged Material With CNC Machining For Precision
      • Ball Studs Are SAE 4140 Hot Forged Chromoly With Induction Heat Treatment And Rolled Threads
      • Features Rugged Metal-To-Metal Bearing Design And CR Rubber Accordion Boots For Durability
      • E-Coated Finish Provides Durable Electrochemical Protection
      • Hardware Includes Grade 8 Class 10.9 Components And Castle Nuts For High Vibration Endurance
      • Adjusting Rods Made From 1.75" DOM SAE 1020 Steel Tubing For Strength
      • Pre-Threaded Zerk Fittings Allow For Easy Greasing With Included Zerk Fittings And Pre-Greased Parts
      • Patent-Pending ProLock Link Connect System Locks All Connections Mechanically To Eliminate Rotation
      • Incorporates Flopper Stoppers In Tie Rod And Drag Link Ends For Superior Bearing Stability
      • Minimum Engagement Mark On Drag Link Threads Indicates Safe Thread Engagement
      • Adjusting Sleeves Made In The USA
      • Precision Engineered For Stock Dana 30/44 Axles With Dana 60 Modifications Available Upon Request
      • Fitment: Fits 18-26 Jeep Wrangler JL Excluding Rubicon

      Description

      Complete Steering Upgrade. The Apex Chassis 2.5-Ton Tie Rod and Drag Link Assembly is a heavy-duty replacement steering system engineered to improve durability and steering accuracy for Jeep Wrangler JL and Gladiator JT models from 2018 to 2026. This kit replaces original equipment components to provide reliable, precise steering performance both on-road and off-road.

      Construction and Appearance. Made from SAE 1045 solid forged steel housings and SAE 4140 chromoly ball studs, the assembly benefits from CNC machining and induction heat treatment to deliver superior strength and precision. A black e-coated finish offers corrosion resistance, and protective CR rubber accordion boots help shield internal parts from contaminants and wear for long-lasting durability.

      Installation. Installation should be performed by experienced mechanics familiar with steering systems. For configurations with the flip kit option, drilling the knuckle drag link mount using a 7/8" drill bit is necessary. This kit is compatible with stock Dana 30 and Dana 44 narrow axles and wide Dana 44 axles with correct selection, without requiring major modifications.

      Warranty. The product includes a lifetime warranty covering manufacturer defects and premature wear under normal use. Note that impact damage from off-road rock crawling is not covered by the warranty.

      Application. Designed specifically to fit 2018-2026 Jeep Wrangler JL models excluding Rubicon variants.

      Apex Chassis KIT115-Dana30-NoFlip

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Tech Specs

      5.0

      Customer Reviews (1)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Wrangler

      • JL Freedom 2 Door - 23
      • JL Rubicon 392 4 Door - 26
      • JL Rubicon X 2 Door - 24, 26
      • JL Rubicon X 4 Door - 24, 26
      • JL Sahara 4 Door - 26
      • JL Sport 2 Door - 26
      • JL Sport 4 Door - 26
      • JL Sport S 2 Door - 26
      • JL Sport S 4 Door - 26
      • JL Unlimited Freedom 4 Door - 23
      • JL Unlimited High Altitude 4 Door - 22
      • JL Unlimited High Tide 4 Door - 22, 23
      • JL Unlimited Rubicon 392 Final Edition 4 Door - 24
      • JL Unlimited Rubicon X 4 Door - 24
      • JL Unlimited Rubicon X 4xe 4 Door - 24
      • JL Unlimited Sport S 4xe 4 Door - 24
      • JL Willys 2 Door - 26
      • JL Willys 4 Door - 26
      • JL Wrangler 2 Door - 18, 19, 20, 21, 22, 23, 24, 25
      • JL Wrangler 4 Door - 18, 19, 20, 21, 22, 23, 24, 25
      • JL Wrangler 4xe 4 Door - 21, 22, 23, 24, 25
