Installation Time
(approx) 2 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

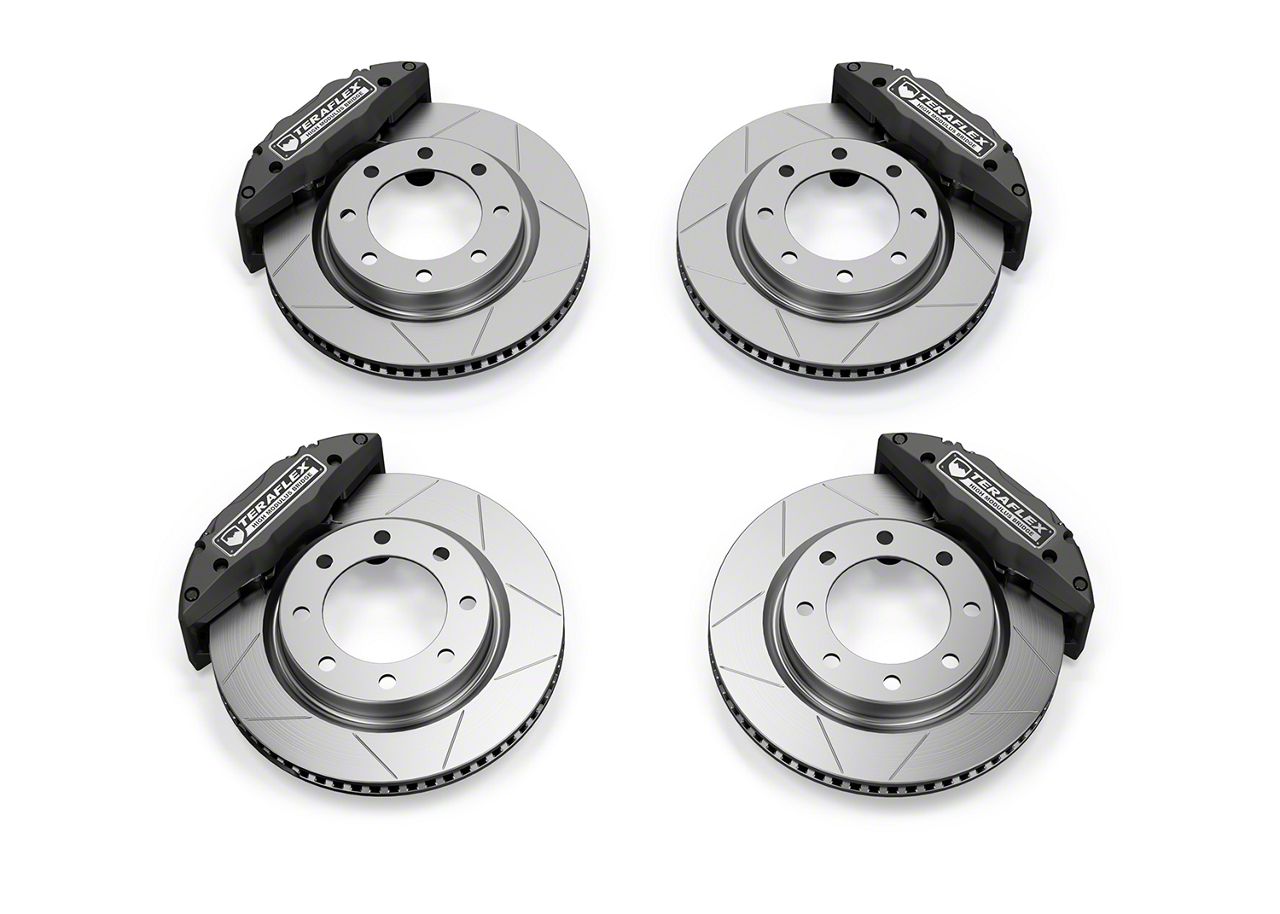

Teraflex Delta Big Brake Kit; 8x6.5 Bolt Pattern (07-26 Jeep Wrangler JK & JL)Find parts that fit my vehicle
Item J132139
Our Price
$2,553.96 kit
Military, Medical & First Responders
$127.70 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Ultimate Upgrade for Jeep Wrangler JK and JL Models with Oversized Wheels and Tires Requiring Increased Braking Performance
- Recommended for 33-42 Inch Tires or Heavy-Laden Overland Rigs
- Includes Components Required to Upgrade Both Front and Rear Axles
- Delta Brake Calipers Feature a High-Modulus Bridge for Reduced Elastic Deformation Under Load
- Installation Recommended by Certified Mechanic, with Estimated Labor Time of 4 Hours
- Significantly Improved Braking Performance Compared to Factory System
- 100 Percent Bolt-On Upgrade Using Basic Hand Tools
- Balanced Front to Rear Brakes Tuned Specifically for Lifted Vehicles
- Brake Bias and Piston Sizes Optimized for JL, JK, and JT Models
- Compatible with Stock Proportioning Valve and ABS Systems
- Three-Year Warranty Included
- Opposed Four-Piston Calipers with Two Inch Front and 1.375 Inch Rear Pistons
- Same Flow Rate as Factory Two-Piston Calipers, Increasing Efficiency Through Four Pistons
- EPDM Synthetic Boots Protect Pistons from Water and Contaminants
- Hard-Chrome Coated Pistons Reduce Friction for Improved Performance
- High-Modulus Four-Piece Bridge Caliper Design Combines Heat-Treated 4140 Cast Steel Bridges with 6061-T6 Forged Aluminum Housings
- Steel Bridges Resist Bending and Flex Better than Aluminum or Cast Iron
- Improved Stiffness Provides Consistent Brake Feel and Modulation
- Low-Profile Bridge Designed to Fit 14 Inch Rotors Behind 17 Inch Wheels
- 1000-Hour Salt Spray Tested Zinc and E-Dipped Coating on Bridges and Mounts
- 300,000 PSI Steel Formed Hardware
- Auto Bleeding Check Ball, Valve, and Spring Built into Calipers for Easy Bleeding
- Hard-Coat Anodized Scratch-Resistant Piston Bores
- Massive 14 Inch by 1.25 Inch Vented Rotors for Superior Stopping Power
- Heat-Treated Heavy Cast-Iron Rotors for Better Heat Absorption
- Mill-Balanced, Slotted and Vented Rotors to Maximize Gas and Heat Dissipation
- GEOMET Coating on Non-Friction Surfaces Resists Corrosion
- Proprietary Composite-Resin, Semi-Metallic Pads Provide Full Temperature Stopping Power with Increased Pad Life and Reduced Noise and Dust
- Drop-In Pad Design Eliminates the Need to Disassemble Calipers for Pad Replacement
- Minimum Wheel Diameter of 17 Inches Required
- Back Spacing of 4.75 Inches or Less
- Bolt Pattern of 8x6.5 Inches
- Fits 07-26 Jeep Wrangler JK & JL Models
| Brand | Teraflex |
| Brake Kit Placement | Front and Rear |
Description
High Performance Upgrade. The Teraflex Delta Big Brake Kit; 8x6.5 Bolt Pattern is designed to enhance braking performance for Jeep JK, JL, and JT models with oversized or heavier wheels and tire combinations. This upgrade improves stopping power, particularly important for lifted Jeeps with tires ranging from 33 to 42 inches and for heavily equipped overland vehicles.
Construction and Appearance. The system features high-modulus four-piston calipers constructed with heat-treated 4140 cast steel bridges combined with 6061-T6 forged aluminum housings, providing superior stiffness and resistance to bending. The rotors are massive 14 inches by 1.25 inches, vented, and heat-treated heavy cast iron with corrosion-resistant GEOMET coating on non-friction surfaces. The components are coated for durability, including hard-chrome coated pistons and anodized piston bores, offering a rugged and professional finish.
Installation. Installation requires approximately four hours and involves a 100% bolt-on procedure using basic hand tools. No drilling is necessary. Installation by a certified mechanic is recommended to ensure proper fit and function.
Warranty. This brake system comes with a three-year warranty covering calipers.
Application. This brake kit fits 07-26 Jeep Wrangler JK, JL, and JT models, including 2-door and 4-door versions, ensuring compatibility with the stock proportioning valve and ABS systems.
Teraflex 4403480
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (4) Rotors
- (4) Calipers
- Brake Pads
- Hardware
5.0
Customer Reviews (4)
Questions & Answers
No questions about this product yet.
Ask the First Question
