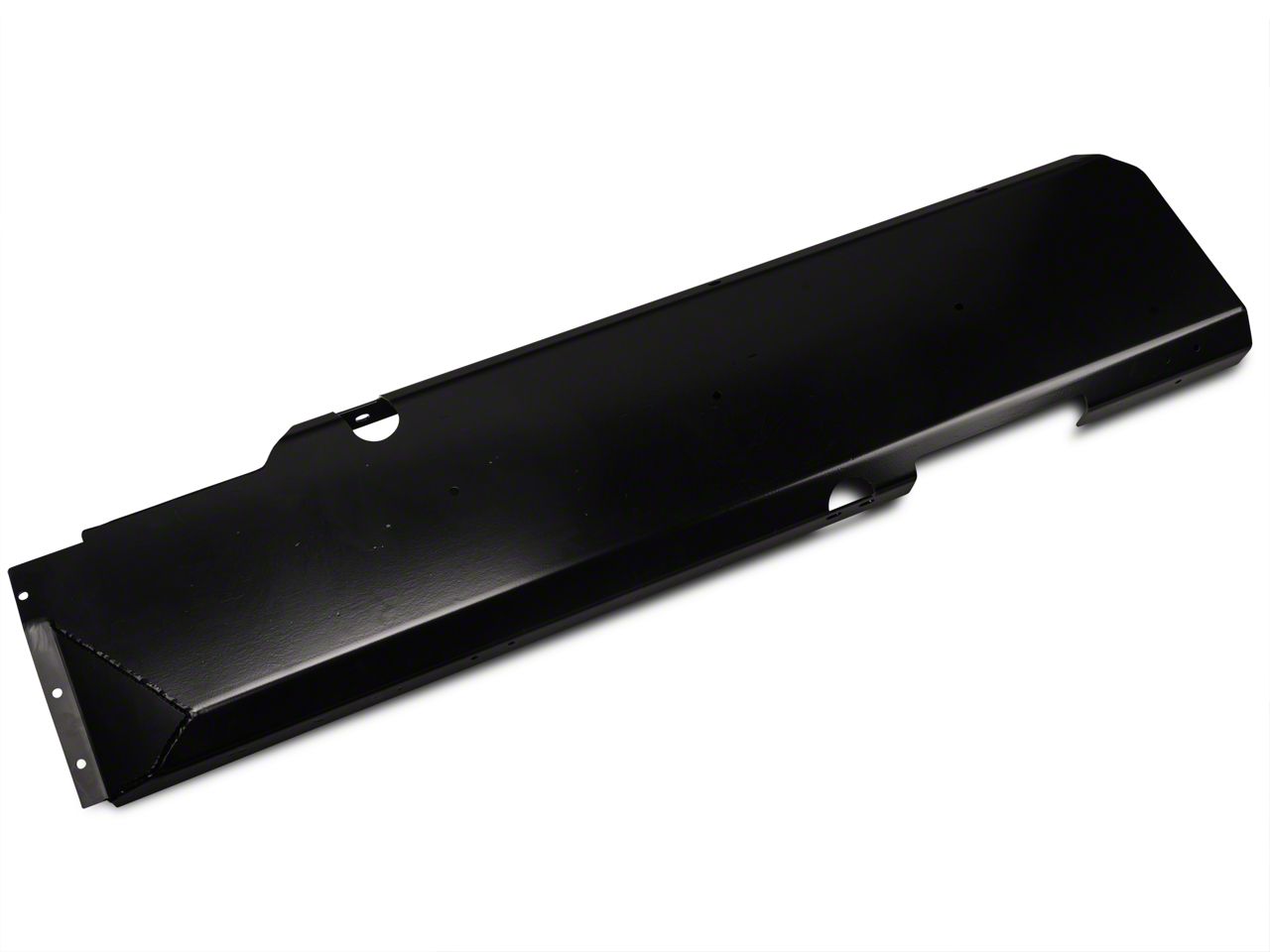

Synergy Gas Tank Skid Plate - Black Powder Coated (07-18 Jeep Wrangler JK 4 Door)

ExtremeTerrain no longer carries the Synergy Gas Tank Skid Plate - Black Powder Coated (07-18 Jeep Wrangler JK 4 Door).

Features & Details

  • Superior Protection to Your Vehicle Underside
  • Flush Mount Grade 8 Hardware for Smooth Surface
  • Access to Drain Tube without Removal
  • Comes with Mounting Brackets
  • Made from 3/16” Crush-Resistant Steel Plate
  • Crafted Using CNC Precision Technology
  • Premium Black Powder-Coated Finish
  • Fits 2007-2018 Wrangler JK 4-Door Models
Design. The Synergy Gas Tank Skid Plate is designed to offer superior protection to the underside of your JKU. It features flush mount Grade 8 hardware that provides a 100% smooth skid surface. This skid plate allows easy access to the drain tube without removal. It comes with integrated mounting brackets and can be easily installed on to existing mounts. This skid can be used with factory equipment or alongside Synergy's Skid plate assembly for fully flush undercarriage coverage.

Construction. It is constructed from ultra-light 3/16” crush-resistant Grade 50 A-571 steel plate that offers superior protection without adding any bulk. It is crafted using CNC precision technology that delivers a perfect fit and finish. This skid plate comes with a premium black powder-coated finish for maximum corrosion resistance, perfect for trail and road hazards.

Application. The Synergy gas tank skid plate with a black powder-coated finish fits 2007-2018 Wrangler JK 4-door models.

Fitment: Details

CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

What's in the Box
  • (1) Skid plate
  • (1) Rear inner bracket
  • (1) Mid inner bracket
  • (1) Front inner bracket
  • (1) Rear outer bracket
  • (2) Front and mid outer brackets
  • (1) Stock cross member adapter
  • Hardware
Installation Info
Tech Specs
Will it fit my Wrangler?

    Customer Photos

      Q & A

      No questions about this product yet.

      Ask the First Question

        Customer Reviews (2) Write a Review

        Overall Rating 3

        out of 5 stars

        Installation Time:Afternoon

        • Protection 5 5
        • Fit 3 3
        • Appearance 4.5 4.5
        • Bang For Your Buck 4 4



        • 3/5

          Installation Time: Afternoon

          August 15, 2016

          Needed slight modifications to fit

          We got this along with the full HD Synergy skid plate kit. This is a beast of a part. You have to drop the gas tank completely to do this install so make sure you're comfortable with that first before you think of doing it yourself. Also get your tank as empty as possible. This already weighs about 100lbs so the tank and gas will add to that fun. Its a solid piece of steel that looks like it will provide a lot of protection. The finish does scratch easily and then it rusts but I'll go ahead and spray it with rubberized undercoating at some point before the winter and salt. I'm dinging it some stars though because I did have to drill some holes out to make this actually fit. Along the front there are 3 holes in a line that meet with the cross member skid. When you have bolts in 2 of them the 3rd should easily line up. It was about half off so I had to get the stepped drill bit and oval that out to get the bolt in. Then the transfer case skid meets this skid at one point. That transfer case skid is bolted to the frame of the Jeep and to the cross member skid. All of the bolts on that lined up, but where it meets this had to be drilled out a bit a bit and then the flanged nut had to be ground down on one side because the flange was too big for the hole. I checked all the bolts to make sure I had the right ones. I think the holes on the one I got just weren't drilled quite properly. Luckily I have experience and the tools to make these modifications. If you don't have multiple jacks (a trans jack worked great for this), good drill bits, taps, and many other hand tools you may want to have this installed or look at other products. For the record, we did try loosening the bolts all around and banging, kicking, prying this into place to make those holes line up but that front hole wouldn't line up with the other 2 bolts in place and that hole for the transfer case only lined up if the bolts were completely removed from the tcase and its frame mounts and most of its cross member mounts. I'd buy this again because of the protection but for the price I'd have preferred a bit less unscheduled, unplanned work.

          Donny

          Year: 2016Submodel: Rubicon Unlimited

          Helpful (9)

        • 3/5

          Installation Time: Afternoon

          August 10, 2016

          Be prepared to modify this

          This is a really sturdy piece of steel. It has already protected the gas tank while rock crawling. It looks good and it does its job. It was a PITA to install though. When you have bolts in 2 of the 3 holes across the front you'd expect the 3rd hole in the line would line up. It was slightly off and no amount of banging, prying or anything would make it line up. Out comes the stepped drill bits to widen the hole and make it a bit of an oval instead. Then comes the hole for the transfer case skid. It didn't quite line up either. Out came the stepped drill bits again. the nut they provided has a nice locking flange on it. Unfortunately that flange meant it pushed the nut way too far away so I had to grind one side of that with a bench grinder. In the end it all fits and it's extremely solid. I'm not sure if the one I got was slightly off for some reason or why it didn't line up properly. The other 3 parts of the full Synergy kit we got all lined up with the Jeep and each-other beautifully. This being a 100LB piece of steel it wasn't worth sending back for 2 holes and a nut that I could modify with my tools. If you don't have stepped drill bits and a grinder though you may have more issues installing than we did.

          Donny

          Year: 2016Submodel: Wrangler Unlimited

          Helpful (11)
