(approx) 1 Hour
Light to Moderate mechanical skill required.
$59.95FREE Shipping on orders over $75

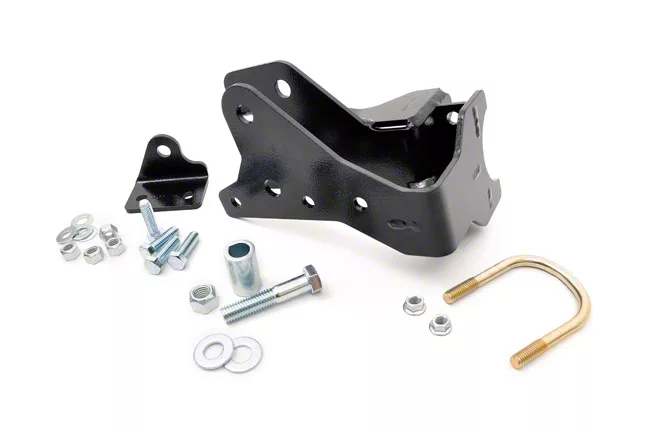

This Rough Country Front Track Bar Bracket is for those of you who that have a 2007 and up JK that are looking to change up your front suspension geometry. This is going to raise the axle side of your track bar flattening out at track bar angle a little bit and it's also going to relocate that factory stone stabilizer which is going to help keep it up out of the way of rocks when you're out on a trail. Now, it is important to know that if you just changed the end of your track bar mounting location by raising it up a little bit, you will also have to do something with your drag link in order to keep those two parallel. If your drag link and you track bar or out of parallel, you are going to end up with bump steer, that's just how suspension geometry works. So, you are going to need an additional piece to run with this bracket. I would recommend running this bracket alongside of a drag link flip kit to get everything back in parallel. If you are looking for a front track bar bracket though, I think this one is pretty well built. It's going to attach in a variety of different locations to the front axle giving you a very solid mount, and it also does come with that steering stabilizer relocation bracket, which is a nice added bonus. Like I said, this is a pretty well-built bracket, this is going to be steel, it's welded through and through, covered in a black powder coat finish, and I do like the way this mounts to your axle in a couple of different locations. As you can see on the table here, I do have a U-bol. So this is going to U-bolt around the axle tube as well as mounting to your factory track bar location, and this does require you to drill a couple of holes so you have some additional mounting locations for this track bar bracket making it very, very solid. As I said, this does come with this additional bracket here that's going to allow you to relocate your steering stabilizer up out of the way. So, this is a very complete package as far as the end of the track bar goes. As I said, very important to note, you do also have to do something with your drag link like a drag link flip kit in order to avoid bump stop when you have this installed. So, I'm gonna give this a two out of three wrenches for installation because it does require a little bit of drilling. However, it's not a lot, you're just drilling into that factory track bar bracket and you still can revert back to a factory track bar location if you choose to. The housing drill aren't going to make it unusable or un-reversible, so two out three wrenches, probably not gonna be a big deal to drill a couple of holes for most of you in your drive way. However, if you're not comfortable drilling, go ahead and take your jeep to a shop to get this installed. Even with the drilling, this whole process shouldn't take you more than an hour to complete. The first step is, of course, removing the axle side of your track bar from your axle. Go ahead and unbolt that, get it up out of the way. At the same time, you're going to remove your steering stabilizer and get that out of the way. Then you can hold the bracket up in the location, bolting it into the existing holes using the bracket as a guide to drill the new holes put in center punch pilot, and then drill out those holes, and use the included hardware to get the bracket completely bolted down before you bolt in your steering stabilizer relocation bracket. Once that's bolted up, the last step is going to be moving your factory steering stabilizer bracket, if you need to, to ensure that you're not going to run out of stroke on your steering stabilizer as you turn the wheel lock to lock. This bracket will run you right around $40, which I do think is a pretty fair price. You're getting a solid bracket. It does attach in a couple of different locations. You're not gonna get any flex from this and you're also getting a steering stabilizer relocation bracket all for that one cost. However, it is important to know that this isn't stand alone product, you do have to run this alongside of a drag link flip or possibly drop pitman arm in order to get extreme geometry setback . So, if you're looking to a solid drop pitman arm or a flip drag link kit and you're looking for a bracket to also change the angle of your track bar, I definitely recommend taking a look at this one from Rough Country that you can find right here at extremeterrain.com.
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation
Freight Notes. Freight items can only be shipped within the continental 48 states, no expedited methods.
Fitment: 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 Details
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
November 15, 2019
Front relocation bracket track bar
Installed after doing long arm lift 4 inch to get rid of bump steering. Works good easy install.Helpful (2)
June 21, 2019
Worked just as expected and easy instructions. Took about an hour to put on and got my track bar back to its original locationHelpful (2)
May 21, 2019
A must if you flip you steering draglink!
Easy install . It bolts to the existing track bar mount with the addition of drilling one hole. It helps put the track bar back on a parallel plane with a flipped drag link to cure any excessive steering feedback.Helpful (2)
February 14, 2019
Good, simple install
Easy to install and we'll constructed. Only took about 45 mins to install.Helpful (3)
January 27, 2019
Great fit and Quality!
Worked as advertised and is a beefy well built part.Helpful (3)
January 22, 2019
I wanted to brace up my bracket , it looks beefy but time will tellHelpful (4)
December 20, 2018
After install of a 3 1/2 lift bump steer was a huge issue, adding relocation bracket eliminated the problem !Helpful (5)
December 16, 2018
2009 Jeep 3.5 lift
This item really didn't give the correct adjustment that the Jeep needed to put the axel in the correct alignment. Had to purchase a adjustable track bar, Yes I have only a 3.5 lift.Helpful (4)
September 19, 2018
This Rough Country front track bar bracket is made very well and works very well with the Rough Country track bar if you have a 3 .25 lift and up you will need both of these together to get all your angles rightHelpful (4)
August 30, 2018
Got rid of my bump steer
This bracket completely got rid of my bumpsteer, it corrected my geometry between track bar and drag link.Helpful (4)
What thickness steel is used? And what grade u-bolt?
Please contact Rough Country as we do not have that information.
Is this bracket require if you have an adjustable trac bar, also will it require a drop pitman arm with a 4-6in lift.
I would indeed suggest a drop pitman arm at a 4-6 inch lift. In regards to the track bar bracket, this would allow an otherwise unadjustable or stock bracket to work for a 3.5-4.5 inch lift. It is an alternative to getting an adjustable track bar designed for a 3.5-4.5 inch lift.
Will this bracket work for the 2.5 level / lift kit. The rear came with the kit. But I feel I need one in the front. Get a lot of side jumping over bumps now.
The Rough Country Front Track Bar Bracket is designed for a 3.5-4.5 in. lift.
Do I have to flip my drag link with this installed ?
The Rough Country front track bar bracket does not require a flip draglink for the installation of this bracket.
If I am planning on putting on the rough country 3.25 lift, do I really need this bracket?
The Rough Country Front Track Bar Bracket for 3.5-4.5 in. Lift is not required,but it is highly recommended as it will provide better road handling and more predictable steering, especially in emergency turning situations. This will also help reduce wear on the trac bar.
(approx) 1 Hour
Light to Moderate mechanical skill required.
What's in the Box
