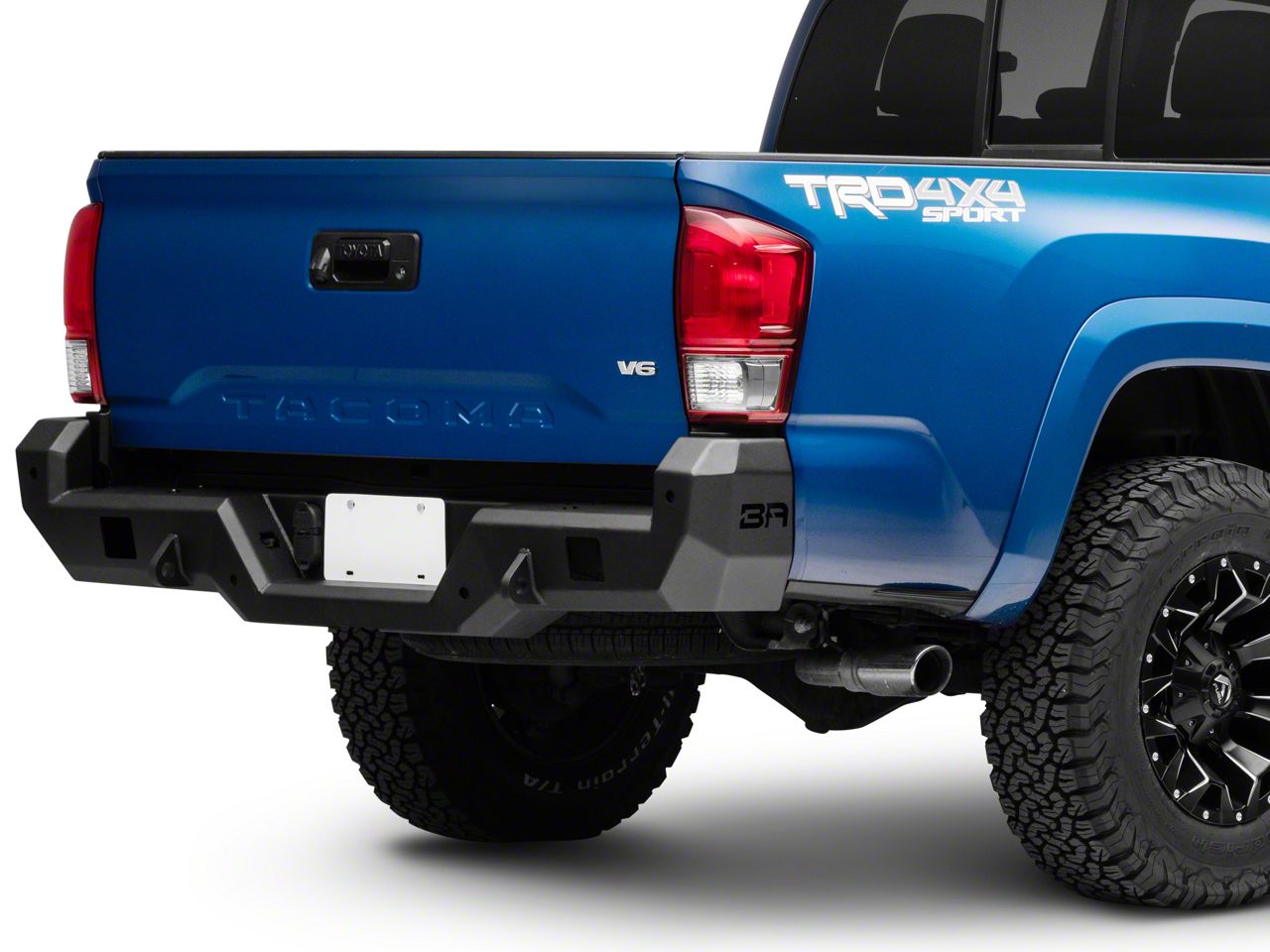

Body Armor 4x4 PRO-Series Rear Bumper (16-23 Tacoma)

Item TT6422
Verify parts fit and get product recommendations.
Tacoma Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price

$599.99 (each)

FREE Shipping + $25.00 Oversized Item Fee Market Price $683.99 You Save 12% ($84.00) Up to 10% off for Military & First Responders! See Details

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Recommended Install Shops
How It Works
Install Shops are available near Ashburn - 20149

Add Local Shop Installation

Total cost of service $299.00
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Videos

      Hey, guys. So, today we're checking out the Body Armor 4x4 Pro-Series Rear Bumper, fitting all 2016 and in newer Toyota Tacomas. So, if you're in search of some extra protection, utility, and some off-road styling for the rear end of your truck, this option by Body Armor 4x4 is gonna be a great choice to take a look into. Now, this will be great for the truck owner who's looking for like I said that extra protection on the back end. This is made of a heavy-duty steel construction. So, if you are taking your truck off-road, you're taking your truck on the worksite, or even just want some extra protection on the street, this is definitely gonna be able to hold up to that. This will also have utility features including two recovery mounts or D-ring mounts on the back. So, again, if you are taking your truck off-road and you're looking for a bumper that's gonna provide a solid recovery point, if you ever get into a sticky situation, this will accommodate for that.Now, this will also have cutouts on either side if you're looking to mount up auxiliary lighting on the back end of your truck, whether that's for a work light, whether you are looking to tie it into your reverse lights, or just overall some extra visibility. This will allow for two 3-inch tube lights to be mounted in, there are gonna be welded mounts on the bumper, so you don't have to worry about that at all. Now this will also accommodate mostly all of the factory features. This will have a cutout for the hitch plug, the license plate lights, and this will even come with cutouts for the factory backup sensors if your Tacoma is equipped. Now, what I really like about that is the fact that this is going to have those cutouts for the license plate lights so you can reuse your factory ones with the factory housing, and you can also reuse the factory wiring harness. Now, some of other choices available on the page will usually come with an additional light and they won't be able to accommodate for the factory ones. So, I personally think that that is a big step up considering that you don't have to do any additional wiring or any additional install when it comes to staying legal on the street. Now, overall, this is really just going to add a more utilitarian and off-road look to the back end of the truck, of course with all of those benefits.Now, with all that being said, this is going to come in at roughly $650. Now, in my personal opinion, I think with everything that's included in the bumper that that is definitely a great price point. Now, like I said some other options will not include all of the features that you see here, especially accommodating for the factory features. Some won't have cutouts for those factory backup sensors. Some will come with an additional light instead of accommodating for the factory lights and so on. And then there are some other options that will have basically all of the bells and whistles and come with a couple more features. They may even come with lights already inside the bumper in comparison to this where you would have to purchase additional lights. I personally think when it comes to the lights, you getting your own choice on what you wanna do with that is definitely a hand up on you customizing your truck, so kind of comes down to personal preference. However, again, if you're looking for a lot of utility, protection, and style for the back end of your Tacoma then this is a great choice.When it comes to installing I'm gonna give this a two out of three wrenches on the difficulty meter. This will require an extra hand to get it mounted up but it's nothing you can do in your driveway was pretty basic hand tools and about two hours worth of your time. So, speaking of that install let's jump into that now.The tools that I used in my install were an impact wrench, pair of needlenose pliers, a soft pry tool, flathead screwdriver, a pick, a 3/8-inch drive, and quarter-inch drive ratchet, the provided Allen keys, an 18-millimeter, 12-millimeter, and 10-millimeter socket, a 5-millimeter Allen socket, a Phillips head socket, and an electric ratchet.So, the first step of our install is to take off our license plate. Now for this I'm gonna use a Phillips head socket, however, this is gonna depend on what hardware that you have holding on your license plate, you may need a 10-millimeter socket. Now that our license plate is removed, that's gonna expose one of the clips that we'll have to remove in order to remove our bumper here. Next we can head underneath and disconnect the wiring harness for our hitch plug as well as our license plate lights.So, our next step is to disconnect our hitch plug, this is just gonna have a tab up on top. We're just gonna press down on that tab and pull back, that's gonna release our wiring harness. And then what we can do is just pop that out completely because we're gonna have to swap that over. So, I usually take a flathead screwdriver and just depress these clips that are just holding it on to the bumper here. So, once both those clips are through, we'll be able to wiggle this out and forward. So, after we've removed our hitch plug here, there's a wiring harness right next to it up at the top that's connected to the body and that's also connected to the bumper. What I'm gonna do is disconnect this and then we can move on to our license plate lights. Just have to depress that tab and pull back.So, our next step is to remove our license plate lights and disconnect the wiring harness for this. Now, what I like to do is just pop it through the bumper, that makes it a little bit easier because this is kind of a tight space to work with, especially to unplug a wiring harness. Now, what I'm gonna do is take a flathead screwdriver and just depress the clips on either side of the light. That's really what's holding it into the back bumper and we're gonna have to swap these over in just a second to our new bumper anyway. So, if you just push forward and depress those clips just like we did with the pitch plug, we'll be able to remove this light. What we can do next is remove the couple of clips that are holding on this trim piece. Now, I already kind of pried up on this trim piece here, so it is going to be pretty easy to remove. Now, if this is the first time that you're removing this trim piece, it is going to be pretty difficult to remove, but it's only held in by a couple of clips on the bottom and then a couple of clips on the front behind the license plate and two on either side down at the corner of the trim piece. So, I'm gonna take a soft pry tool and remove this clip up top and then we can head down to the corner. I'm gonna use that same soft pry tool, take out this clip, we can remove the one on the other corner, and then we can pull off our trim piece. So, like I said I already pulled up on this and removed most of these clips. Now, this trim piece is going to be a little bit difficult at first to take off just because of the multiple clips, but this is going to expose most of the bolts that we need to remove in order to remove our bumper as a whole. So, we can put this to the side and grab our tools for our next step. Next, we can remove the two bolts underneath that are holding on and the bottom portion of our bumper. I'm gonna use a 12-millimeter socket and my electric ratchet to remove those. Then we can do the same thing on the other side. Now, directly above the frame rail from the ones that we just removed there's gonna be 2 more 12-millimeter bolts, I'm gonna use the same 12-millimeter socket to remove them. Then we can repeat that for the other side. Last but not least, we can remove the two bolts that are in the middle holding our bumper on to the hitch assembly here. I'm using that same 12-millimeter socket. At this point, what we can do is just remove our rear bumper by pulling back.Now, before we install our new rear bumper, I did wanna step down and tell you guys a little bit more about it, especially in comparison to our factory rear bumper, show you some of the similarities and differences between the two and what benefits you're gonna get out of this new rear bumper setup. Now, overall, this is going to be a big step up in protection and looks an overall utility. Now, starting off with protection in comparison to our factory rear bumper, this is gonna be made of a 3/16-inch steel plate material that is going to hold up for the long run. It's going to hold up to any abuse while you are out on the trail or take a hit while you're out on the street, a lot better than factory plastics. The factory rear bumper is just gonna be made out of the plastic material. So, if you do take a hit to that it's not gonna do the best job at protecting the rear end of your truck and it is going to crack and break as to where this one is not gonna do any of that.Now, this is also gonna have a nice textured black powder coat finish on top which is gonna do a really good job at protecting the steel underneath from any rusting, but what it's also gonna do is just create a more aggressive and off-road look to the back end of your Tacoma. Now, what I really like about this is the fact that this is gonna give you full wraparound protection just like the factory rear bumper would. So, it will have an OEM style fit, but it's also gonna come with a couple other benefits that the factory rear bumper is unable to give you. On either side of this bumper, we're gonna have to welded D-ring mounts, that's gonna be great if you ever get into a sticky situation whether you are on the street or on the trail and need a recovery point, this is gonna be a solid recovery point in the back especially because the rear bumper is mounted up to our frame here. This will also have two cutouts on either side for accessory lighting, you will be able to mount up cube lights in this rear bumper, whether you're looking for additional lighting in the back for reverse lights, you're looking for work lights, or really just some extra visibility out of the back end of your truck.Now, this is also going to come with a couple of factory features. This will accommodate the factory backup sensors if your truck is equipped, we will be able to swap over our hitch or our hitch plug, and this will also have two have cutouts on either side for the license plate lights, which is very beneficial because we'll be able to swap over the factory ones, we don't have to do any additional wiring. I do really like that out of this rear bumper, I think that that gives it a one up on some of the other choices available. So, overall, this is going to provide a lot of style, protection, and utility out of the back end of the Tacoma. So, what do you say we go ahead and mount it up?So, now with the help of a friend, we can mount up our bumper, I'd recommend to have your hardware in hand. We are gonna be using the carriage bolt and the carriage bolt plate for this. If you have a hitch receiver, it will be a little bit different if you are working without a factory hitch receiver.So, now that the bumper is resting on our hitch receiver assembly, what we can do is take that carriage bolt in the plate, we can put that through the bumper bracket that's welded, it's gonna rest on the inside of our hitch receiver bracket. It's gonna go through our bumper bracket, through the hitch receiver bracket, and then we can secure it on the other side. Now we're not gonna tighten it down just yet, we're just gonna make sure that it's secure and now we can secure down that the rest of our bumper. So, what we can do at this point is mount up our spacers, we're gonna have a thick and thin spacer, we're gonna have two mounting locations on the top of our frame on either side. And we're gonna have two mounting locations in the middle just like our factory rear bumper. So, we're gonna take these, we're gonna lift up on the rear bumper here, we're gonna slide these in between. And line those up with the mounting location. Then we can do the same thing on the other side.Before we attach our spacers in the middle, what I wanna do is loosely install our bolts for the top mounting locations on our frame. So, this is going to be the Allen head bolt, lock washer, and flat washer. We're gonna thread these into the factory mounting location. And just a couple threads in, we just wanna make sure that the bumpers not moving around a lot, but we still need to make sure that it will move vertically. Now, depending on how many spacers you need, this is gonna depend on your setup, but we're gonna take the smaller square spacers and wedge them in between the frame and our bumper. Then we can line those up in just a second, but we're gonna do that on either side for each mounting location. So, it might be helpful to use a pick just to line up the holes in the bumper and the holes in the frame. We can take that same style hardware and just thread that in. Then again we just want a couple threads on either side, make sure everything's lining up correctly. Now, with a 5-millimeter Allen socket and Allen key, what I'm gonna do is tighten down all the top bolts, then we can head underneath for the carriage bolts. Now, the back one since there's not a lot of room you may not be able to get the socket in there if you're using a socket, but I'm using the provided Allen key for this. Now we can tighten down the carriage bolt with an 18-millimeter socket. Once this side is tightened down we can repeat that process on the other side and then we can swap over our wiring harness.So, because we're swapping over our factory hitch plug and our factory license plate lights, what we need to do is also swap over our factory wiring harness for those two things. So, what I'm gonna do is take a pair of needlenose pliers, this is just held in by a number of clips that are lining the back of our factory bumper, but I'm just going to squeeze either side of those clips and pull back and that clip should pop right out. So next, we can take our license plate light and we can pop that through our rear bumper. There is a little alignment pin down at the bottom there, that's just gonna fit in just like that, we can do the same thing on the other side. And then same thing goes for our hitch plug. We're just gonna pop that into place, push it in to secure it, and those pins should hold it through the bumper.So, after everything's in the bumper, what we can do is plug in our wiring harness for our license plate lights. I'm gonna start with that main wire up at the top. Then we can take the smaller wiring harness and plug that into the back of the license plate light. This is gonna be very difficult to see but these are just gonna plug into the back of that light just like they did on our factory bumper, they're gonna be in roughly the same location. Once you hear a click on one side, do the same thing for the other. So, once that's plugged in, just make sure that you tuck your wiring, you can even zip tie this to the hitch receiver just to kind of clean it up, keep it in place. Then we can take our hitch plug wiring harness and plug this into place. So, after everything's plugged in, if you did not swap over your factory backup sensors, we do not have them so we didn't swap them over, you would take these rubber plugs and we're just going to put them in the same location that the backup sensors would be in. And you are provided with hardware in order to mount those up, but these are just gonna fit right in place and fill that hole there. Now, we're gonna have three other ones, two others in the middle, and one on the other side so we can just repeat that process.So, last but not least, once the bumper is mounted, everything's in the bumper and plugged in we, can install our license plate. We're gonna install it with the provided bolts and tighten it down with the provided Allen key. Might need to go underneath the bumper in order to access the nut on the other side. Now, with the provided Allen key and a 10-millimeter socket, we can go ahead and tighten that up.So, that's gonna wrap it up for my review and install. Make sure you like and subscribe for more videos and products just like this, and always keep right here at extremeterrain.com.

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Simplistic Off-Road Styling
      • Full Width Rear Bumper
      • Heavy-Duty, 3/16-inch Steel Plate Construction
      • Black, Powder-Coated Finish
      • Accommodates 2 LED Cube Lights
      • Works with OEM Receiver
      • Includes Parking Sensor Cutouts
      • Does Not Fit With Blind Spot Monitors
      • Bolt-On Installation
      • Fits 2016-2023 Toyota Tacoma Models

      Description

      Simplistic Off-Road Styling. Update the appearance of your 2016-2023 Toyota Tacoma by installing a Body Armor 4x4 PRO-Series Rear Bumper. With clean simple styling that surpasses the boring stock bumper, this Pro-Series Rear Bumper looks perfectly at home on both the street and trail. Designed to easily replace your factory bumper, this Body Armor 4x4 Bumper features openings for 2 LED cube lights.

      Light The Night. The Body Armor 4x4 PRO-Series Rear Bumper is the perfect solution for night-time trail runners, as it will accommodate 2 LED cube lights. Please note lights are not included - sold separately.

      Heavy-Duty Construction. Body Armor 4x4 manufactures its Pro-Series Rear Bumper to precise specifications from 3/16-inch thick mild steel plating for superior strength and rigidity. The Bumper is then completed in a high-grade, textured black, powder-coated finish for durability and long-lasting corrosion resistance.

      Bolt-On Installation. Body Armor 4x4 engineered its PRO-Series Rear Bumper to be a direct bolt-on replacement for the original stock bumper reusing the factory hardware and mounting points. The install can be completed in about 2 hours with just basic hand tools and the help of a friend.

      Application. This Body Armor 4x4 PRO-Series Rear Bumper is designed to fit 2016-2023 Toyota Tacoma models. Please note that this Bumper is not compatible with factory blind spot monitors.

      Fitment:

      Details

      Body Armor 4x4 TC-2963

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (1) Rear Bumper
      • Mounting Hardware
      4.4

      Customer Reviews (59)

        Questions & Answers

        10 More Questions

        Will It Fit My Tacoma
