Find Steering Components for your Wrangler

1-Ton Drag Link Kit with Flip Kit for 3.50+ Inch Lift; Black Aluminum (07-18 Jeep Wrangler JK)Find parts that fit my vehicle

Item J196290
1 Reviews
Our Price

$404.99

Military, Medical & First Responders $20.25 Available in XT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

        _x000D_
      • Complete 1 Ton Upgraded Replacement Flip Kit Drag Link Kit
        • _x000D_
      • Includes Black Aluminum Drag Link With Adjusting Sleeve
        • _x000D_
      • Left And Right Forged Steel Drag Link Ends Included
        • _x000D_
      • Comes With 2 Ninja Lock Washers Plus Taper Sleeve
        • _x000D_
      • Taper Sleeves Require Knuckle Drag Link Mount Drilling With Straight 7/8 Inch Drill Bit
        • _x000D_
      • Flip Kit For Over Knuckle Mount Required For Lifts Greater Than 3.5 Inches
        • _x000D_
      • Steering Stabilizer Bracket Not Included, Must Be Selected Separately
        • _x000D_
      • Compatible With Stock Dana 30/44 Axles
        • _x000D_
      • Works With 17 Inch Wheel With 4.75 Inch Backspacing Or Less
        • _x000D_
      • Made From SAE 1045 Solid Steel Forged Housing For Structural Strength
        • _x000D_
      • CNC Machined Housing Provides Dimensional Precision
        • _x000D_
      • SAE 4140 Hot Forged Chromoly Ball Studs With Induction Heat Treatment
        • _x000D_
      • Polished Ball Studs With Rolled And Step Thread For Strength And Easy Installation
        • _x000D_
      • Rugged Metal To Metal Bearing Design
        • _x000D_
      • CR Rubber Accordion Boots For Durability And Flexibility
        • _x000D_
      • Drag Link Ends Have E-Coat Finish, Adjusting Sleeve Has Black Anodized Finish
        • _x000D_
      • Grade 8 Class 10.9 Hardware With Castle Nut For High Vibration Loads
        • _x000D_
      • 1.5 Inch 7075-T6 Aluminum Adjusting Rod With Durable Yet Flexible Properties
        • _x000D_
      • Pre-Threaded Zerk Housing For Easy Lubrication
        • _x000D_
      • Greaseable And Pre-Greased With Special Gull Winged Grease Grooves
        • _x000D_
      • Includes Pre Bent Ninja Washers For Securing Lock Nut
        • _x000D_
      • Fits 07-18 Jeep Wrangler JK
        • _x000D_
      _x000D_

      Description

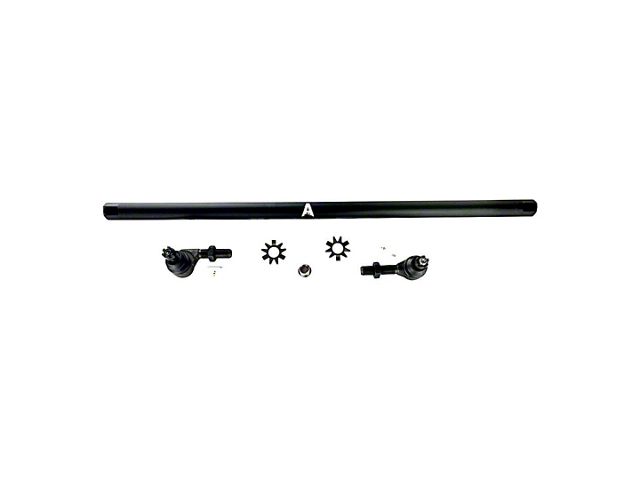

      This is a complete 1 Ton upgraded replacement Fliup Kit drag link kit for your 2007-2018 Jeep Wrangler JK. It includes the drag link (DOM Steel) which is also the adjusting sleeve, and left and right forged steel drag link ends, the required taper sleeve, plus 2 Ninja Lock Washers.

      Note - this Kit requires the drilling of the knuckle.

      This Kit is a Flip Kit over knuckle mount which is necessary for lifts greater than 3.5 inches. If you're looking for a Standard under knuckle mount, please see KIT152.

      Note: taper sleeves require the knuckle drag link mount to be drilled through with a straight 7/8 inch drill bit.

      Fitment:
      Wheels and Spacers: If you run AEV or stock Rubicon wheels, you'll need a 1.5 Inch wheel spacer. This kits works with a 17 Inch wheel with a 4.75 Inch backspacing or less. We recommend the steering stabilizer be fitted in the stock location, or a relocation kit may be required.

      Differentials and Mods: This steering system fits stock Dana 30/44 axles. This will fit most modifications, but we want to make sure before shipping. You may also want to discuss with your local Jeep shop to make sure all your modifications are compatible.

      If your jeep has been upgraded to a Dana 60 axle, we have modifications that can work with that as well.

      The Special Sauce:

      • Housing
        • SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
        • CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.
        • Knurled Housings: The preferred design for aftermarket installations.
      • Ball Studs
        • SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.
        • Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
        • Polished Ball Studs: Are built like an anti-friction bearing with extremely precise tolerances.
        • Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
        • Step Threads: allows for very easy movement of hardware on install and superior holding when torqued (installer choice).
      • Bearing Design
        • Rugged Metal to Metal Bearing
      • Boots
        • CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold.
        • Accordion Boot: Ideal for high-articulation components, more flexibility means longer life.
      • Finish
        • Phosphate Finish: Extremely durable. Double coated. Threads coated as well. Rugged look.
      • Hardware
        • Grade 8 - Class 10.9 Hardware: Superior tensile strength.
        • Castle Nut: Industry standard where high vibration loads occur.
      • Adjusting Rods
        • Black Anodized Finish: Understated beauty, long lasting finish.
        • 1.5 Inch 7075-T6 Aluminum Rod: The best aluminum available for this application. Extremely durable but has some flex and memory if you really bash it into something.
      • Lubrication
        • Pre threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
        • Greaseable: Because it should be.
        • Pre-Greased: Just in case you forget, we have you covered.
        • Gull Winged Grease Grooves : Allows for improved lubrication disbursement around the ball stud.
        • Zerk Fittings : Included for every application.
      • Special Features
        • Ninja Washers (tm): An APEX exclusive is our Ninja Washer which is a unique method of securing the lock nut to the tube, erasing the need for lightly built adjusting tubes with ugly pinch clamps. And who doesn't want a ninja on their front end.
