Teraflex 3 in. Lift Kit w/ Shocks (07-18 Jeep Wrangler JK 2 Door)

Item J20565
ExtremeTerrain no longer carries the Teraflex 3 in. Lift Kit w/ Shocks (07-18 Jeep Wrangler JK 2 Door). Please check out 2007-2018 Jeep Wrangler JK 2.5-3.75" Lift Kits for an updated selection.

Features, Video & Details

  • Accomodates Up to 35" Tires
  • Provides Extra Ground Clearance
  • Includes Teraflex 9550 Shocks
  • Fits 2007-2018 Jeep Wrangler JK 2-Door Models

Review & Installation Video

Review & Install Video

Hey guys, I'm Ryan from and this is my review of the TeraFlex 3" Lift Kit. This kit's available for both two door and four door JK's and you can get it with or without shocks or you decide to add your own. Just make sure you get the right kit for your Jeep. This lift kit is for those of you who want to run 35" tires with some room to spare. It's a really complete kit includes bump stop extensions, extended brake lines, and like we said, this kit even includes shocks. The only thing you might want to add is an adjustable front track bar but it's not necessary to get you back on the road and moving. Like any lift kit, this is going to increase ground clearance so you can get over off-road obstacles and run a larger tire without eliminating off-road articulation. This kit's going to ride pretty well, probably similar to stock but if you really want to dial in the ride quality, you can purchase the kit without shocks and pair whatever shocks you like with the rest of the kit. As we've said before, this is a really complete lift kit. It's going to have everything you need. The only thing you may want to add is a front adjustable track bar if you really want to get the front axle dead center under the Jeep. But again, not necessary to get you back on the road and moving. I really like that this kit has everything you need and nothing that you don't. If it comes in the box, it should be bolted onto the Jeep when you're finished with the install. You'll have all the brackets and all the hardware necessary. The lift for this kit is supplied from TeraFlex's 2 1/2" lift springs and a 1/2" coil spring spacer. The shocks that come in this particular kit are properly sized for the taller ride height but if you decide to get the kit without the shocks, you'll want to make sure the shocks you add are sized properly for maximum performance. All lift kits install pretty much the same and this one's no different. First thing you'll have to do is support the vehicle from the frame and then loosen and remove anything that keeps the axles from completely drooping, that includes shocks, track bars, sway bars. Once all that stuff is removed or disconnected, the axles will droop, the springs will pop out, you put the new ones in and put everything back together. If you've fully sagged the suspension, even the taller springs that come in the lift will install easily without the need for a spring compressor. I always avoid using a spring compressor whenever possible. If you've ever used one, you know that they can be tough to get into tight spaces, like in the wheel well under a Jeep. The bumps up extensions that come in this kit are really easy to install. The type of extension included in the kit goes between the bump stop and the stock pumper as opposed to the style that adds height to the spring perch. This style is not only easier to install in your Jeep because it doesn't require drilling of the spring perch but it also makes installing the new springs a lot easier as well. I've installed kits that just include relocation brackets for the front brake lines and they can require you to straighten out the stock hard lines a bit, which I would rather not do. Even though you need to bleed the brakes system while installing these new longer lines, in my opinion it's well worth the extra time. Including the OE hardware and what comes in the box, you'll have everything you need to get this bolted back up in about four hours. If you have air tools or a lift or an extra set of hands, your time will definitely vary. One install tip that you can use for not just this lift kit but any lift kit install, is when trying to get the front track bar lined back up. Now if you're like me, you've tried a lot of different things from ratchet straps to having people stand on the bumper to rocking the vehicle back and forth but if you put the tires on the Jeep, put it on the ground and have somebody get inside and turn the steering wheel, it'll line that track bar up nice and easy. You'll be able to pop the bolt in, no problem. You get a lot for the price of this lift kit. You'll end up with a rig that rides really well on the road and performs well off-road. There are some more expensive lift kits out there that has some additional components or maybe some name brand shocks that will improve the on road ride quality but TeraFlex has put together a reasonably priced kit that has components that work really, really well together. And if you decide you want to upgrade something down the line, that's always an option. So that's my review of the TeraFlex 3" Lift Kit putting on 2007 to 2016 JK's you can find right here at

What's in the Kit.The TeraFlex 3-inch Suspension Lift Kit includes lift springs, a rear track bar bracket, rear sway bar links, front sway bar disconnects, bump stops, and the necessary hardware required for installation.

Functionality. This Jeep Wrangler JK lift kit increases ground clearance to offer better comfort while driving on rugged roads. It lets you run up to 35-inch tires to your vehicle.

Application. This Teraflex 3 inch Suspension Lift Kit is designed for the 2007-2018 Jeep Wrangler JK 2-door models.

Technical Note. This Teraflex Lift Kit may need additional items to complete the installation.
  • Requires Wheels with 4.5 inch Backspacing or Less, or Offset Wheel Adapters, part# 1055000, for stock wheels.
  • Requires Adjustable Alpine Flexarms, part# 1415610 or Adjustable Alpine Long Flexarms, part# 1315010, and HD Forged Adjustable Front Track Bar, part# 1753418 to set correct suspension geometry.
  • 2007-2011 Models will require Extended Length Front Brake Lines, part# 4353300
  • 2012-2018 Models will require an Exhaust Spacer, part# 26100000.
  • TeraFlex Rzeppa High Angle CV Kit, part# 1744014, is also recommended.

Fitment: Details

CA Residents: WARNING: Cancer and Reproductive Harm -

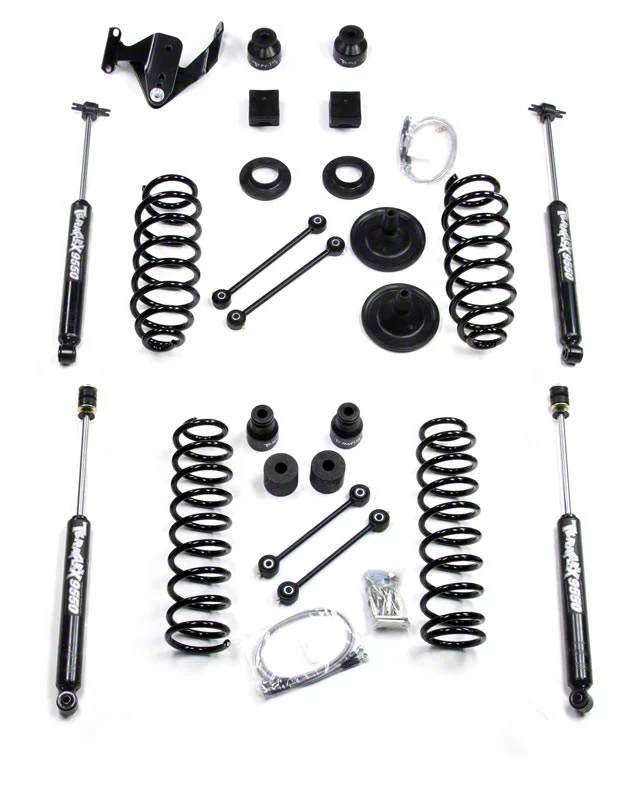

What's in the Box
  • Front & Rear Coil Springs
  • Front & Rear Shocks
  • Front Swaybar Disconnects
  • Rear Swaybar Links
  • Front & Rear Bumpstops
  • Rear Trackbar Bracket
  • Front & Rear Coil Spacers
  • Rear Brake Line Brackets
  • Installation Hardware
Installation Info
Tech Specs
Lift Kit Specifications
Year/Model: 2007-2018 JK Manufacturer: Teraflex
Lift Type: Coil Spring Lift Height: 3"
Shocks Included: Yes Max Tire Size: 35
Will it fit my Wrangler?

    Customer Photos

      Questions & Answers (3)

      3 Top Rated Questions

      Can I fit 36x12.50 R17 Super Swamper with this lift ?

      • To avoid rubbing we recommend at least a 4" to fit 36" tires.

      Helpful (0)

      would I need to worry about the pinion angles, etc. with this lift? Ot is that only a problem above 3inches

      • The Teraflex 3 in. Lift Kit should not have any issues with driveline angles, however you will want to check clearance on the boot on the front drive shaft to make sure there is no rubbing occurring, otherwise you may need a new driveshaft.

      Helpful (0)

      If I were to run the stock wheels would I need wheel spacers?

      • You would not need to run spacers to fit your stock wheels with this lift.

      Helpful (0)
      Post Your Question

        Customer Reviews (4) Write a Review

        Overall Rating 5

        out of 5 stars

        Installation Time:Full Day

        • Appearance 4.75 4.8
        • Bang For Your Buck 4.5 4.5
        • Onroad Ride Quality 4 4
        • Offroad Capability 4.5 4.5

        • 5/5

          Installation Time: Full Day

          April 04, 2018

          Good product

          This is a great lift for the money. The parts are heavy duty. The instructions were not great but you can figure it out with a little time.


          Year: 2014Submodel: Wrangler

          Helpful (9)

        • 5/5

          Installation Time: Afternoon

          June 12, 2017

          Thumbs up

          Easy compared to other lifts I've put in jeeps before also comes with everything you could need


          Year: 2012Submodel: Wrangler

          Helpful (9)

        • 5/5

          Installation Time: Shop Install

          March 11, 2016

          Nice lift

          I got this lift when I was overseas and the wife got it installed. I haven't driven it personally yet but she says it rides well almost like stock I did buy new control arms and front track bar but I don't know if it needed them. From what I can tell it should serve its purpose. I'd recommend this lift.


          Year: 2015Submodel: WranglerFort Bliss, TX, USA

          Helpful (10)

        • 5/5

          Installation Time: Full Day

          January 20, 2016

          Product is well built quality

          Product is great instructions not so good luckily there are multiple videos on You Tube that show complete installation would advise to also order an adjustable track bar for the front you will need it.


          Year: 2016Miami, FL, USA

          Helpful (11)
