Ten Factory Front Axles (97-06 Jeep Wrangler TJ)

Market Price $702.88 You Save 9% ($63.90)
Our Price


FREE Shipping

  • Item J105933

Will this fit your Wrangler?

In Stock Ships same business day.
Ship to: ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Features, Video & Details

    • Dana 30 Front Axles
    • 27 spline
    • Left and Right Assemblies
    • Heavy Duty 5-760X U-Joints
    • 4340 Chromoly
    • Black Oxide Coating
    • Length 16.5" L, 32.31" R, 6.11" Stub
    • Joints Come Pre-Assembled
    • 10 year replacement warranty
    • Fits 1997-2006 Wrangler TJ, Excludes Rubicon

    Review & Installation Video

    Review & Install Video

    A stronger than factory set of axle shafts like these ones are a good idea if you have big tires on your Jeep and you do some hardcore wheeling. This is going to be insurance against breaking one of those factory axle shafts. Or of course, if you've already broken an axle shaft, you'll want to upgrade with something that's stronger than factory, like these chromoly ones, rather than going back to a factory shaft which could still easily break. Today, we're going to talk through the installation of these axle shafts, which I am going to give a strong two out of three wrenches. You are going to have to do a good bit of disassembly to the axle assembly in order to get these installed. However, there is no major modification necessary, and I would say the whole process is probably going to take you right around three hours to complete. But we'll talk a little bit more about that in a minute. Now, there are a couple different companies out there that are making chromoly axle shafts like these ones. They're going to be a similar material, they're going to include similar components, and they are going to be a similar price. So which ones you choose is really down to which brand you prefer and which ones you like the best. Now, I do like these axle shafts, specifically, the front axle shafts here, because they do come with a 5-760X Spicer U-joint in them, which is going to be a non-greaseable U-joint. I like them, because they're a little bit stronger, due to the fact that they don't have a grease path drilled through them. However, if you are somebody who spends a lot of time in the mud and in the water, you may prefer a greaseable U-joint, so you can push that old dirt out of your U-joint and replace it with fresh grease. As I said, you can get these for whichever axle you have in your TJ for both the front and for the rear. The front axle shafts are going to be made out of a very strong 4340 chromoly, and the rear out of a 4140 chromoly. The fronts do have those non-greaseable Spicer U-joints that we talked about, and these are going to come with all the other bearings and seals necessary in order to get them installed. These are going to be a factory spline and factory length shaft, so they'll go right into your factory carrier, or even a factory replacement carrier if you have a different gear set in your differential. As I said, the install for these is going to be a strong two out of three wrenches, just because of the amount of disassembly you need to do to get them installed, even though there isn't going to be any major cutting or modification of the axle necessary to get these bolted up. In the front, you are going to have to remove your wheels, your brakes, the bearing assembly, slide the axle shaft out, slide the new one in, and put everything back together in the reverse order. In the rear, if you do have the Dana 35, that's going to be a C-clip axle, so you'll also have to pop off your differential cover, which is one additional step, and of course you're going to have to reseal that and refill that with fluid. So you are going to need most of the tools in your toolbox to get this job done. Again, probably about three hours per axle, unless of course you've done this before and you're a little bit quicker. But it is something that you can tackle in your driveway. These axle shafts do come in at right around $600 a pair, and that is really the going rate for a chromoly axle shaft that includes the components that these ones include. Now, there are a few different brands out there that are making axle shafts, again, right around the same price, right around the same components, right around the same materials. So which ones you choose is really up to you. So if you're looking to upgrade to a stronger than factory axle shaft to ensure that you're not going to break one while running larger tires on the trail, or you've already broken a factory axle shaft, and you're looking to upgrade to a chromoly one that's going to be much stronger, this is going to be a nice choice. So that's my review of the Ten Factory axle shafts, fitting all 1997 to 2006 TJs that you can find right here at

    All Terrain Performance. Enthusiastic wheeling and large off-road tires will quickly expose the factory axles on 1997-2006 Jeep TJ Wranglers. Ten Factory front axles are a drop-in 27-spline replacement axle set for the Dana 30 up front and are considerably stronger and better suited to the off-road Jeep life than the OEM Chrysler parts. Thicker forged ends and an overall more robust construction make the Ten Factory axles an ideal upgrade for those that want to push their Jeep off-road and/or run a really big tire.

    Heavy Duty Fabrication. Manufactured from 4340 Chromoly alloy steel, the 27-spline Ten Factory Front Axles are also heat treated in multiple stages to provide maximum strength. Robust 5-760X Spicer U-joints tie the inner and outer assemblies together and provide excellent range and smooth motion. All parts are coated with corrosion-resistant black oxide paint.

    Application. These Ten Factory Front Axles fit 1997-2006 Wrangler TJ with Dana 30 front axle. Does not fit Rubicon models. Joints Pre-Assembled.

    Fitment: 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 Details

    MPN# MG22148

    CA Residents: WARNING: Cancer and Reproductive Harm -

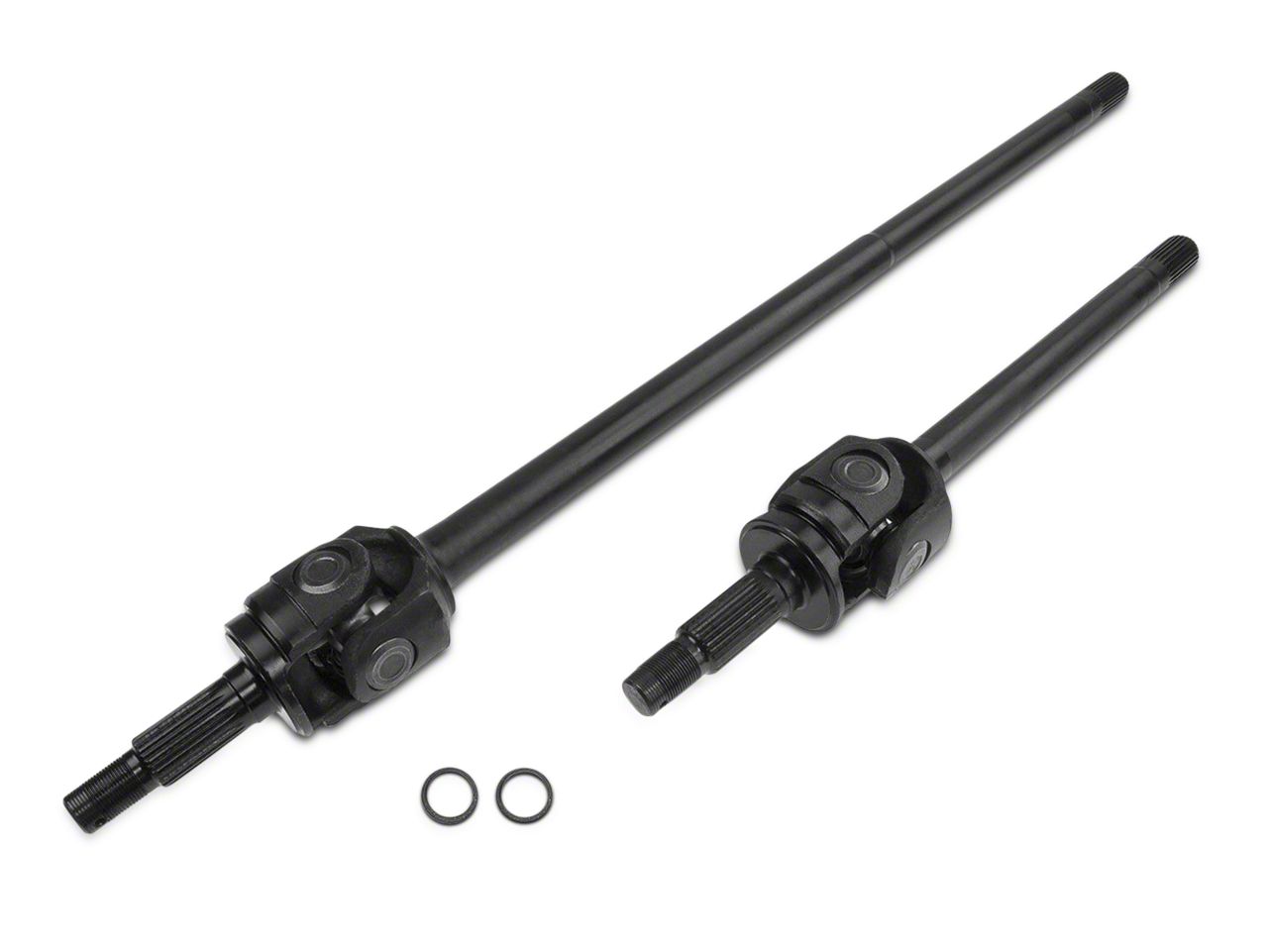

    What's in the Box
    • (1) Drivers Side Front Axle Shaft Assembly
    • (1) Passenger Side Front Axle Shaft Assembly
    Installation Info
    Tech Specs
    Will it fit my Wrangler?
    • TJ Rubicon 2 Door - 03, 04, 05, 06
    • TJ Rubicon Unlimited 2 Door - 05, 06
    • TJ Wrangler 2 Door - 97, 98, 99, 00, 01, 02, 03, 04, 05, 06
    • TJ Wrangler Unlimited 2 Door - 04, 05, 06

    You Might Also Like

    Customer Photos

    More Products You Might Like

    Q & A

    No questions about this product yet.

    Ask the First Question

    Recommended For You

    Customer Reviews (2) Write a Review

    Overall Rating 5

    out of 5 stars

    Installation Time:Full Day

    • Performance Gain 5 5
    • Fit 5 5
    • Bang For Your Buck 5 5

    • 5/5

      Installation Time: Weekend

      October 30, 2018

      Axle installation

      After taking the axle off the 1998 TJ, and after I sand blasted the axle, I took out old units and put the new units in, it took a weekend, but only because I took time to clean and put new seals in...


      Year: 1998Submodel: Wrangler

      Helpful (9)

    • 5/5

      Installation Time: Afternoon

      February 20, 2018

      Tuff shafts

      Been running these shafts with 35's. I have wheeled the jeep on some tuff trails lots of 4wheel drive. I have had 0 trouble with them.


      Year: 2006Submodel: Wrangler Unlimited

      Helpful (10)
