Superwinch 10,000 lb. SX 10000SR Winch with Synthetic Rope (Universal; Some Adaptation May Be Required)
Item JG6908
Our Price
$916.99 kit
Military, Medical & First Responders
$45.85 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Frequently Bought Together
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Lightweight, Compact Design – Fits in tighter spaces than traditional 10,000 lb. winches while reducing stress on the vehicle’s suspension.
- Permanent Magnet Motor with Dynamic Braking – Provides instant, no-load braking for enhanced safety.
- Internal Control Box – Improves radiator airflow and enhances visibility for camera-equipped vehicles.
- Full Load-Holding Automatic Brake – Securely holds loads up to 10,000 lbs.
- 4-Stage Planetary Gear System – Dual-range gearing: low gear (437:1) for maximum pulling power up to 10,000 lbs., high gear (156:1) for fast line speeds up to 3,500 lbs.
- Clockable Gearbox – Can be positioned in four orientations for flexible installation.
- Low Amp Draw – Delivers maximum winching performance using a single 12V battery.
- Ergonomic Pull-and-Turn Free-Spool Clutch – Enables quick, hassle-free range changes and smooth free-spool operation.

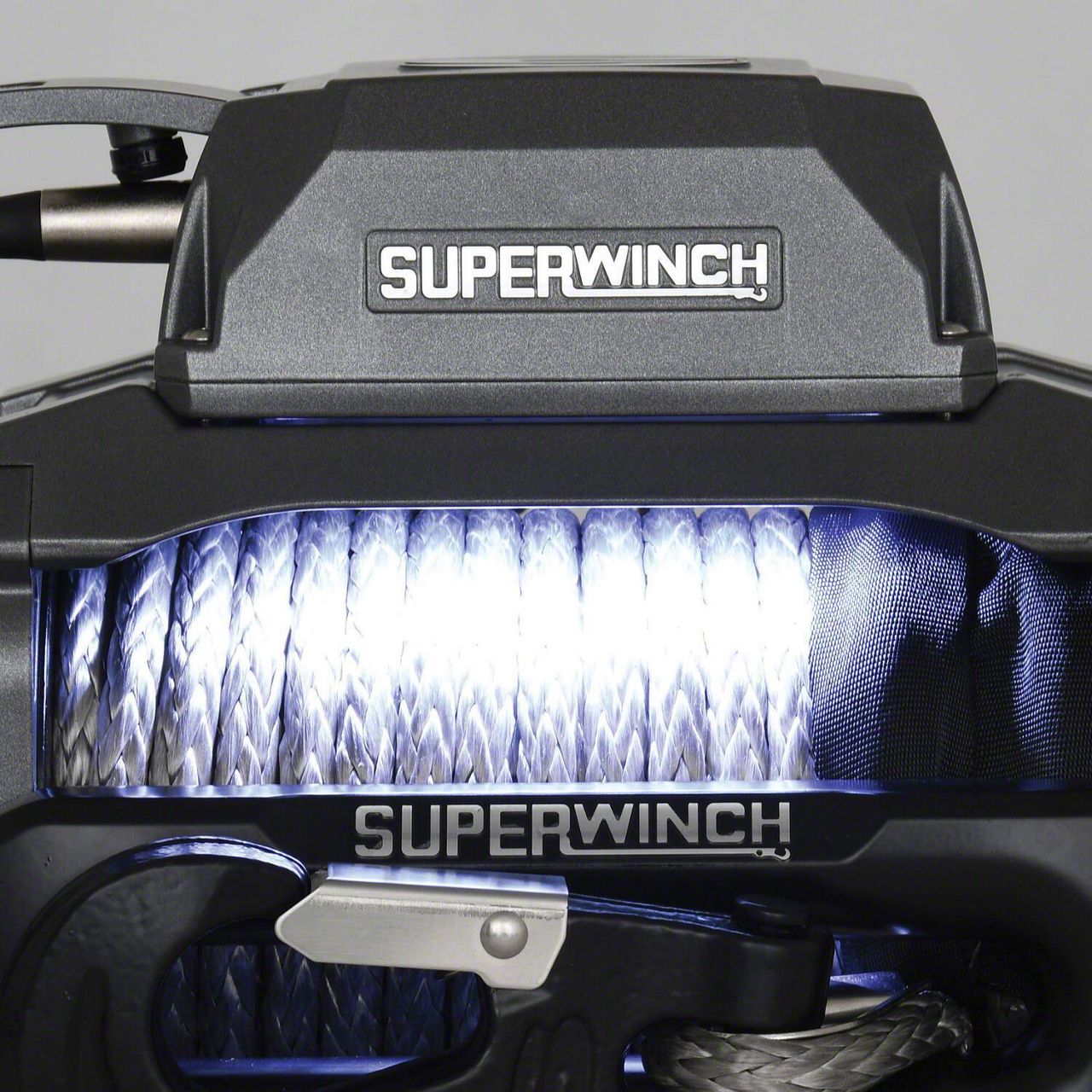

- Patented Drum Light – Ensures superior visibility in low-light conditions.
- 3/8 in. x 54 ft. Synthetic Rope with Integrated Soft Shackle – Eliminates all metal in the winch line for maximum safety.
- Overload Interrupter (OLI) – Automatically shuts off the winch at 10,000 lbs. to prevent potential vehicle damage.
- Multi-Function Wired Remote – Features an integrated, rechargeable flashlight for added convenience.
- Wireless Remote – Ergonomic design with MOLLE loop clip for easy access and storage.
| Brand | Superwinch |
| Winch Capacity | 10000 lbs |
| Winch Rope Type | Synthetic Rope |
| Winch Remote Type | Wireless |
Description
Meet the Scorpion 10000SR —Engineered for those who demand uncompromising strength and reliability when the job gets tough. This powerhouse winch packs a full 10,000 lbs. of pulling capacity into a lightweight, compact design that fits where traditional winches can’t, reducing stress on your vehicle without sacrificing performance. Equipped with a high-torque permanent magnet motor and instant dynamic braking, the Scorpion 10,000 features a versatile, clockable 4-stage planetary gearbox with dual-range gearing to delivering unstoppable pulling power. Safety comes standard with a full load-holding brake, integrated overload shut-off, and a 3/8" synthetic rope with soft shackle to eliminate metal-to-metal hazards. A patented drum light ensures superior visibility in low-light recoveries, while low-amp efficiency maximizes performance from a single 12V battery. Designed with convenience in mind, it also includes an ergonomic free-spool clutch and both wired and wireless remotes for ultimate control. When the terrain gets demanding, the Scorpion 10,000 is built to strike—delivering unmatched capability and confidence every time.
Specifications
- Winch Model: Scorpion 10,000SR
- Part Number: 1155401
- Rated Line Pull: 10,000 lbs.
- Motor: 1.9 HP
- Control Box: Internal
- Remote Control: 12' Handheld wired remote and wireless handheld remote. (Wired remote features flashlight with built-in lithim ION battery. Recharges while plugged into winch.)
- Gearbox: 4-Stage planetary with dual speeds
- Gear Ratios: High 156:1 / Low 437:1
- Clutch: Ergonomic Pull-and-Turn Clutch Handle
- Brake: 100% Full-load holding automatic mechanical brake
- Synthetic Rope: 54' (16.5m) 3/8" Diameter lightweight synthetic with UV protection
- Drum Diameter: 2.5" (64mm)
- Fairlead: Aluminum hawse
- Task Lighting: Patented drum light, rechargeable flash light
- Soft Shackle: Woven into winch line
- Warranty: Limited lifetime mechanical and 7 year limited electrical
- Net Weight: 53 lbs.
- Finish: Black powder coating
- IP Rating: IP68 waterproof and dustproof
- Dual Mounting Bolt Pattern: 10.0" x 4.50" and 6.38" x 4.50"
- Mechanical Warranty: Limited Lifetime
- Electrical Warranty: Limited 7 Year
Superwinch 1710201
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

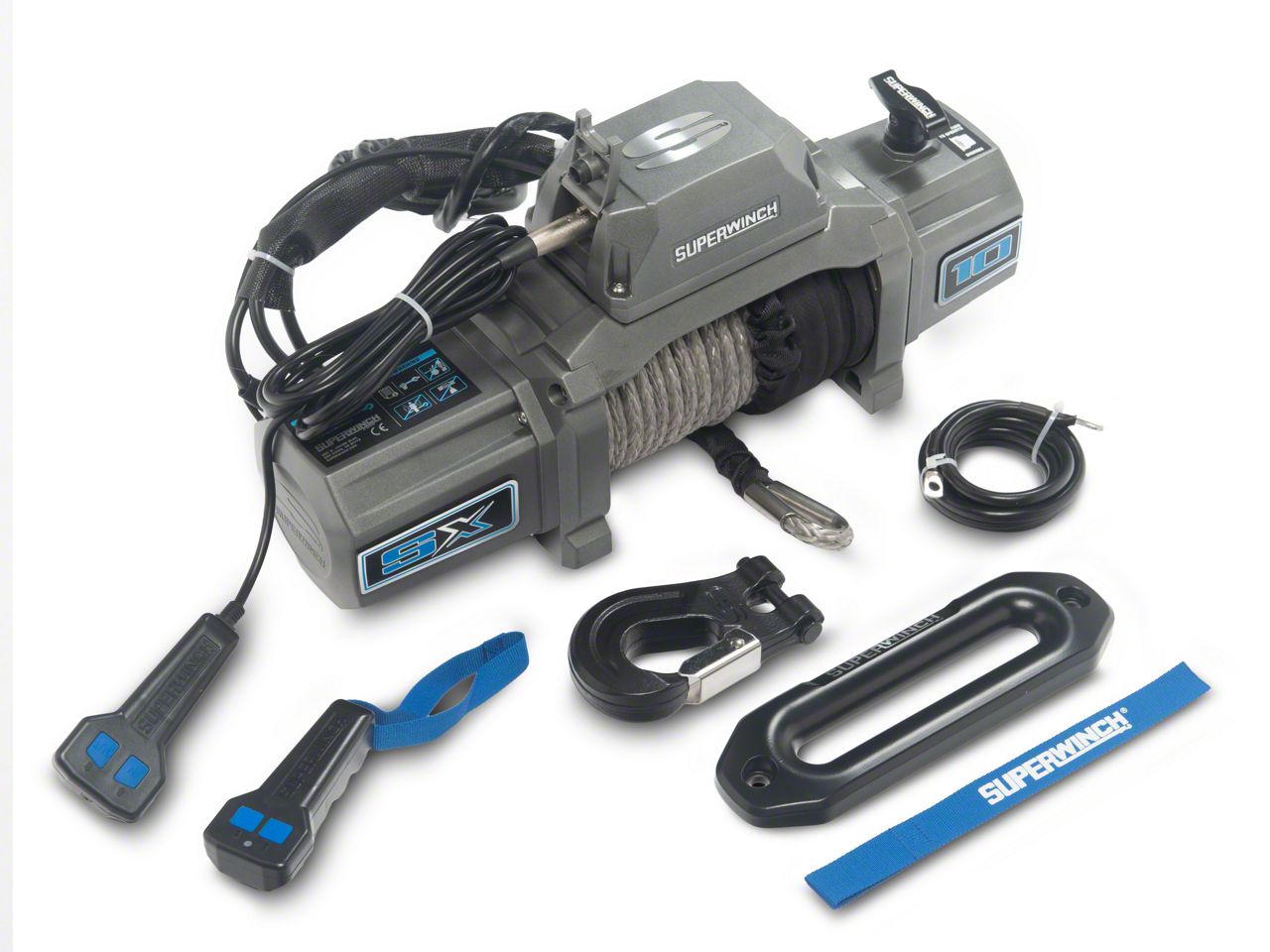

What's in the Box
- (1) 10,000-Pound Winch
- (1) Synthetic Rope
- (1) Hawse Fairlead
- (1) Hook
- (1) Hand Saver Strap
- (1) Remote Control
- Installation Hardware
