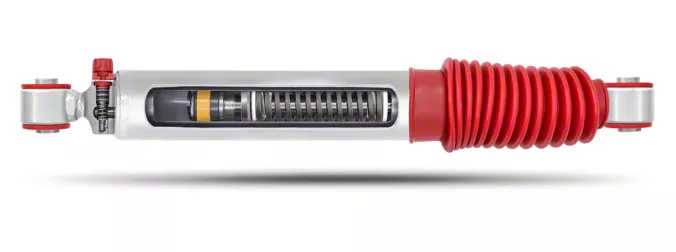

Rancho RS9000XL Extended Travel Rear Shock for 4.50-Inch Lift (18-26 Jeep Wrangler JL)Find parts that fit my vehicle

Item J138772-JL
Product Image
84 Reviews
Our Price

$143.76 each

Military, Medical & First Responders $7.19 Available in XT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

    Frequently Bought Together

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Nine Levels Of Performance With Nine-Position Easy-To-Adjust Knob For Customized Damping Control And Firmness
        • _x000D_
      • Designed For Hardworking Vehicles Including Stock Or Lifted Trucks, SUVs, And Jeeps That Tow, Haul Or Go Off Road
        • _x000D_
      • First Nine-Position Manually Adjustable Shock Series In The Off-Road Market
        • _x000D_
      • Nitrogen Gas Pressurized To 120 PSI To Minimize Air-To-Oil Mixture And Reduce Damping Performance Fade And Foaming
        • _x000D_
      • Application-Specific 18mm Nitro-Carburized Piston Rod To Resist Scuffs And Corrosion
        • _x000D_
      • Double-Welded Loops At Stress Areas And 1.25-Inch Sintered Iron Piston For Enhanced Structural Integrity
        • _x000D_
      • Up To 2.75-Inch Tri-Tube Body Filled With All-Weather Fluid For Cooler Operation And Increased Vehicle Control
        • _x000D_
      • Handles Internal Temperatures From -40 To 248 Degrees Fahrenheit
        • _x000D_
      • Polyurethane Rebound Bumper And Bushings Along With Graphite-Filled Fluon-Banded Piston To Absorb Harshness And Enhance Responsiveness
        • _x000D_
      • Low-Friction, Self-Lubricating Seal For Quicker Rebound And Smoother Compression
        • _x000D_
      • Premium Liquid Metallic Finish And Polyvinyl Protective Boot For Longer Life
        • _x000D_
      • Manual Adjustable Damping With Progressive Valving Type
        • _x000D_
      • Telescopic Shock Absorber Type With Loop Bushing And Sleeve Mounts
        • _x000D_
      • Boot Included For Protection
        • _x000D_
      • Body Diameter Of Approximately 2.18 Inches
        • _x000D_
      • Shock Stroke And Travel Length Of 9.3 Inches
        • _x000D_
      • Rod Diameter Of About 0.62 Inches
        • _x000D_
      • Double-Welded Loop Mounts At Both Upper And Lower Ends
        • _x000D_
      • Painted Silver Finish With Chromed Shaft Material
        • _x000D_
      • Internal Tri Tube Construction And Steel Body Material For Durability
        • _x000D_
      • Handcrafted For Performance And Durability Without Coil Springs Or Remote Reservoir
        • _x000D_
      • Includes Polyurethane Rebound Bumper, Bushings, And Dust Shield
        • _x000D_
      • Manual Damping Adjustment With No Hydraulic Lockout Or Ride Height Adjustment
        • _x000D_
      • Designed For Use With Raised Rear Height Between 3.5 And 4.5 Inches
        • _x000D_
      • Fits 18-26 Jeep Wrangler JL With Rear Lift Height 3.5-4.5 Inches. Extended Travel Shock Requires Aftermarket Rear Driveshaft Recommended To Prevent Contact With Fuel Tank Skid Plate During Maximum Articulation. Use To Depletion, Then Switch To RS994068 Shock.
        • _x000D_

      Description

      Premium Adjustable Shock. The Rancho RS9000XL Extended Travel Rear Shock for 4.50-Inch Lift delivers nine levels of manually adjustable ride control to optimize vehicle handling both on and off road. Designed for demanding applications such as towing, hauling, or trail driving, it provides enhanced damping performance that adapts to changing terrain and load conditions.

      _x000D_

      Construction and Appearance. This shock absorber features a durable 18mm nitro-carburized piston rod resistant to wear and corrosion, and a robust 1.25-inch sintered iron piston within a tri-tube steel body. Filled with all-weather fluid, it maintains consistent operation across a wide temperature range, and is finished with a premium metallic coating complemented by a protective polyvinyl boot to ensure extended service life under harsh conditions.

      _x000D_

      Installation. Installation requires moderate mechanical skill but no drilling, as it replaces factory mounts using double-welded loop bushings for reliable mounting. Designed specifically to fit lifted rear suspensions requiring extended travel, this shock requires an aftermarket rear driveshaft to prevent interference with the fuel tank skid plate during maximum articulation.

      _x000D_

      Warranty. This shock absorber is backed by a limited lifetime warranty, reflecting its built-to-last quality standards.

      _x000D_

      Application. Engineered to fit 2018 through 2026 Jeep Wrangler JL models equipped with rear lifts between 3.5 and 4.5 inches. The extended travel shock requires an upgraded rear driveshaft as recommended to maintain safe articulation and clearance with fuel system components.

      Rancho RS994068

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) RS9000XL Extended Travel Rear Shock
