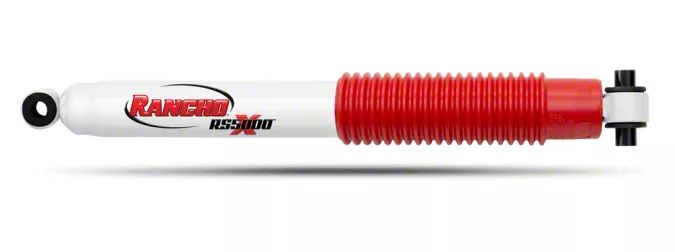

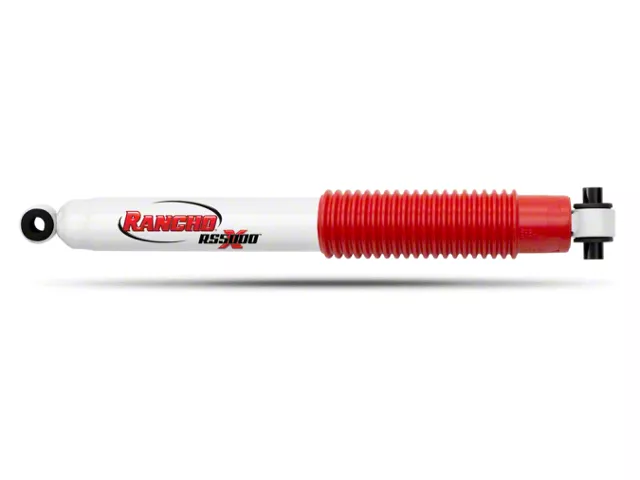

Rancho RS5000X Extended Travel Rear Shock for 3.50-Inch Lift (18-26 Jeep Wrangler JL)Find parts that fit my vehicle
Item J138764-JL
Our Price
$70.30 each
Military, Medical & First Responders
$3.52 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Frequently Bought Together
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Featuring a unique, exclusive valving system and advanced compression functionality _x000D_
- Delivers improved overall on- and off-road handling and performance _x000D_
- Cross Tuned technology with exclusive rebound valving system _x000D_
- Minimizes rough ride with progressive engagement valving custom-tuned for vehicle _x000D_
- Strong and durable with 16mm nitro-carburized piston rod _x000D_
- Double-welded loops at stress areas and 35mm sintered iron piston for added strength _x000D_
- Polyvinyl protective boot included _x000D_
- Large twin-tube body filled with all-weather fluid for cooler operation _x000D_
- Operates in extreme temperatures from -40 to 248°F _x000D_
- Polyurethane rebound bumper and rubber bushings absorb ride harshness _x000D_
- Fluon-banded piston enhances responsiveness to road conditions _x000D_
- Nitrogen gas pressurized to 150 PSI to reduce damping performance fade _x000D_
- Compression control valve custom-tuned to regulate fluid transfer _x000D_
- Low-friction, self-lubricating seal retains gas and oil for smooth operation _x000D_
- Painted finish with white body color and nitrocarburized shaft material _x000D_
- Twin tube internal construction type with progressive valving _x000D_
- Includes dust shield materials and rubber bushings but no coil springs _x000D_
- Shock type: telescopic with loop bushing and sleeve mounts _x000D_
- Shock stroke 9.78 inches, extended length 29.74 inches _x000D_
- Fits 2018-2026 Jeep Wrangler JL with 3.5 - 4.5 inch rear lift (Note: Requires aftermarket rear driveshaft to prevent contact during maximum articulation) _x000D_
| Brand | Rancho |
| Shock Lift Height | 3.50-Inch Lift |
| Shock Type | Non-Adjustable |
Description
Advanced Suspension Performance. The Rancho RS5000X Extended Travel Rear Shock for 3.50-Inch Lift is engineered to enhance off-road and on-road handling by incorporating advanced valving technology. This shock absorber improves vehicle control and ride comfort specifically for lifted Jeep Wranglers, absorbing impacts smoothly and maintaining stability over rugged terrain.
_x000D__x000D_Construction and Appearance. Crafted with a durable 16mm nitro-carburized piston rod and a 35mm sintered iron piston for added strength, this shock features a painted white finish for corrosion resistance. The twin-tube body contains all-weather hydraulic fluid to ensure proper function in extreme temperatures, ranging from -40 to 248°F, supported by a protective polyvinyl boot.
_x000D__x000D_Installation. Designed for straightforward installation without requiring drilling, these shocks fit directly with existing mounts. Installation can typically be completed by an experienced technician or skilled DIY enthusiast.
_x000D__x000D_Warranty. This product comes with a limited lifetime warranty, reflecting confidence in its durability and performance.
_x000D__x000D_Application. Specifically designed to fit 2018 through 2026 Jeep Wrangler JL models with a 3.5 to 4.5 inch rear lift. This extended travel shock requires an aftermarket rear driveshaft to avoid contact with the fuel tank skid plate during maximum suspension articulation.
Rancho RS55068
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) RS5000X Extended Travel Rear Shock
