Holley Fuel Tank Pickup; HYDRAMAT (11X11 CROSS) - CENTER OUT- 3/8

Item TT8909
Product Image
Sale
1 Reviews
On Sale

-10% $368.96 Was $409.95

Military, Medical & First Responders $18.45 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • Center Outlet Pick-Up With 3/8" NPT Fitting
      • Fitting Location Designed For Universal Use
      • Patent Pending Design Solves Problems Associated With Traditional Fuel Pick-Ups
      • Reduces Potential For Air To Enter Fuel System, Preventing Poor Engine Performance And Stalling
      • Ideal For Hard Cornering, Acceleration, Stopping, Inclines, And Low Fuel Conditions
      • Surface Tension And Fluid Wicking Allow Continuous Fuel Drawing Even When Partially Uncovered
      • Tiny Pores Seal Off Uncovered Areas To Maintain Fuel Flow From Other Areas
      • Unique Internal Reservoir Keeps Fuel Available During Extreme Fuel Slosh
      • Eliminates Need For Specialty Reservoirs, Sumps, And Pick-Up Pumps
      • Acts As A 15 Micron Pre-Filter For The Fuel Pump
      • Can Be Folded And Compressed For Easy Installation
      • Compatible With Alcohol, Ethanol, Methanol, And E-85 Fuels
      • Compatible With 2-Cycle Oil Blends Up To 20:1 Ratio
      • Not For Use With Most Oils Or Diesel Fuels
      • Fits Flat Bottom Rectangular Style Fuel Cells With Minimum Dimensions Of 11" Long And 11" Wide Cross. For Best Performance, Return Fuel Should Discharge Near The Pick-Up Of The HydraMat At A Minimum Distance Of 1 Inch Above The Mat. HydraMats With Female NPT Thread Do Not Require Sealing Paste Or Tape, Which Could Cause Fuel Pump Failure.

      Description

      Innovative Fuel Pickup Solution. The Holley Fuel Tank Pickup HYDRAMAT (11X11 CROSS) - CENTER OUT - 3/8" is designed to improve fuel delivery by preventing air ingestion during dynamic driving conditions such as hard cornering, acceleration, braking, and uneven terrain. It ensures consistent fuel pickup even under low fuel conditions by utilizing surface tension and fluid wicking technology, making it essential for both stock fuel tanks and racing fuel cells.

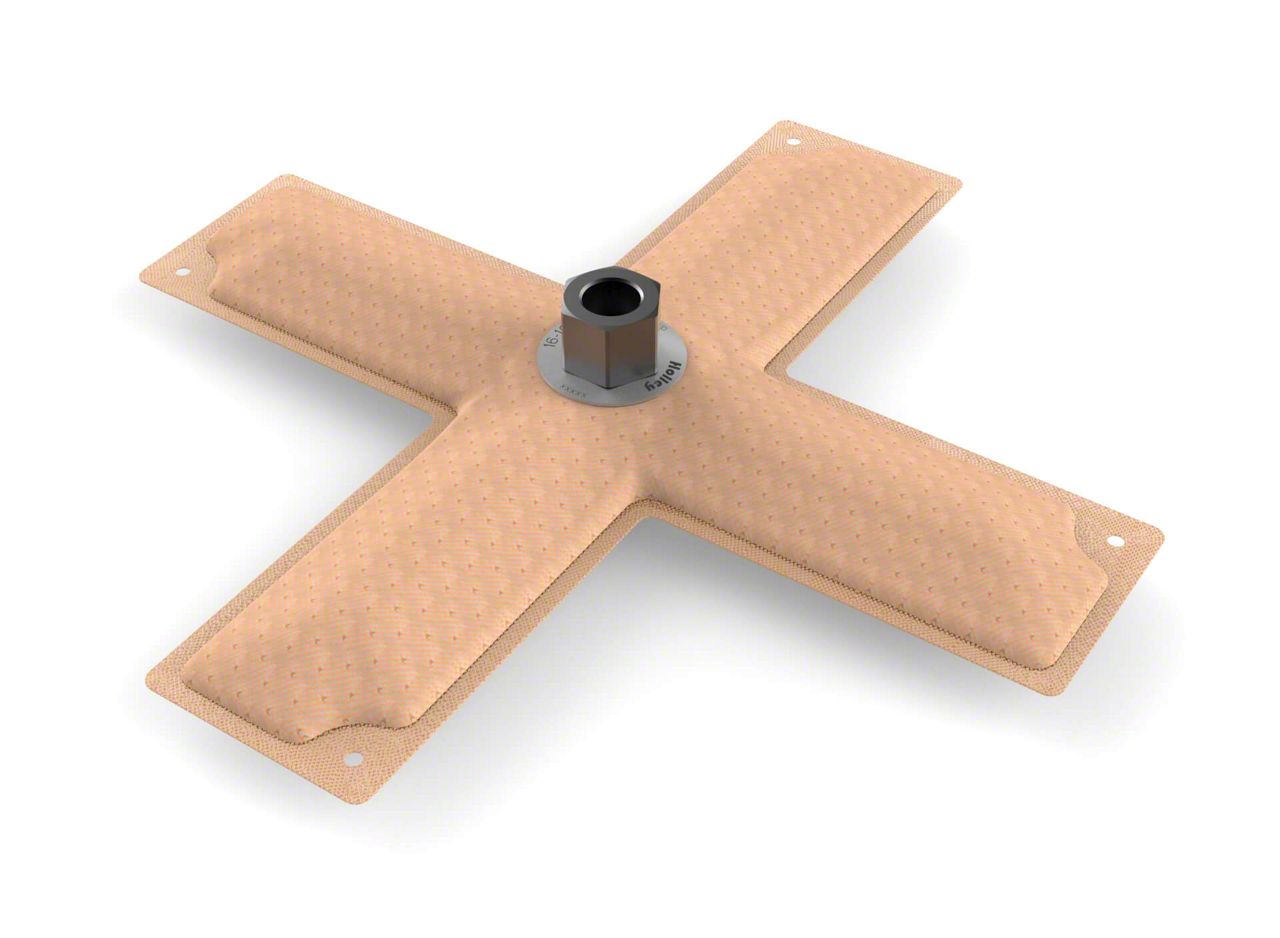

      Construction and Appearance. This product features a beige-colored media material composed of a unique fluid-wicking matrix that forms an internal reservoir. Its design includes tiny pores that seal off fuel-exposed areas via surface tension. It is flexible enough to be folded for installation and includes a robust 3/8" NPT female fitting at the center outlet for universal application.

      Installation. The mat can be compressed and folded through various fuel cell openings for straightforward installation. If the fuel cell matches the specified dimensions, no additional sealing materials such as paste or tape are necessary on the female NPT fitting, as these could cause fuel pump issues.

      Warranty. The product is backed by a manufacturer’s limited 90-day warranty. Application. Fits flat bottom rectangular style fuel cells with minimum dimensions of 11 inches by 11 inches, cross-shaped configuration. For optimal performance, the fuel return should discharge near the pickup, at least one inch above the mat.

      Holley 16-104
