Holley Fuel Tank Pickup; HYDRAMAT (8X8 CROSS) CENTER OUT - 3/8 IN

Item J140155
Product Image
Sale
1 Reviews
On Sale

-10% $285.26 Was $316.95

Military, Medical & First Responders $14.26 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • Center Outlet Pick-Up With 3/8" Female NPT Fitting
      • Fitting Location Designed For Universal Use
      • Patent Pending Design Solves Problems Associated With Traditional Fuel Pick-Ups
      • Greatly Reduces Potential For Air Entry Into Fuel System Resulting In Better Engine Performance
      • Effective During Hard Cornering, Acceleration, Stopping, Inclines, And Low Fuel Conditions
      • Utilizes Surface Tension And Fluid Wicking To Draw Fuel Even When Partially Uncovered
      • Tiny Pores Seal Off Fuel-Uncovered Areas For Continuous Fuel Supply From Remaining Contact Areas
      • Unique Internal Reservoir Keeps Fuel Available Under Extreme Fuel Slosh Conditions
      • Eliminates Need For Specialty Reservoirs, Sumps, And Pick-Up Pumps, Reducing Cost And Complexity
      • Acts As A 15 Micron Pre-Filter, Removing Need For Separate Filter Before Fuel Pump
      • Can Be Folded And Compressed For Easy Installation Through Various Fuel Cell Openings
      • Compatible With Alcohol, Ethanol, Methanol, And E-85 Fuels
      • Compatible With 2-Cycle Oil Blends Up To 20:1
      • Not Suitable For Most Oils Or Diesel Fuels
      • Designed To Fit Flat Bottom Rectangular Style Fuel Cells With Minimum Dimensions Of 8" Length And 8" Width
      • For Best Performance, Return Fuel Should Discharge Near Pickup At Minimum Of 1 Inch Above Mat
      • Female NPT Thread Does Not Require Sealing Paste Or Tape
      • Recommended Use Of Click Bond Stud Kits For In-Tank Fixed Stud Mounting

      Description

      Innovative Fuel Pickup Solution. The Holley Fuel Tank Pickup; HYDRAMAT (8X8 CROSS) CENTER OUT - 3/8 IN is engineered to prevent fuel starvation during extreme driving conditions such as hard cornering, acceleration, braking, inclines, and low fuel levels. This device ensures consistent fuel delivery by maintaining constant fuel contact at the pickup point, enhancing engine performance and reliability.

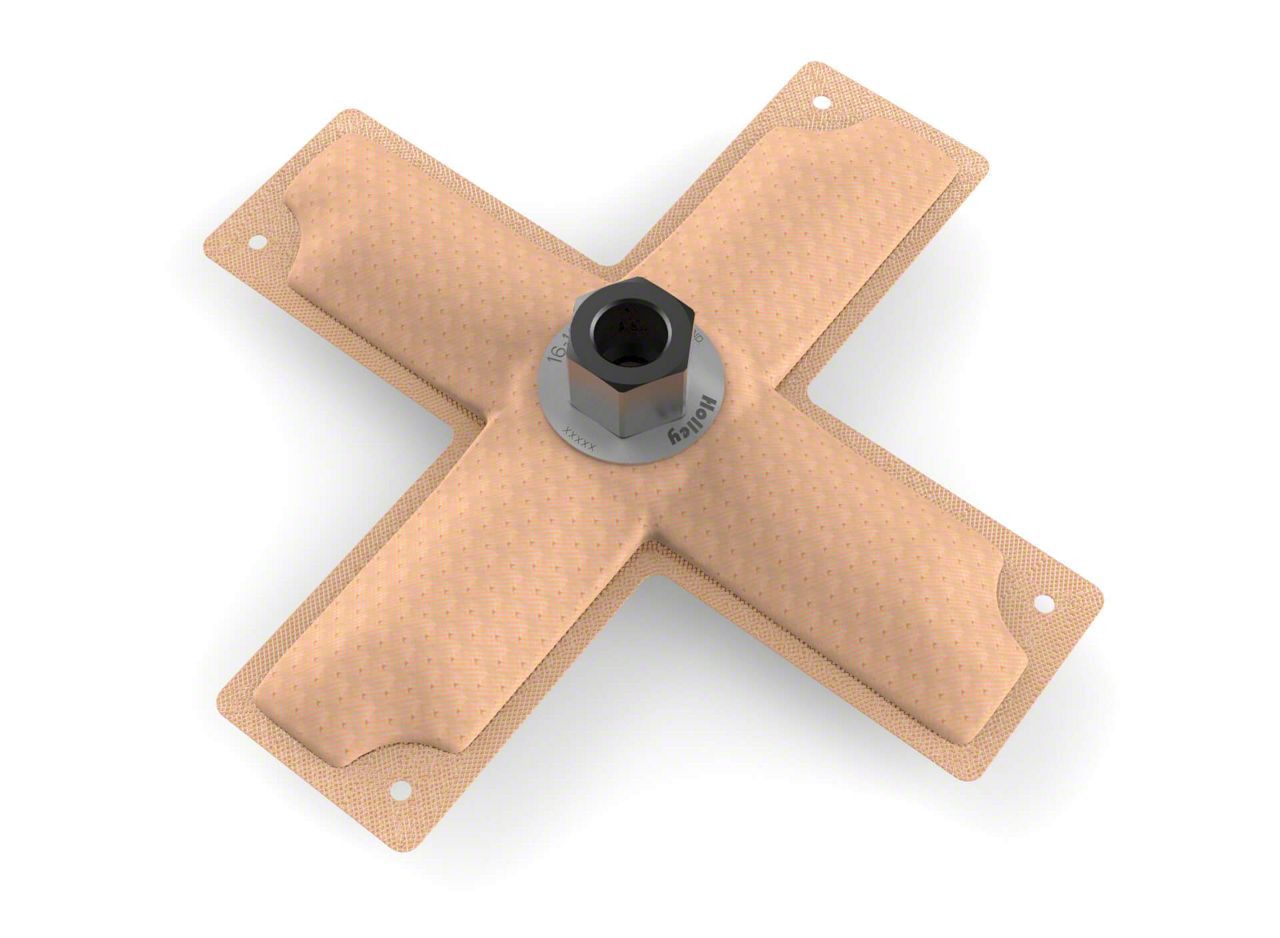

      Construction and Appearance. The HydraMat features a patent-pending design constructed from a beige fuel-wicking material with tiny pores that use surface tension to control fuel flow. Its flexible construction allows folding for easy installation inside compatible flat bottom rectangular fuel cells with a textured surface optimized for fuel absorption and filtering.

      Installation. Installation is straightforward with no sealing compounds required for the 3/8" female NPT fitting. Mounting may involve using Click Bond stud kits, and the HydraMat’s flexible design allows it to be compressed for insertion through various fuel cell openings.

      Warranty. This product includes a manufacturer’s limited 90-day warranty.

      Application. Designed to fit flat bottom rectangular style fuel cells with minimum dimensions of 8 inches by 8 inches. For best operation, fuel return should be directed near the pickup at least 1 inch above the mat.

      Holley 16-103
