Installation Time
(approx) 6 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Excessive Industries Front Long Arm Kit for JK Specific Front Axle; Bare Steel (07-18 Jeep Wrangler JK)Find parts that fit my vehicle
Item J256516
Our Price
$2,450.00 kit
Military, Medical & First Responders
$122.50 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Get Bind-Free Wheel Travel Through The Entire Suspension Cycle Of Your Jeep With Our 3 Link Front Long Arm Kit
- Tested On Personal Jeeps With 40” And 42” Tires Delivering Improved Ride Quality And Handling
- Enables Stable Freeway Driving At High Speeds With Less Driver Fatigue
- Focus On Proper Suspension Geometry For Superior Handling Rather Than Just Link Count
- Extensive Design Effort Ensures Optimal Performance Both On Road And Off Road
- Includes Heavy Duty Transmission Cross Member, Boxed Lower Links, Adjustable Upper Link, Weld-On Chassis And Axle Upper Link Brackets, And A Front Track Bar
- This Kit Pushes The Front Axle Forward 1.5 To 3 Inches Depending On Link Settings
- Transmission Cross Member Fabricated From High Strength 3/16 Inch Steel Plate, Precision Cut, Bent, And Welded
- Boxed Lower Links Constructed From 1/4 Inch High Strength Steel Plate, Adjustable On One Side And Fully TIG Welded
- Features MetalCloak Duroflex Joints On Both Sides Of The Lower Links
- Upper Link Made From 1 3/4 Inch X .120 Chromoly With TIG Welded Bungs, Adjustable On Both Ends
- Upper Link Also Uses MetalCloak Duroflex Joints On Both Ends
- Chassis Side Upper Bracket Is A Weld-On Part Made From 3/16 Inch High Strength Steel With A Welded Doubler Plate
- Doubler Plate Has Alignment Holes That Match Existing Factory Holes For Precise Installation And Distributes Load Over A Larger Area To Prevent Cracking Over Time
- Axle Side Bracket Made From 1/4 Inch High Strength Steel Designed To Use Joints On Both Sides Of The Link, Providing Increased Surface Area For Welding And Strength
- Front Track Bar Built From 3/16 Inch High Strength Steel Plate For Increased Clearance Compared To Tubing
- Track Bar Features A 7/8 Inch Heim Joint On One Side And A 7/8 Inch Uni Ball On The Other To Minimize Joint Movement
- Bump Stop Pads And Chassis Brackets Are Included With The Front Coil Over Kit Only; They Are Not Included Or Welded To The Lower Links
- JK Specific Super Duty Swap Axle Housing Included
- Fits 2007-2018 Jeep Wrangler JK
| Brand | Excessive Industries |
| Control Arm Length | Long Arm |
| Control Arm Placement | Front Lower and Upper |
Description

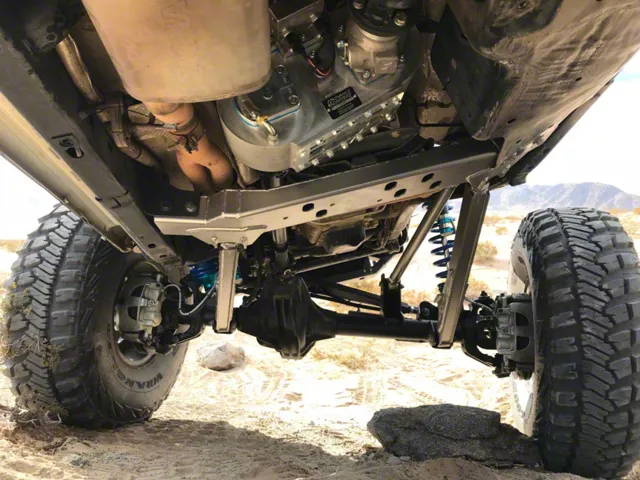

Exceptional Suspension Upgrade. The Excessive Industries Front Long Arm Kit for JK Specific Front Axle; Bare Steel substantially improves wheel travel and handling throughout the suspension cycle. Designed to provide both improved on-road stability and off-road durability, this kit replaces the factory configuration with optimized suspension geometry. This results in smoother freeway driving and enhanced off-road performance on large tires up to 42 inches.
Construction and Appearance. Manufactured from high strength steel, the kit includes a 3/16 inch steel plate transmission cross member, boxed and TIG-welded lower links made from 1/4 inch steel plate, and adjustable chromoly upper links. Advanced MetalCloak Duroflex joints are employed throughout, along with heavy-duty weld-on brackets for optimal strength and durability. The bare steel finish allows users to apply custom coatings or paint to match their preferences.
Installation. Installation requires welding the chassis side upper bracket and generally involves moderate to advanced mechanical skills. The included doubler plate features alignment holes that match factory holes, simplifying installation without the need for unusual drilling beyond these factory-aligned points.
Application. This front long arm kit is specifically engineered to fit 2007-2018 Jeep Wrangler JK models. It is designed to seamlessly integrate with JK chassis and axle configurations, including compatibility with the Super Duty swap JK-specific axle housing, ensuring a proper fitment without modification.
Excessive Industries EIJKUSSULAFXX5
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Long Arm Kit
