1.50-Inch Aluminum Wheel Spacers (07-18 Jeep Wrangler JK)

Item J106217
Call a Wrangler Enthusiast at 1-877-870-8556
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Market Price $158.99 You Save 13% ($21.01)
Our Price

$137.98 (set of 4)

FREE Shipping

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Video Review & Installation

      Hey, what's up, guys? Ryan here from ExtremeTerrain, and today I'm here with the Coyote 1.5-inch aluminum wheel spacer kit, fitting your 2007 to 2018 Jeep Wrangler JK. This is for those of you that want a quality spacer that is just gonna give you a little bit of an offset. Now, these are reasonably priced, you're gonna get all four spacers in this kit, and it's coming in right around $130, which I think is pretty average and pretty good for the kit. Some of the other options are right around the same, but you're only gonna buy them in pairs, and this one comes with all four.Now, when running larger tires on the factory wheels you can have some rubbing issues, and that's because of the offset. Those factory wheels are designed to stay tight, and of course, accommodate that factory size tire. When you're turning, the added width of those aftermarket tires, of course, can rub on suspension components, and that's something that we don't want. Now, of course, there is always the option of going with an aftermarket wheel, but aftermarket wheels are gonna cost a lot more, and if that is just not in your budget, or if you like the way that your factory wheels look and you're just trying to throw some larger tires on there, this is a very affordable fix, and it's a lot more cost-efficient than buying new wheels, getting them mounted and balanced, so on and so forth.Now these are going to space the wheels out one and a half inches, allowing you to run these factory wheels with those larger, wider tires, and this is gonna ensure that you won't rub. These are going to widen your stance, so it's gonna give you a little bit more stability when you're out there on the trails or if you're just driving on the highway. Now you can space out aftermarket wheels as well. If you have aftermarket wheels, you wanna space those out, give yourself an even wider stance, a more aggressive appearance, and just add to the whole stability of it, that is a possibility with those as well.Now, one of the nice things that I like about these, these are hub-centric. Now what that means is this inside is actually gonna sit on the end of the hub, that's gonna take all that shear force off of the studs. When you're bouncing around on the trails, when you're running those larger wheels and tires, you add a lot of downforce to the studs, and that's something that you can shear those right off. However, with these, you're not really gonna have that issue because it's gonna be held nice and tight and centered by the middle.Now these are made from 6061-T6 aluminum, so that makes them very lightweight, very corrosion resistant, and it makes them very strong as well. These are coated in a black powder coating, and that's gonna add to the corrosion protection of this whole system, it's also gonna make them blend into that black axle and just all that factory paint. Now the studs on these are made from 1045 heat-treated carbon steel. So these are very strong studs, they're really gonna hold up under abuse, you're not gonna deal with breakages, you're not gonna shear the studs off and have your wheel roll away from you, that's the last thing that we want when you're in the off-road.One thing you need to worry about when running spacers is going to be tire poke. Some states are really strict on the tire poke. And if you add these to a factory wheel or if you add them to an aftermarket wheel, your tires just sticking out out from under the fender flares, that's something that's not really legal in certain states, so you just wanna keep an eye on that and keep in mind on that. Another thing you wanna keep in mind when running wheel spacers is going to be the ball joints. You're sticking the wheel and tire out further, and that's causing a lot of stress on those ball joints. So if you have the factory ones, you're running a really large tire, you may wanna think about heavy-duty aftermarket ball joints. The last thing you wanna do, once again, is shear a ball joint off, wear those things out really fast, and have that breakdown on the trail.Now this is relatively easy to install. If you can take your wheels and tires off then you can install these on, they bolt right onto the hub. So I am gonna give this a one out of three wrenches on the difficulty meter. If you take your time, this should take you only about an hour to get all these installed. So with all that being said, let's hop into our install.Tools we used for this install: torque wrench, pry bar, 1/2-inch drive impact, 19-millimeter socket, Phillips-head screwdriver.Now this is something that you can do in your driveway at home. All I did was just jack up one side of the axle, pulled the wheel and tire off, and then we're gonna bolt these things on. So these are gonna come with brand new lug nuts. And the way this is gonna work, you're just gonna slide it right over top of that, then we're gonna take those brand new lug nuts that they gave us and we're gonna install them in here, we'll torque them down to factory specs, and then all we have to do after that is just throw our wheel entire back on. So let's get to it.So we get all these nuts started by hand, that way we don't cross thread anything. You don't need to use Loctite on them, you torque them to the proper specs shouldn't have any issue with these things coming loose. After we get them all started, we'll take a 19-millimeter socket, we're just gonna run them in. Now torque specs are gonna vary. Torque specs in the factory manual for factory specs they're gonna be anywhere from 85 foot-pounds to 125 foot-pounds, so you just wanna look up what yours are for your particular model. I'm gonna torque these to 110 foot-pounds. Now, of course, this thing is gonna spin when we go to tighten this up and torque it down. So there's a couple ways that you can do this, you can take a pry bar and stick it in between two of these studs, sit it on the ground or have someone hold it while you torque it, or, what I'm gonna do is just take a screwdriver, I'm gonna put it right in here inside of the rotor, and that way when this goes to spin it's just gonna stop it from spinning. All right. So what you wanna do is just go in a star pattern, just like your wheels. Once you get the spacers on, they're torqued down, you wanna throw your wheels and tires back on, torque them back down to factory specs, and then you're good to go.So that is gonna wrap up my review and install. For more videos and products like this, keep it right here at extremeterrain.com.

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • 1.5-Inch Offset Wheel Spacer
      • Machined Billet Aluminum
      • Grade 8, 1/2-Inch Wheel Studs
      • Lug Nuts Provided
      • Sold as a Set of Four Spacers
      • Fits 2007-2018 Jeep Wrangler JK Models

      Description

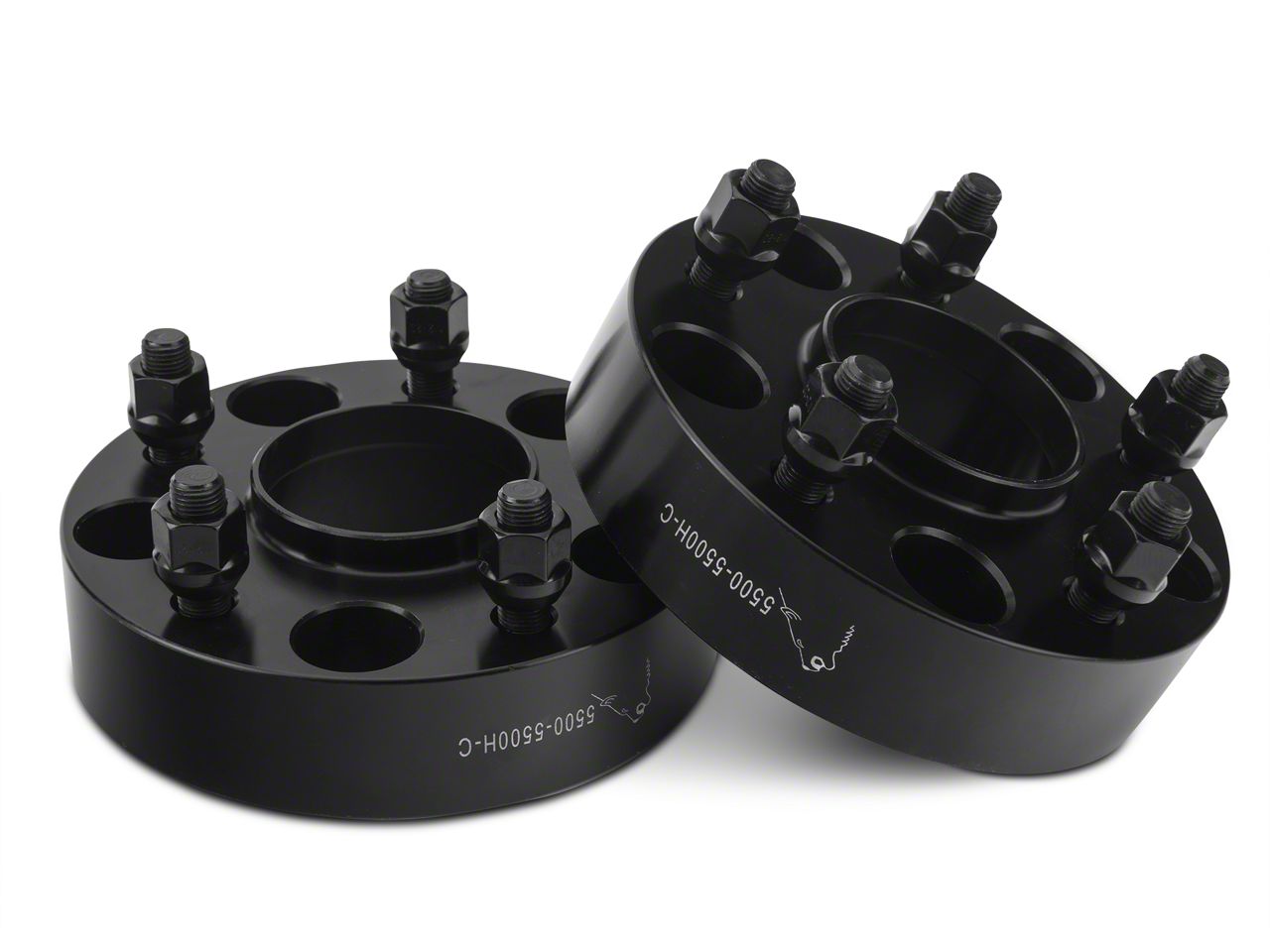

      1.5" Offset. These Coyote Accessories Aluminum Wheel Spacers provide 1.5" of additional inner wheel well clearance, allowing you to fit larger off-road tires or custom off-set wheels. These hubs provide a simple fix by incorporating a 5.0-to-5.0 wheel bolt pattern, maintaining your 2007-2018 Jeep's stock hub bolt option.

      Tough Stuff. These Wheel Spacers are constructed from 6061-T6 aircraft aluminum, ensuring they'll never suffer wear from corrosion or rust. The Spacers' studs are made of 1045 carbon steel use and are heat treated to ISO standards, making them capable of handling any rough impacts and big wheels.

      Spacer Specs. These Wheel Spacers measure 6.5" at the outer diameter and utilize a 5.0 standard Jeep bolt pattern. They provide 1.5" of additional clearance and use 1/2" wheel studs.

      Application. The Coyote Accessories Aluminum Wheel Spacers are perfect for your 2007-2018 Jeep Wrangler JKs. Sold as a set of four.

      Fitment: 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (4) Wheel Spacers
      • Lug Nuts

      Tech Specs
