(approx) 2 Hours
Light to Moderate mechanical skill required.
$289.99 (each)FREE Shipping
Hey, what's up guys? I'm Ryan from ExtremeTerrain. And today I'm here with the BBK 62 millimeter throttle body for your '91 to '03 wrangler. This is gonna be for someone who's looking for a little more power and throttle response out of your four liter and it's gonna be an upgrade over the stock throttle body. And you're gonna get more out of it than just adding a spacer. For the same price as a stock throttle body, you can upgrade to this unit. And for just under $300, I honestly think this is one of the best options to go with. This is gonna be an easy bolt on that comes with brand new gaskets and hardware to install and it's made in the USA. As far as install goes, I'm gonna give this a two out of three wrenches as you can install this in under two hours with simple hand tools. That being said, let's hop into the install. First step, we're gonna remove our factory intake tube using a flathead screwdriver. There's a clamp around here. We're gonna loosen that. Next we're gonna remove the PCV hose. This most likely is just gonna wiggle right off. Next we're gonna remove these clamps, disconnecting the top section of our airbox to the bottom. Then we can remove the whole assembly. So we're just about ready to remove your throttle body except we are gonna have to disconnect a few connections. This is gonna include the return spring, the throttle linkage, and then there's three plugs on this one. So we're gonna push down on these locking tabs, unplug this. Next we're gonna remove our throttle linkage. That's just gonna pry off to the side. And then our return spring. It's gonna pry off frontward and don't lose that. Now, this is not gonna be on your stock. This is for a hand throttle. You probably won't have this on your Jeep. We're gonna go ahead and remove that as well. After everything is disconnected, you're gonna use a 10 millimeter socket to remove your four bolts. With all four bolts removed, you're ready to remove your throttle body. So we have our stock unit out. We're just about ready to install the new one. However, I just wanna take a moment to cover some of the features that you're getting with this new one. Now, the stock throttle body is 55 millimeters on the inside. This new one is gonna be 62 millimeters. Even though the stock throttle body is 55, the hole in your intake is actually 62 millimeters. So this is gonna give a smooth transition for airflow. Not only is it gonna boost airflow, but BBK claims power increases of up to 12 horsepower with this. It's machine from rustproof 356 aluminum alloy and is much stronger than the stock unit. Not only that, but it comes with double sealed bearings and O-ring throttle shafts for a longer life and smoother operation. BBK provides you with new gaskets. So we just need to switch over some of the electronics and then we can get this thing installed. So now we're ready to switch over our sensors. We're gonna begin with the IAC motor. We're gonna use the security bit that they provide in the kit to take these four screws out. So now that we have all four screws out, we're gonna go ahead and pull this piece off. Now they give us a new gasket to install on to the new one. Next we're gonna switch over the MAP sensor. You're going to use a T25 Torx. Once you have that off, you're ready to switch it over to your new throttle body. So we're gonna start by pressing that on. So now that we have our throttle body assembled with all of our electronics, we're ready to install it. We're gonna place our gasket down, throttle body, and then we're gonna use the new bolts provided. We're gonna tighten them up with a five millimeter Allen key. Then we can hook up our linkage. We'll start with our return spring. Slide that on. Hook it onto our bracket, then we can take a throttle cable, clip that on then we can plug in our connections. After you have your throttle body tightened up and everything's connected, you can put your factory air intake back on. Then we'll tighten our clamp up, reconnect our PCV, and then we can latch our airbox down. So with everything put back together and tightened up, that wraps up my review and install. For more videos like this, check us out at extremeterrain.com.
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation

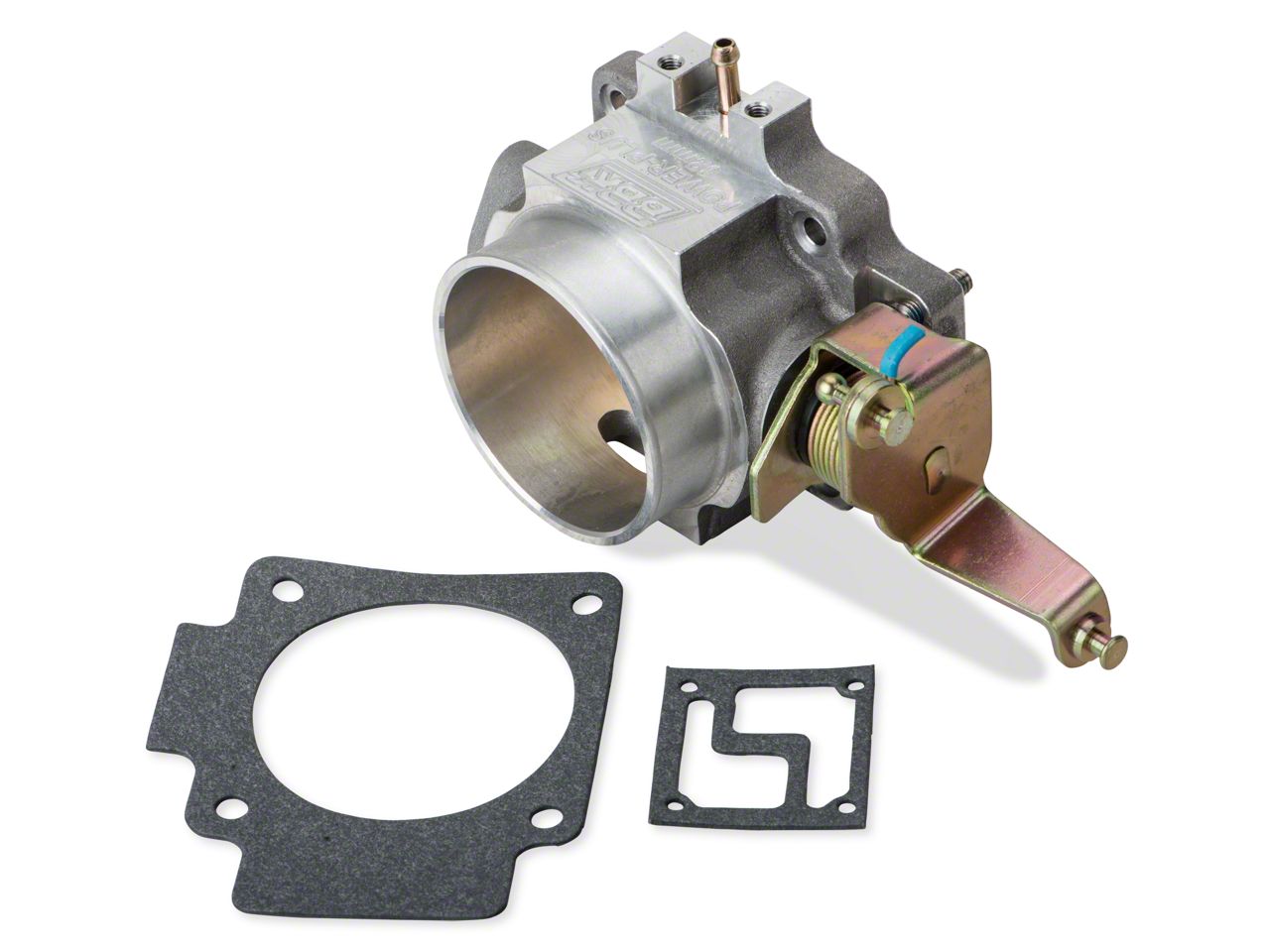

Increase Horsepower. Boosting your Wrangler engine's horsepower by anywhere from 7 to 12 horses is easy with BBK's 62mm Throttle Body from the company's Power-Plus Series performance parts. With a big 62mm inlet, this throttle body sucks in an ample flow of cold, dense air that powers up your Jeep's 4.0L engine strongly. Besides boosting aspiration, this component is precision CNC machined out of tough, rust-proof 356 aluminum alloy that will stand up to years of hard-charging off-road adventure.
Quality Construction. The 62mm Throttle Body by BBK is a performance part made from 356 aluminum alloy, cast and then CNC machined to precise tolerances. Features include die-stamped throttle linkages, double-sealed bearings, and an O-ringed throttle shaft. Designed for high airflow, this part includes a multi-port injection (MPI) style, and is built to exceed stock strength and quality standards. Horsepower gains range from 7 to 12 HP, varying by model and application. Made in the USA, this product is covered by a 1 year limited warranty from BBK.
Application. This BBK Power Plus Series 62mm Throttle Body is specifically designed to fit the 1991-2003 Wrangler YJ and TJ models equipped with a 4.0L engine.
Fitment: 1991 1992 1993 1994 1995 1997 1998 1999 2000 2001 2002 2003 Details
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
January 02, 2020
High Quality, Great Value
I bought the BBK Throttle Body to eliminate an accelerator sticking issue. The throttle plate shaft had worn enough to cause this problem. Installation of the new BBK was about a 30 minute job even though I had a problem getting the screw loose on the MAP sensor (very quick and easy). The kit even came with the tamper proof bit to remove the torx head screws on the throttle position sensor and idle air control. Due to the small increment of performance gain promised, this is difficult to assess, however on start-up I had no ECM codes, the engine runs smooth and accelerates without hesitation. I highly recommend for repair of worn throttle body. If your looking for huge performance gain your going to need to spend a lot more money.Helpful (1)
October 03, 2019
Well made product. Very simple 1 beer install. Watch the video first so you will have all your tools. Harbor Freight has a good selection of torx and Allen T handles. The kit comes with a torx bit. The 4.0 seems to have a good bit more "pick up" than before. Will be installing a better air filter soon to allow the throttle body to reach its potential.Helpful (4)
June 23, 2019
Everything went well easy to install and runs greatHelpful (3)
June 21, 2019
Easy as cake
Extremely easy install, way better then the stock one! 10/10 would buy again! (hopefully I don’t have too)Helpful (2)
June 11, 2019
NOT worth the time and $$$$ for the whole set up TB, Cold air IT, and Cat back exhaust, a waste of time and Money on a 4.0 99 TJ auto trans !!!Helpful (2)
May 01, 2019
BBK 62MM Throttle Body
Easy install. Toughest part was getting the bolts out of the existing throttle body for the sensors.Helpful (2)
March 30, 2019
What a difference!!
I'm gonna be honest here, I was pretty skeptical at first when I had read about the 4.0 body onto a 2.5 engine increasing fuel economy and horsepower. But, I'm now officially sold! This thing was super easy to install. I also bought a Hesco 1" 62mm spacer to accommodate the bigger butterfly valve on the new throttle body. Boy oh boy do I see an improvement. I really couldn't be happier with this product and will recommend this to all my 4 banger buddies out there!Helpful (1)
March 19, 2019
Seat of the pants power improvement. Throttle response is instantaneous.Helpful (3)
January 29, 2019
BBK 62mm Throttle Body
The 62 mm throttle body went on very nicely. I was not excited as to the performance to my 2004 LJ. Very little differences noted.Helpful (7)
December 21, 2018
I purchased the throttle body and the airaid spacer, along with a cold air intake. The Throttle body was great, everything swapped over from the original. Only issue was i could not get a 10mm socket on the back left bolt. I has to shave down a socket so it would fit. Also with the added spacer they supplied some "bolts" that are longer so you can mount the throttle body down through the spacer and thread into the intake. This i also had a small issue, trying to fish the bolt down through 2 gaskets and spacer and not cross threading the intake, well the bolts supplied to me are not long enough, i was only catching the fist 4-5 threads on the bolt and ended up stripping out the first few threads in my intake. So i tossed the bolts and went to my local hardware store and purchased all-thread I believe 4mm with lock washers and nuts. I cut the all-thread and made studs to fully hand thread down into the intake and have great penetration with the thread. Also made it easier to slide down a gasket then spacer, slide down a gasket, then throttle body. Other than a few install snags i still give 5 stars cause everything works the way it should and Jeep performance is up a bit, Still on the 1st tank of gas so curious to see if i pick up gas miles.Helpful (10)
To follow up on question posted earlier. Q:Just bought a poweraid throttle body spacer, would it be pointless to add a larger throttle body since the spacer is only 60 mm? Thanks in advance. A: Throttle body spacers would be designed around the OEM throttle body, and would not work well with an aftermarket throttlebody such as the BBK 62mm Throttle Body. Why wouldn't the throttle body spacer work with the BBK 62MM? I understand the spacer was designed for the OEM throttle body. Is it due to the larger diameter of the throttle body causing the valve to scrap the spacer causing it to stick in the open position?
Due to the design of the throttle body spacer this was created with the OEM throttle body in mind and this is indeed due to the diameter of the throttle body being too large.
Just bought a poweraid throttle body spacer, would it be pointless to add a larger throttle body since the spacer is only 60 mm? Thanks in advance.
Throttle body spacers would be designed around the OEM throttle body, and would not work well with an aftermarket throttlebody such as the BBK 62mm Throttle Body.
Is this CARB Compliant in California ?
Yes, this is CARB Compliant in the state of California with the CARB EO Number being: D-245-21
Hi, very interested in the your 62mm throttle body for a 2001 4.0L TJ. But I have not seen any before and after BHP or Torque comparisons taken from same vehicle on a dyno. Do you have these details please?
We do not have those details to offer, we do however have the estimate horsepower gains to offer, of course being between 7-12.
What is the difference between the 04-06 and the model that fits up to 03?
The 04-06 models require an adapter included with the kit for the IAC valve, while the 91-03 kit will not include the adapter.
This will only fit the 4.0L 91-03 Models.
Yes, the BBK 62mm Throttle Body is specifically designed to fit the 2004 to 2006 TJ Wranglers equipped with the 4.0L V6 engine.
Absolutely! This BBK Performance 62mm Throttle Body is certified 50 state smog legal by the California Air Resource Board under CARB-EO# D-245-21.
This BBK 62mm Throttle Body (91-03 4.0L Wrangler YJ & TJ)- would not fit the 2004-2006 Jeep TJ's or LJ's unfortunately.
Hello! This BBK 62mm Throttle Body is not compatible with they 4 cylinder Wranglers. Thanks!
Hello, 7-12 HP were most likely the Dyno results. With the stock air box the reading would be closer to the 7 HP range, and with an after market system it should be closer to the 12 HP range.
This BBK 62mm Throttle Body is compatible with most of K&N's Intakes, and we have confirmed the fitment of the K&N 57 Series FIPK Performance Cold Air Intake. If you perhaps a different intake, we would recommend measuring the coupler that connects to the throttle body, or you may give us a call, and we would be more than happy to confirm the fitment. If you have the intake listed below, this throttle body will fit for sure: http://www.extremeterrain.com/k-n-fipk-tj-5715141.html (item J12220)
