How to Install a BBK 62mm Throttle Body on your 1991-2003 4.0L Jeep Wrangler YJ & TJ

Installation Time

2 hours

Tools Required
  • 1/4" ratchet
  • 1/4" socket
  • 6"extension
  • 10mm socket
Extreme Terrain
Shop Parts in this Guide

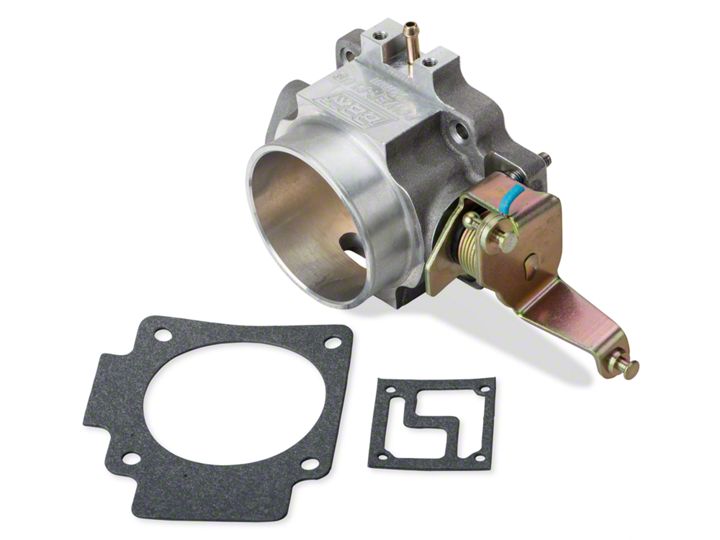

Included in this Kit:

BBK throttle body, MAP sensor gasket, throttle body base gasket, T-20 Torx bit, vacuum cap).

Disconnect cables

Step 1 Disconnect negative (–) battery terminal.

Step 2 Remove the intake hose assembly from the vehicle.

Step 3 Unclip the cable attachments from the throttle linkage.

Step 4 Unplug the electrical connections at the IAC, TPS, and MAP sensors.


NOTE

Some models do not use a throttle body mounted MAP sensor. For those vehicles we supply a vacuum cap to place over the nipple that is installed on the BBK unit.

Unplug connectors

Step 5 Unbolt and remove the throttle body from the intake manifold.

Step 6 Remove the IAC, TPS, and MAP sensors (if applicable) from the throttle body using the supplied T-20 Torx bit dropped into a 1/4" socket and install them onto the BBK throttle body using the supplied IAC gasket. Attach with the original hardware.


NOTE

When installing the MAP sensor, be sure to make a positive connection between the rubber hose and vacuum fitting.

Completed installation

Step 7 Mount the BBK throttle body on to the intake manifold using the supplied base gasket. Attach with the original hardware.

Step 8 Plug in the electrical connections at the IAC, TPS, and MAP sensor.

Step 9 Clip the cable connections onto the linkage of the BBK throttle body.

Step 10 Reconnect negative (–) battery terminal.


Please visit us at WWW.BBKPERFORMANCE.COM to view a fully photographed installation of this and many other BBK products.
