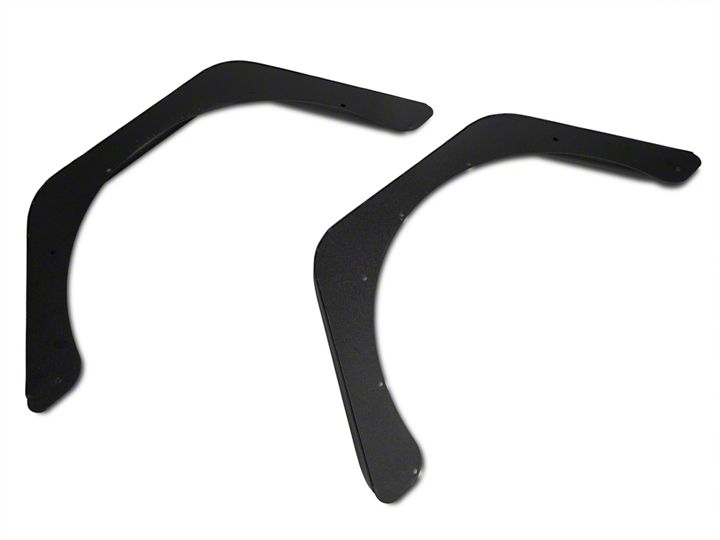

How to Install Barricade Rear Fender w/ 3 in. Flare on your Wrangler

Shop Parts in this Guide

Step 1

Locate and remove 8 factory bolts holding the factory flare onto vehicle. Using a 8mm socket remove all bolts. Discard all hardware.


Step 2

Remove flare from vehicle and discard


Step 1

With help from an assistant hold the supplied driver side fender (A) onto vehicle. Line up the fender holes with the vehicle. Install supplied M6x1.0 25mm Allen head bolt (C) with supplied M6 flat washer (E) through the holes in the steel fender (A) through holes in the vehicle. Place a supplied M6 flat washer (E) at the end of the bolt. Start a supplied M6x1.0 nylon locknut at the end of bolt. Repeat for remaining bolts. Tighten down all hardware using a 10mm socket.
