Find Winches for your Gladiator

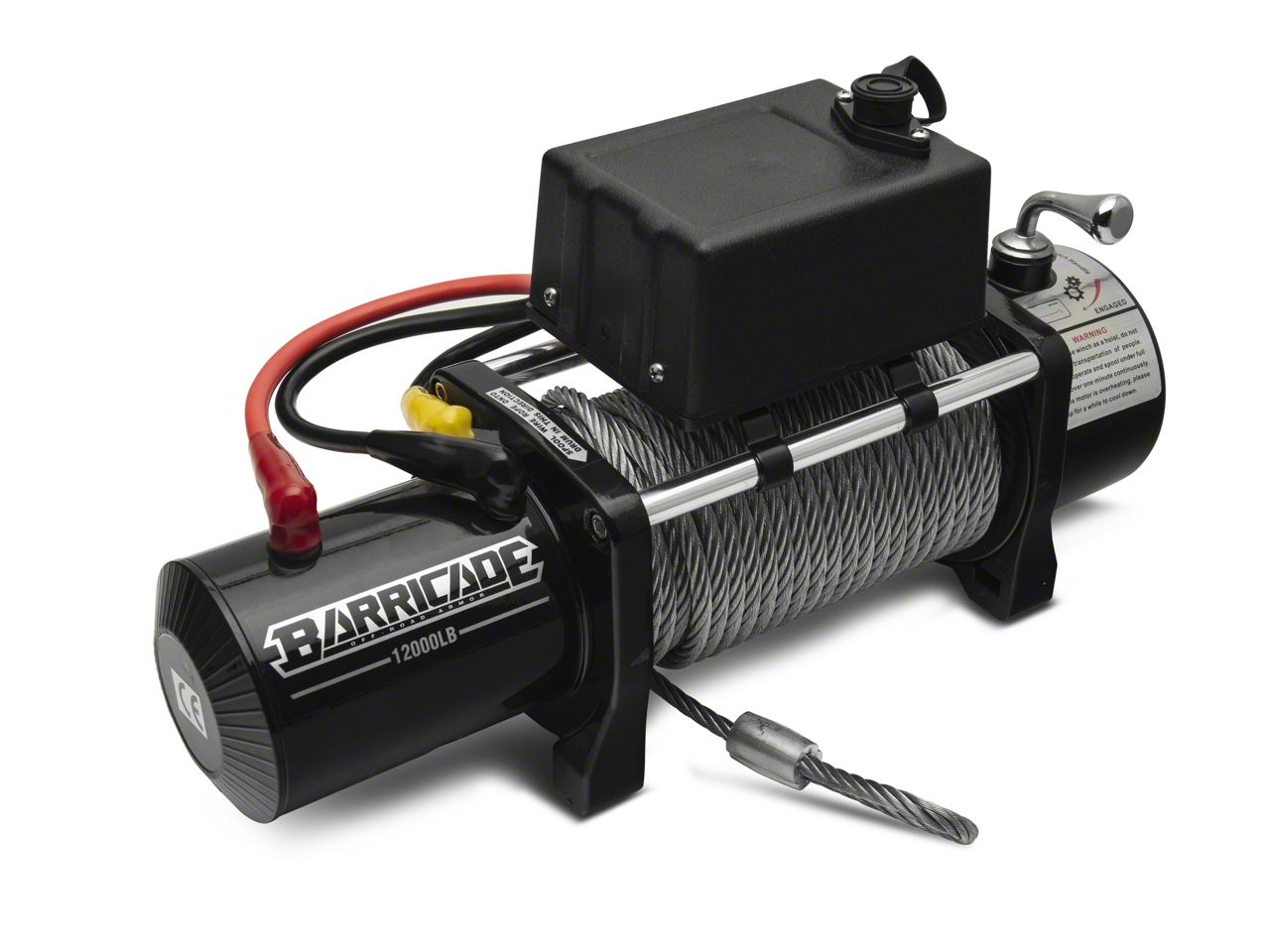

Barricade 12,000 lb. Winch (Universal; Some Adaptation May Be Required)
Item JG1539
$302.39
67 Reviews
On Sale
-28% $302.39 Was $419.99
Military, Medical & First Responders
Earn $30.24 in XT Cash Rewards. Get Verified
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Frequently Bought Together
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- 12,000 Lb., (5443 Kgs) Single-Line Pulling Capacity
- 6.6 Hp, 12 Volt, Series Wound Motor
- Three-Stage Planetary Gear with a 187.2:1 Ratio
- 94 Feet of 23/64 Inch Steel Winch Cable with Replaceable Hook
- Line Speed Under Full Load is 6.4 Feet Per Minute
- Weighs 58 lbs and is 21.1 Inches by 6.3 Inches by 8.6 Inches with a Mounting Footprint of 10 Inches by 4.5 Inches
- Black, Powder-Coat Finish
- Heavy Duty Rubberized Remote Control with a 12 Foot Lead
- Roller Fairlead
- Universal Application
Description
Pulling Capacity. The Barricade Off-Road 12,000 Pound Winch delivers everything you need for a safe off-roading experience. If you consider yourself an off-roader, you know the importance of having a winch, even on the easiest of trails. When you are searching for a winch, you want to make sure you get one worth your money, that will work every time, without ever having to worry if it will function or not. The Barricade Off-Road 12,000 Pound Winch is that winch. Barricade Off-Road builds this winch with budget and quality in mind. The 6.6 hp motor with a gearbox boasting a 187.2:1 gear ratio can pull you and your friends out of the messiest of situations, and is rated for a max pull weight of 12,000 pounds.
Winch & Line Specs. With 94 feet of 23/64 inch steel cable, you can be sure you always have enough winch rope to reach a recovery point no matter what the situation. Made to withstand the elements, the winch rope will last you for many years and many recoveries. The 12-foot lead on the rubberized remote ensures you can always reach your winch control box, even from inside of your Jeep.
Accessories. This winch comes with a 23/64 inch steel winch cable, hook, remote control on a 12-foot lead, and roller fairlead.
Application. This winch requires a battery with a minimum of 650 cold cranking amps to operate properly. Installs on all 2020-2025 Jeep Gladiator JT models.
Line Pull Speeds
- 0 lbs. - 33.3 ft./min
- 4000 lbs. - 16.8 ft./min
- 6000 lbs. - 12.8 ft./min
- 8000 lbs. - 10.1 ft./min
- 10000 lbs. - 8.8 ft./min
- 12000 lbs. - 7.6 ft./min
- Replacement Hardware – SKU U2396H
Barricade JG1539
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Hexagon screw
- (1) Spring washer M5
- (1) Clutch handle
- (1) Nut cap
- (1) Cup gasket
- (1) Spring washer Φ20
- (2) O-ring
- (1) Gear box housing
- (1) Shaft sleeve
- (1) Sun gear
- (1) 3rd Planetary gear assy
- (1) Dual inner gear
- (1) 2nd Planetary gear assy
- (1) 1st Planetary gear assy
- (1) Sealing washer
- (4) Hexagon screw M8x25
- (4) Spring washer Φ8
- (1) Gear box bracket
- (10) Spring washer Φ4
- (10) Hexagon screw M4x20
- (2) Bearing bush
- (2) Sealing washer
- (1) Transmission shaft
- (1) Drum assembly
- (1) Brake assembly
- (2) Tie bar
- (1) Motor assembly
- (4) Cross Recess Head Screw M4.2x12
- (2) Mounting bracket assembly for control box
- (1) Control box assembly
- (1) Fairlead
- (1) 3/8” Hook
- (1) Wired remote control
- (1) Battery negative (-) cord 1.8 m
- (1) Wireless remote control (Optional)
- (1) 0.75mm² brown switch control wire (S0107/08-31)
- (1) 0.75mm² red switch control wire (S0107/08-32)
- (1) 0.75mm² yellow switch control wire (S0107/08-33)
- (1) 0.75mm² yellow remote control wire (S0107/08-34)
- (1) 0.75mm² white remote control wire (S0107/08-35)
- (1) 0.75mm² red remote control battery “+” (S0107/08-36)
- (1) 0.75mm² black remote control battery “–” (S0107/08-37)
- (1) Green antenna (S0107/08-38)
- (1) 0.4 m short Black Cable with Yellow Terminal Sleeve (S0107/08-39)
- (1) 1.8 m long red battery cable “+” (S0107/08-40)
- (1) 0.4 m black motor cable with black sleeve (S0107/08-41)
- (1) Black Cable with Black Sleeve (0.75mm x 0.45m; earth) (S0107/08-42)
- (1) 0.4 m Short Red Cable with Red Terminal Sleeve (S0107/08-43)
- (1) Receiver for remote (S0107/08-44)
- (1) U Type Strap — Aluminum (S0107/08-45)
- (1) Solenoid 12V (S0107/08-46A) or Solenoid 24V (S0107/08-46B)
- (1) 3/8" UNC x 1-1/4" stainless steel bolts and spring washers (mounting hardware included; quantity not specified)
