- How to Install a Barricade Winch on your 1987-2015 Jeep Wrangler YJ, TJ or JK
$379.99 (kit)FREE Shipping
Open Box from $227.99
Hey, guys. Sara from extremeterrain.com, and today we have a review and install of the Barricade 9,500-pound winch. This winch features universal fitment, meaning it will mount up to most winch capable bumpers with a mounting footprint of 10 inches by four and a half inches. This winch has a 9,500-pound single-line pulling capacity and features a five and a half horsepower, 12-volt series wound motor. This winch comes with 94 feet of steel cable with a replaceable hook. It also includes a controller with a 12-foot lead as well as this roller fairlead that mounts to the front of your bumper. Coming in at around $370, this winch is on the lower end price-wise when compared to other winches of the same rating. This is mostly due to the steel line. Now, some great parts about steel is that it is abrasion-resistant and it is less maintenance and synthetic line. However, the one downside to steel is that if it does break, it has a tendency to fly through the air, causing damage or injury, where synthetic would just fall to the ground. If you're worried about this, you can definitely add a winch line dampener which would cut down on this. However, if you are an avid off-roader, you use your winch a lot, you might want to consider spending the extra money on a synthetic line. Some of the downsides of synthetic line, in addition to being more expensive, is it's not quite as abrasion resistant and will require more maintenance than the steel line. So, for the occasional off-roader, the steel line will be more weather resistant, and it's gonna save you some money. I'm giving this install a two out of three wrenches on the difficulty meter. It can be done in approximately an hour. So, let's jump right into our install. For this install, we used a 16-millimeter wrench, Phillips head screwdriver, needle nose pliers, cutters, 10, 14, 16, and 17-millimeter sockets, three and six-inch extensions, three strive ratchet, and an impact gun. So, before we can mount our winch to our bumper, we do need to prep the windshield a little bit. We're gonna start by mounting the control box to the top of our winch.Grab your control box, line up these hooks on the front bar and these tabs on the back bar. These tabs are held on with two Phillips head screws. You may need to loosen them in order to clear the bar. Grab your Phillips head screwdriver and tighten these down. With our control box mounted, we can now mount each lead to its corresponding color. I'm gonna flip this around so you can get a better look. This yellow wire is gonna go to the one with the yellow ring around the bottom here. Remove the nut and one of the washers. Route the lead with the yellow boot underneath the others and over the top of the stud here. Replace the washer and the nut and grab a 14-millimeter socket and tighten this down. Moving to the black wire, remove the nut over the stud with the corresponding black ring around the bottom and one of the washers. Route the wire with the black boot over the top of the stud. Replace the washer and replace the nut. Tighten this down. Repeat that process for the final power wire. Once all of these wires are attached, don't forget to put the boots over the top.We're now gonna turn the winch to the side so we can attach the two ground wires to the bottom lead. Starting with the smaller ground wire, we're gonna attach this one. Remove the nut here as well as the lock washer. Now, we're going to attach the longer black wire. One end is gonna go to the bottom of our winch, and the other one attaches to the battery. Replace the lock washer and the nut. Grab your 14-millimeter socket and tighten this down. So, that's gonna be it for the wiring on our winch. Later on, these other two ends will connect to our battery, but for now, we're gonna get this roller fairlead mounted on our bumper. This fairlead will mount to the front of your bumper, right on the outside here. So, grab the included hardware and let's get these mounted up.Grabbing the shorter hardware with one washer on the bolt side, slide it through the mounting bracket on your roller lead, and then through the hole on your bumper. Once it's lined up, grab the lock washer and the nut and put it over the back end of your bolt. Repeat that with the other side of the bracket. Using a 16-millimeter wrench, hold the bolt head on the side of your roller lead and a 17-millimeter socket. Tighten down the nut at the back of your bumper. Tighten down the other side. Now, we can grab our winch and get it in place on our bumper, lining it up with the mounting holes. Slide the square nuts into the tabs on your Barricade winch. Repeat that with the remaining nuts, one on each corner of your winch. From underneath the bumper, line up the bolts with the mounting holes and tighten these down. Grab your 16-millimeter socket, and you may need an extension here, and tighten this down.We can now pop the hood so we can hook up the positive and negative lead on our winch to our battery. Now, we can run our wiring through the bottom of the grille and up into our engine bay. We're gonna route it around the edge of the engine bay here into our battery. We routed our ground wire around the edge of the engine bay here. Our power wire was a little bit shorter, so we went under the intake and popped out right here. You can route this however you're comfortable with in your Jeep. Just make sure that it is up out of the way of anything hot or moving and then zip tie, so it doesn't move around in your engine bay. But now we can disconnect our negative terminal on our battery so we can hook up our leads. Grab a 10-millimeter socket and disconnect the negative terminal. Going to the closest of the 10-millimeter nuts, disconnect this from the positive terminal of the battery using a 10-millimeter socket. Place the positive lead over this terminal on the battery and replace the nut. Grab your 10-millimeter socket and tighten this down.We're now gonna remove the nut on this side of our negative terminal so that we can now connect the lead from our winch. Replace the nut and tighten this down using your 10-millimeter socket. Now we can replace the negative terminal on our battery. Tighten down this nut to attach our negative terminal. With our wiring complete, close up the hood, and now we can finish our winch before we test it. At this point, we can release the zip tie that's holding the end of our cable so that we can finish it through the bumper and fairlead and attach our hook. Remove the cotter pin and then remove this pin out of our hook and install it over the islet of our cable. Re-Install your cotter pin and then just remember to bend the larger end up, so it doesn't fall out.Now, if you'd like, you can install this included flag over the end of your hook. All right. Let's test out our winch. The handle on your winch should be in the engaged position. If you'd like to pull some cable off this spool, simply flip this handle around and roll it out. To hook up your controller, remove the rubber boot, neutral lineup this connector with this tab on the bottom here that goes in the slot right here. So, with this controller, you're able to control the winch and winch it out or back in with this button. So, the controller does have quite a bit of length on it to help you out in all those emergency situations, either on the trail or in the office. So, once you've tested your winch, you can spool it back in under some load and you can either store it directly against this fairlead, or if your bumper comes to these nice d-rings, you can hook it to those and then pull it tight. All right. So, that is gonna do it for the review and install of our Barricade winch. Remember for all things Jeep, keep it at extremeterrain.com.
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation

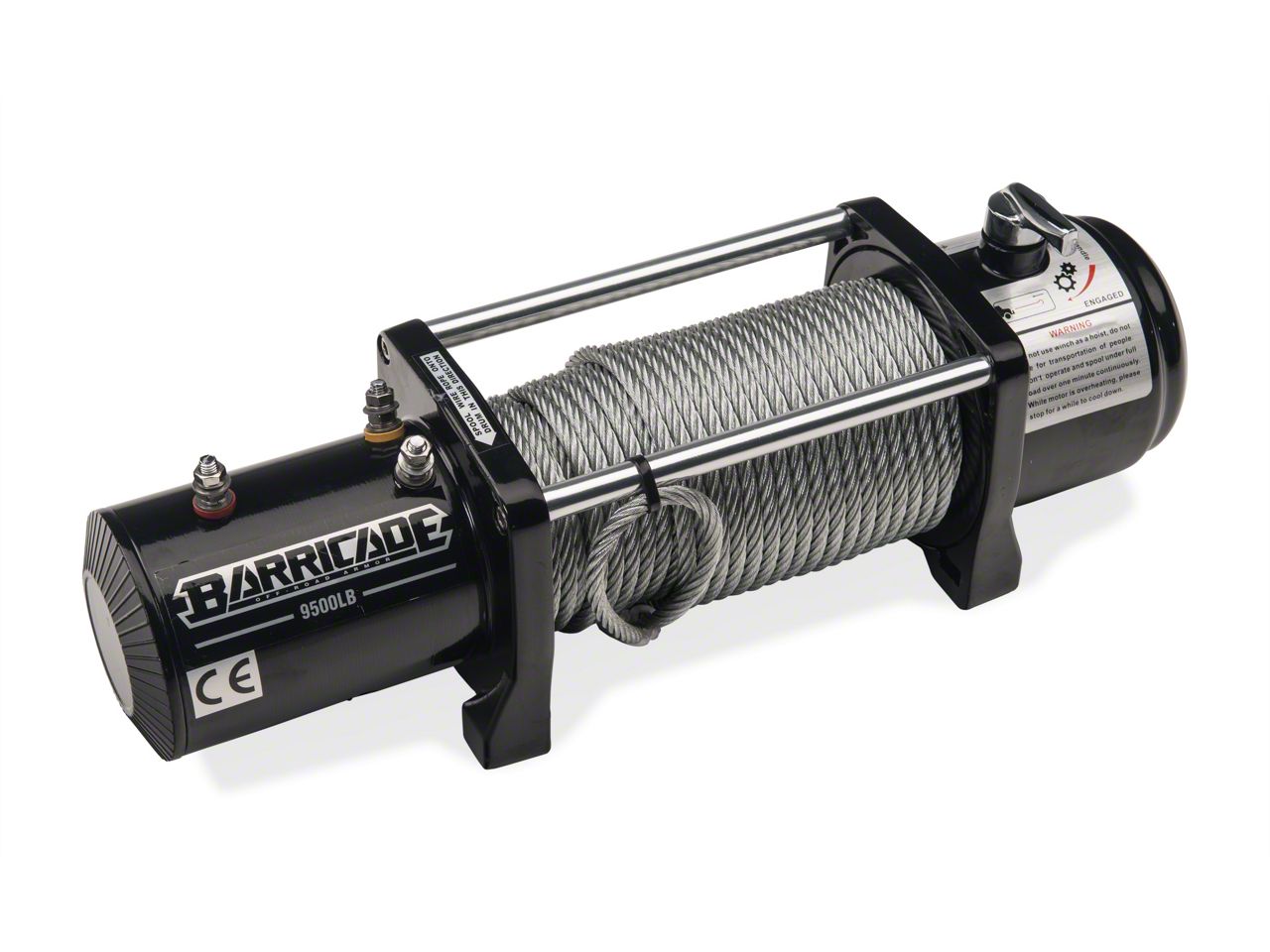

Pulling Capacity. Barricade Off-Road's 9500 lb winch is essential for any off-roader whether you're on easy romp through the woods or a competition course. This winch provides reliable pulling power for when you and your Jeep find yourselves stuck. Its 5.5hp, 12-volt motor with a gear ratio of 195.4:1 can recover your Jeep from the deepest mud or biggest rock jam.
Winch & Line Specs. This Barricade Off-Road winch comes with everything needed to get started, straight out of the box. The 94 feet of 21/64 of an inch steel winch cable is made to last you years and resist the elements you put it through. Matched with the two-way automatic, in-the-drum braking system you know you can always rely on this winch to hold your rig.
Accessories. This winch comes with a 21/64 inch steel winch cable, hook, remote control on a 12 foot lead, and a 4-way aluminum roller fairlead.
Application. This winch requires a battery with a minimum of 650 cold cranking amps to operate properly. Installs on all 1987 - 2020 YJ, TJ, JK or JL Wranglers.
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
January 12, 2020
Great winch but the cable was never connected
Bought this winch a while ago and finally hit some hard trails that I had to use it on. When I pulled it out and connected it to the tree and tried to bring the cable in it was just free spinning. So I made sure it was off free spool, it was, the problem was the end of the cable usually is bolted to the drum. But In my case it wasn’t.Helpful (2)
December 21, 2019
be sure to mount when the bumper is off the jeep
Photos of this winch do not show the control box mounted on top of the winch. I am concerned about it being pulled off when off roading in brush country I know it is protected by a bull bar, but still I was hoping it was down along the side of the winch. It free wheels in 2 positions, the free wheeling position, and the off position... Not happy with that. I would mount on bumper before the bumper is mounted if you get the same barricade bumper I purchased. Not as easy as the lady in the video makes it lookHelpful (3)
November 22, 2019
This is a great winch for the money. The install video with Sara was perfect. I did this install without even touching the directions. The install took about 2 hrs and was pretty simple.Helpful (1)
November 19, 2019
Does what it is supposed to do, not to bad to install, and looks great!Helpful (1)
September 01, 2019
I’ve had this bumper since it came out. It holds my earn 9.5 CTI no problem and it looks great. It’s a little on the heavy side it’s held up well after years of wheeling.Helpful (1)
August 16, 2019
The build quality of it is OK to install insulation my 16-year-old and 15-year-old kids did it in less than two hours. for an entry-level I would recommend it because it is the best buy for the money. Now the winch quality though is the only thing we do not like about the winch. it is slow sluggish and cheaply made. The controller box plastic was cracked and broken but if you install it extreme terrain will not want to honor the warranty according to (Nicholas) so that is why I am only given it a 1 star review is because Nicholas didn’t honor the winch warranty instead he preached policyHelpful (4)
July 20, 2019
Installation in less than an hour. As the video says I had to take the bumper off to install it. Haven't used it yet, but looking forward to it!Helpful (1)
July 14, 2019
Very tough winch. Straight forward install. I haven't had the opportunity to get stuck yet but I'm actually looking forward to it with this mounted on the jeep.Helpful (1)
July 03, 2019
Amazing exactly what I wanted!
Amazing could not have received a better product. Was a bit skeptical at first but once I installed my Jeep wasn’t just more beefy but was able to pull the weight the item stated.Helpful (1)
June 29, 2019
Took no more than 30 minutes. Directions aren't all that great, but there are plenty of tutorials online. Looks great!Helpful (1)
Will I need to buy a winch mounting plate? Or is that included?
The Barricade 9,500 lb. Winch (Item Number J100204) does not include the winch plate, a winch plate would need to be purchased separately in order to mount this on your Jeep.
My jeep doesn't look to have a place to mount the silver wire feeder for this winch... I have a DV8 front bumper. It does have a wench mount but doesn't seem to have a place to install the front silver guard... How does this install? Any photos of the part separately so I can see the bolt holes snd where i could mount it. Also, is that even required to be able to use the winch.
The silver guard that is included with the Barricade winch: https://www.extremeterrain.com/barricade-12000lb-winch-j100205.html is called a roller fairlead. The fairlead will mount to some aftermarket bumpers that have a mount in front of the winch mount. This guard is not necessary, if your bumper does not include a place to mount the roller fairlead in front of the winch. The winch can still be used with out it.
I understand it can't go underwater. Can it hold up to heavy snow or rain fall? Is a cover absolutely required to prevent water failure?
The Barricade 9,500 lb. Winch is not rated to be submerged, but it is water resistant- rain and pressure washer would be fine. We would suggest a cover to help prevent water damage and to prevent damage to the winch line. Neither synthetic or metal lines are meant to be exposed to the elements for extended periods of time.
Sorry, I hit the wrong button earlier. I need to know if you have a submersible winch.
The Barricade winches are not submersible at this time. The Smittybilt Gen2 X2O winch is a great submersible option.
Is the weight of the fair lead included in the weight of the winch?
No, the weight of the fairlead is not included in the weight of the winch.
At this time we do not carry a winch plate for any of the Barricade tube bumpers.
That bumper with this winch would not need anything else to make then work together.
The Power Draw can get up to around 480 AMPS under full load. The Duty Cycle would be approx 5 min on with a 30 min cool down. But can depend on the load on the winch.
The Barricade Winch will fit the Deegan 38 Front Bumper.
The Barricade Winch absolutely allows the user to change the rope to any style or size at any given time.
The Barricade 9500 lb winch is manufactured overseas.
The Barricade 9,500 lb. Winch will take approximately 1 hour for installation depending on your mechanical capability. That installation time will include mounting thew winch and running the wiring for the switch.
If the stock OEM bumper on the JL has a mounting winch plate then this will fit on that. XT7SlotJ4Y
The Barricade 9,500 lb. Winch is 8.6" tall with the solenoid.
This winch will include everything you will require for installation including hardware and a wiring harness.
(approx) 1 Hour
Light to Moderate mechanical skill required.
What's in the Box
|Manufacturer||Barricade Off-Road||Line Capacity||9500lb|
|Motor Specs||5.5 hp, 12-volt series wound||Line Type||94ft, 21/64 inch Steel cable|
|Gear System||195.4:1, Planetary||Warranty||Lifetime Limited|
