Find Winches for your Tacoma

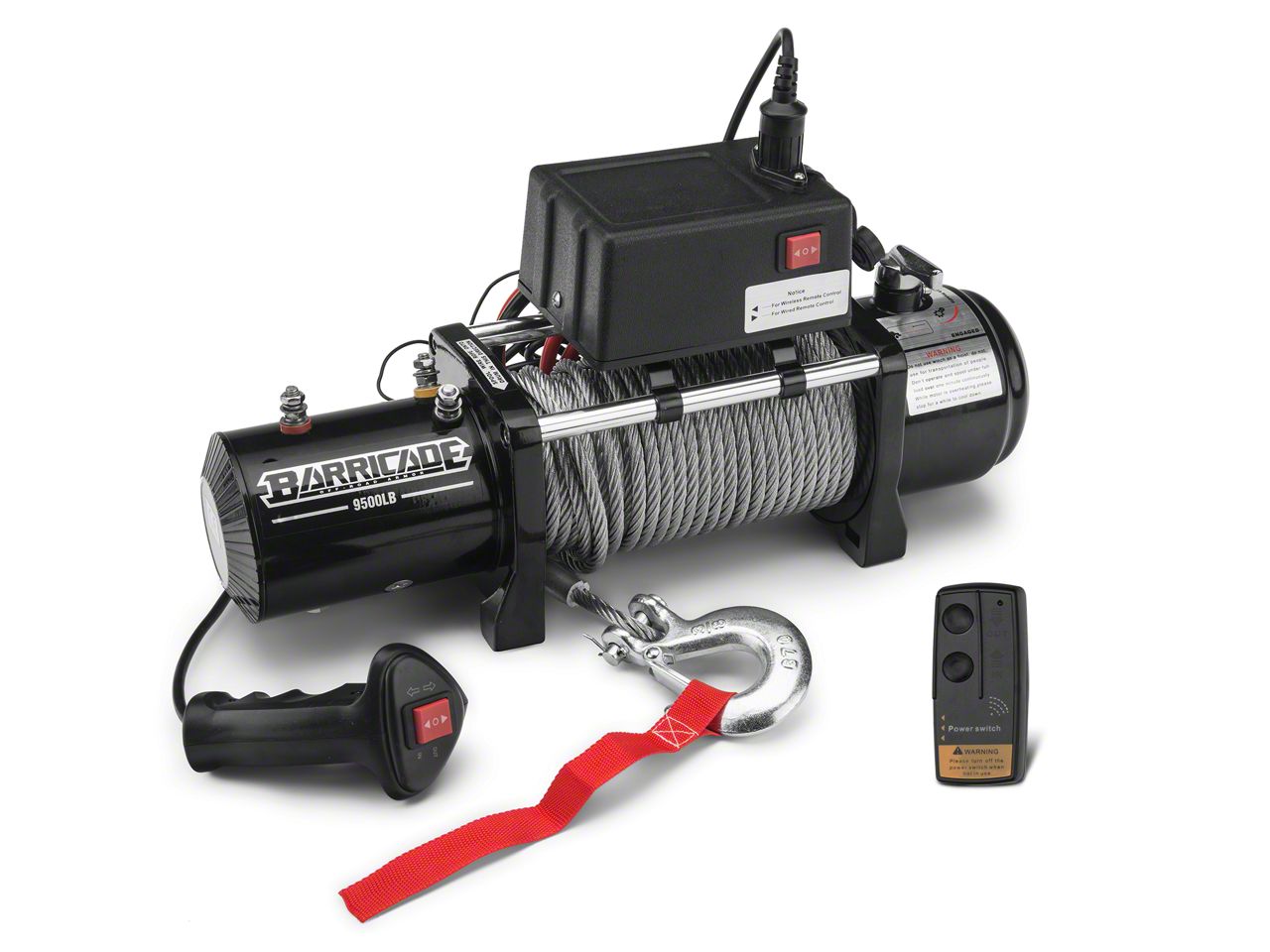

Barricade 9,500 lb. Winch with Wireless Control (Universal; Some Adaptation May Be Required)
Item TT2472
$266.39
277 Reviews
On Sale
-42% $266.39 kit Was $459.99
Coupon
Military, Medical & First Responders
Earn $26.64 in XT Cash Rewards. Get Verified
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Frequently Bought Together
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- 9,500 lb. (4310 Kgs.) Single-Line Pulling Rating
- 5.5 HP 12-Volt Series Wound Electric Motor
- 3 Stage Planetary Gear with 195.4:1 Gear Ratio
- 94 Feet of 21/64-Inch Steel Winch Rope with Replaceable Hook
- Wireless Remote Control Operation
- Optional Wired Remote Switch with 12 Foot Lead Included
- Durable Black Powder Coat Finish
- Hook and Roller Fairlead are Included
- Overall Dimensions: 21.1" Ă— 6.3" Ă— 8.6"
- Mounting Bolt Pattern: 254mm x 114.3mm
- Weight - 58 lbs.
- Fits All Toyota Tacoma Models
Description
Recovery Power. When taking your Toyota Tacoma off-road it is best to be prepared for any possible situation. That is why you should invest in a Barricade Off-Road 9500 lb Heavy Duty Winch with Wireless Remote Control. This Barricade Winch is a key part of a reliable recovery system that will allow you get yourself or others freed from the biggest rock jams or deepest mud pits.
Heavy Duty 9500 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor and features a rugged 3-stage planetary gear box with a 195.4:1 gear ratio to provide 9500 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.
Additional Features. This Barricade Off-Road 9500 lb Winch features a 4-way aluminum roller fairlead that helps reduce wear and tear on the 94 feet of 21/64" steel cable while keeping it from binding. This Barricade Winch also includes a wireless remote control as well as a wired remote control with a 12 foot lead, so you can safely stand clear when in operation.
Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1" Ă— 6.3" Ă— 8.6" and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.
Application. This Barricade Off-Road 9500lb Winch with Wireless Remote is designed for use on all Toyota Tacoma models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
Heavy Duty 9500 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor and features a rugged 3-stage planetary gear box with a 195.4:1 gear ratio to provide 9500 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.
Additional Features. This Barricade Off-Road 9500 lb Winch features a 4-way aluminum roller fairlead that helps reduce wear and tear on the 94 feet of 21/64" steel cable while keeping it from binding. This Barricade Winch also includes a wireless remote control as well as a wired remote control with a 12 foot lead, so you can safely stand clear when in operation.
Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1" Ă— 6.3" Ă— 8.6" and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.
Application. This Barricade Off-Road 9500lb Winch with Wireless Remote is designed for use on all Toyota Tacoma models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
- 0 lbs. - 35.4 ft./min
- 2000 lbs. - 14.8 ft./min
- 4000 lbs. - 11.2 ft./min
- 6000 lbs. - 9.5 ft./min
- 8000 lbs. - 7.87 ft./min
- 9500 lbs. - 6.43 ft./min
- Replacement Hardware – SKU U2401H
Barricade TT2472
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Hexagon screw
- (1) Spring washer M5
- (1) Clutch handle
- (1) Nut cap
- (1) Cup gasket
- (1) Spring washer Φ20
- (2) O-ring
- (1) Gear box housing
- (1) Shaft sleeve
- (1) Sun gear
- (1) 3rd Planetary gear assy
- (1) Dual inner gear
- (1) 2nd Planetary gear assy
- (1) 1st Planetary gear assy
- (1) Sealing washer
- (4) Hexagon screw M8x25
- (4) Spring washer Φ8
- (1) Gear box bracket
- (10) Spring washer Φ4
- (10) Hexagon screw M4x20
- (2) Bearing bush
- (2) Sealing washer
- (1) Transmission shaft
- (1) Drum assembly
- (1) Brake assembly
- (2) Tie bar
- (1) Motor assembly
- (4) Cross Recess Head Screw M4.2x12
- (2) Mounting bracket assembly for control box
- (1) Control box assembly
- (1) Fairlead
- (1) 3/8" Hook
- (1) Wired remote control
- (1) Battery negative (-) cord 1.8M
- (1) Wireless remote control (Optional)
- (1) 0.75mm2 brown switch control wire (Part No S0107/08-31)
- (1) 0.75mm2 red switch control wire (Part No S0107/08-32)
- (1) 0.75mm2 yellow switch control wire (Part No S0107/08-33)
- (1) 0.75mm2 yellow remote control wire (Part No S0107/08-34)
- (1) 0.75mm2 white remote control wire (Part No S0107/08-35)
- (1) 0.75mm2 red remote control battery "+" (Part No S0107/08-36)
- (1) 0.75mm2 black remote control battery "-" (Part No S0107/08-37)
- (1) Green antenna (Part No S0107/08-38)
- (1) 0.4m short Black Cable with Yellow Terminal Sleeve (Part No S0107/08-39)
- (1) 1.8m long red battery cable "+" (Part No S0107/08-40)
- (1) 0.4m black motor cable with black sleeve (Part No S0107/08-41)
- (1) Black Cable with Black Sleeve (0.75mm x 0.45m; earth) (Part No S0107/08-42)
- (1) 0.4m Short Red Cable with Red Terminal Sleeve (Part No S0107/08-43)
- (1) Receiver for remote (Part No S0107/08-44)
- (1) U Type Strap - Aluminum (Part No S0107/08-45)
- (1) Solenoid 12V (Part No S0107/08-46A)
- (1) Solenoid 24V (Part No S0107/08-46B)
- (1) Mounting hardware (3/8" UNC x 1-1/4" stainless steel bolts and spring washers)
- (1) Instruction manual / wiring diagrams
