How to Install ARB 50 Qt Transit Bag for ARB Fridge Freezer on your Jeep Wrangler

1. Carefully open the package using a box cutter or knife (Figure A) and ensure the transit bag and lid cover are included and undamaged.

2. Open the lid to the ARB Fridge Freezer (Figure B).

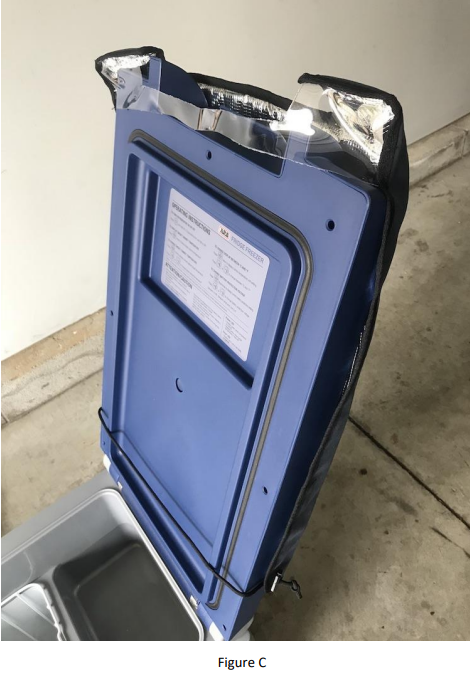

3. Slide the lid cover over the lid with the drawstring over top, as well and the reflective siding against the lid (Figure C).

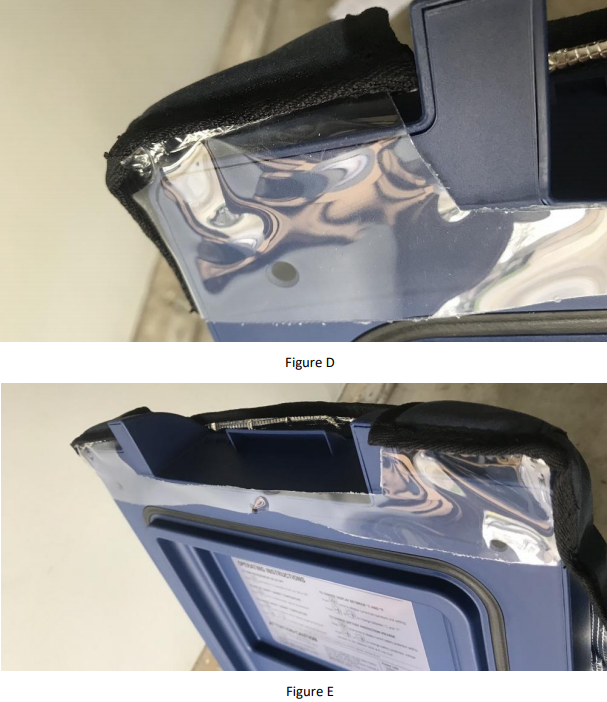

4. Ensure the clear plastic corner is tightly secured to both top corners of the lid (Figures D & E).

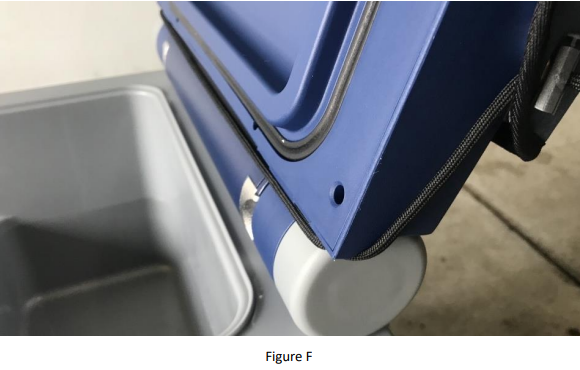

5. Ensure the drawstring is tucked into the recess of the hinge (Figure F).

6. Tighten the drawstring.

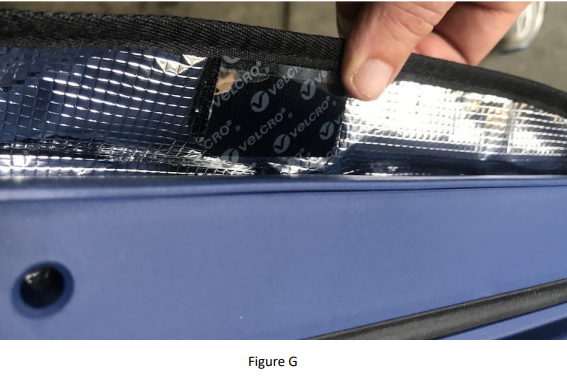

7. Locate the five Velcro sections and remove the plastic to secure each section to the lid (Figure G).

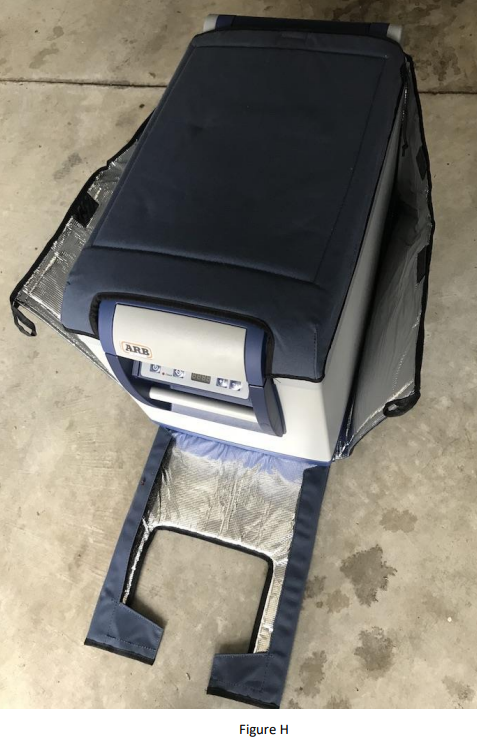

8. Place the ARB Fridge Freezer inside the bottom section (Figure H).

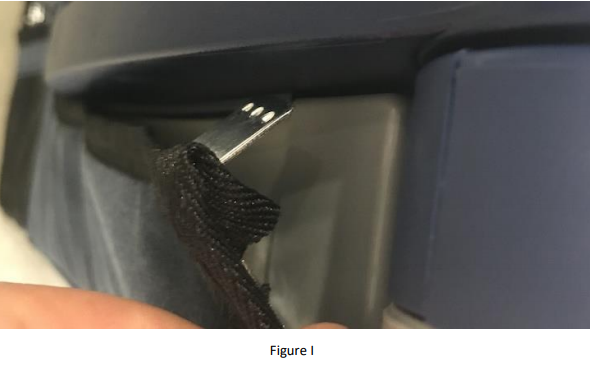

9. Slip the metal tab into the recess on both sides of the rear of the fridge (Figure I).

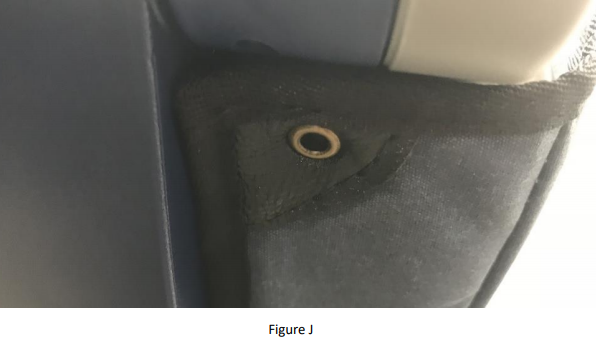

10. The cover should sit flush once they are inserted (Figure J).

11. Do the same on the front two metal tabs.

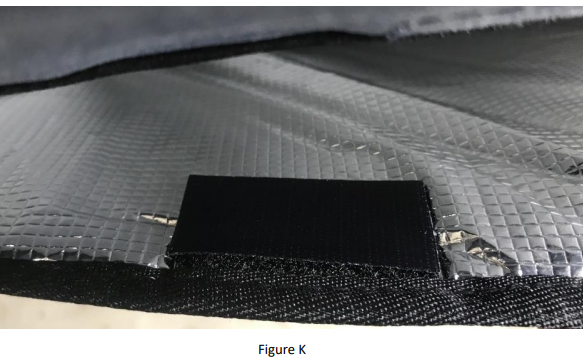

12. Locate the four Velcro sections and remove the plastic to secure each section to the fridge body (Figure K).

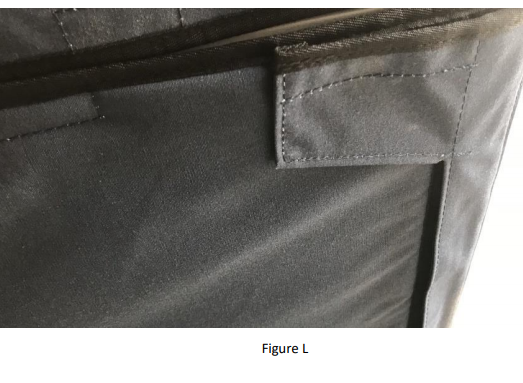

13. Tighten the front of the bag around the sides and press into the Velcro lining (Figure L).

Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 04/16/2018.
