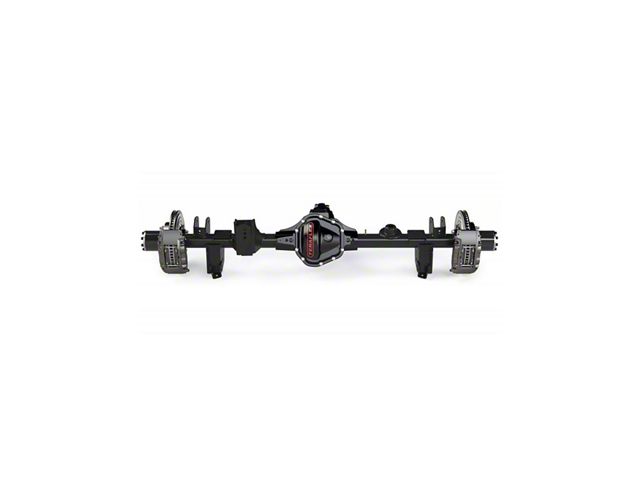

Teraflex CRD60 HD Rear Axle with Full-Float, ARB Locker and 4.30 Gears for 0 to 6-Inch Lift (18-26 Jeep Wrangler JL)Find parts that fit my vehicle
Item J169564
Our Price
$8,298.99
Military, Medical & First Responders
$414.95 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A
Features & Specs
- Extreme Duty Full-Float Design
- 3.25" O.D. X 0.375" Wall DOM Axle Tube For Superior Strength Vs. Weight
- 70" WMS-WMS And 8x6.5" Wheel Bolt Pattern
- Fixed Spindle Mount Hub Assembly
- Tera CRD60 Specific High-Pinion Rear Axle Housing Design
- Includes 1350 Series Pinion Yoke
- 35-Spline Inner And Outer Axle Shafts
- HD Bearing Caps Increase Rigidity And Reduce Ring & Pinion Distortion
- Constant Radius Design (CRD) Provides Maximum Ground Clearance Regardless Of Pinion Angle
- Built-In Skimmer Cuts Ring Gear Oil Halo And Forces It Into The Pinion Bearings
- Outer Pinion Bearing Pocket Features A Renewable Oil Reservoir That Sends Cool Oil To The Pinion Bearing
- Oversized Outer Pinion Bearing Handles Increased Torque And High-Load Conditions
- High-Capacity Housing Holds Maximum Amount Of Oil
- Pre-Installed Inner Axle Seals
- Ductile Cast Iron Housing With Increased Rib Gussets
- HD Ductile Iron Differential Cover With Increased Cover Mounting Area
- Integrated Lower Control Arm Skid Plates
- High-Flow Oil Passages
- Reinforced Rear Track Bar Mount With Multiple Mounting Locations
- UV Protected Triple-Stage Powder Coat For Corrosion Resistance
- 1/4"-Thick CNC Laser Cut Axle Brackets For Extreme Strength
- Pre-Installed Upper Control Arm Bushings
- Proper Pinion Angle And Raised Track Bar Bracket For Lifted JL Applications
- Pre-Tapped Hole On Spring Perch For Bump Stop Extensions
- Pre-Drilled Holes For Limit Straps And Lower Spring Retainers
- Retains All JT ESP, ABS, And Speedometer Sensor Capability
- 100% Engineered, Designed, And Built In The USA With New Components
- 1-Year/Unlimited Mileage Warranty
- Fits 18-26 Jeep Wrangler JL
| Brand | Teraflex |
| Type | Dana 60 |
| Placement | Rear |
Description
Heavy Duty Axle Assembly. The Teraflex CRD60 HD Rear Axle with Full-Float, ARB Locker and 4.30 Gears for 0 to 6-Inch Lift offers a robust axle replacement or upgrade solution designed to handle extreme off-road conditions. It provides enhanced ground clearance and strength by utilizing full-float outer axles and Super 60 bearings, making it ideal for lifted JL Wrangler vehicles.
Construction and Appearance. Constructed from ductile cast iron with reinforced rib gussets, this axle housing includes thick 3.25" diameter DOM axle tubes with a 0.375" wall for superior durability and strength-to-weight balance. It features a UV-protected triple-stage powder coat finish that ensures corrosion resistance and long-lasting protection in harsh environments.
Installation. Installation requires moderate mechanical skill and is recommended to be performed by a certified mechanic. The process involves no drilling, but precise adjustments are necessary to ensure proper fit and performance.
Warranty. This axle assembly includes a 1-year unlimited mileage warranty, providing confidence in its durability and quality.
Application. Designed to fit 18-26 Jeep Wrangler JL models with 0-6 inch lift, this axle assembly is made to replace bent, broken, or damaged axles or serve as an upgraded heavy-duty option for off-road enthusiasts.
Teraflex 3206430
