Installation Time
(approx) 4 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

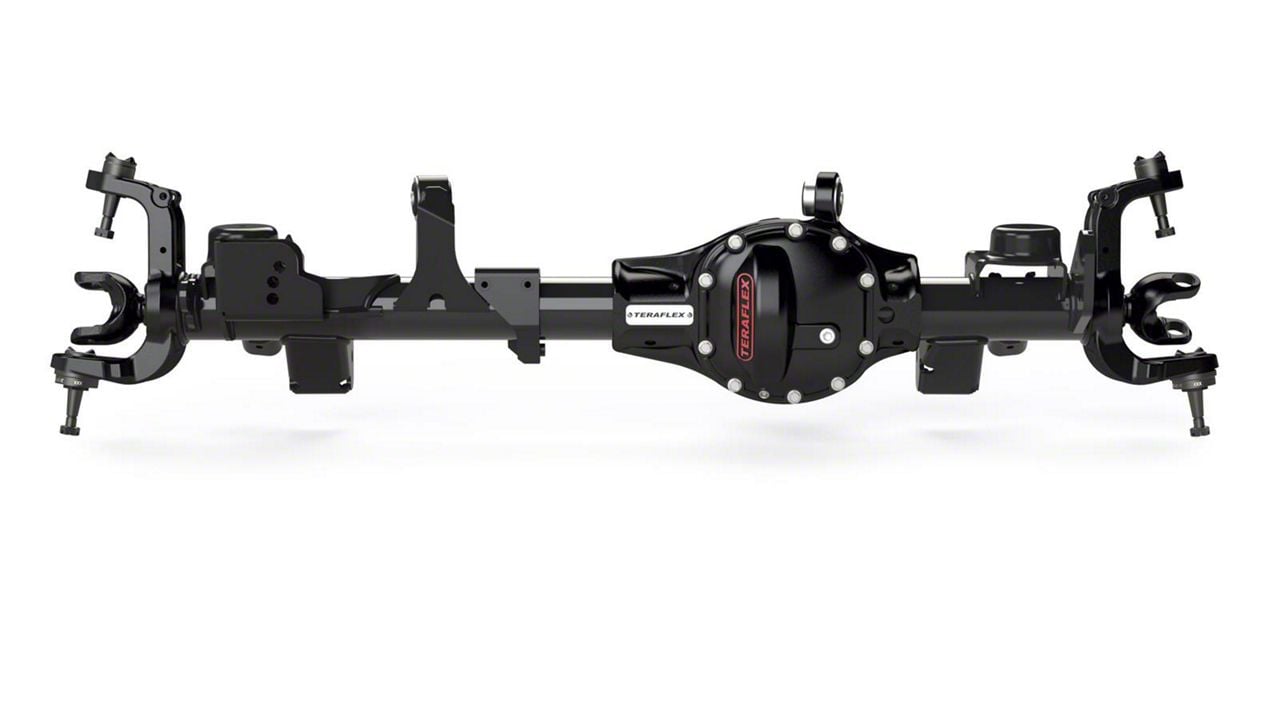

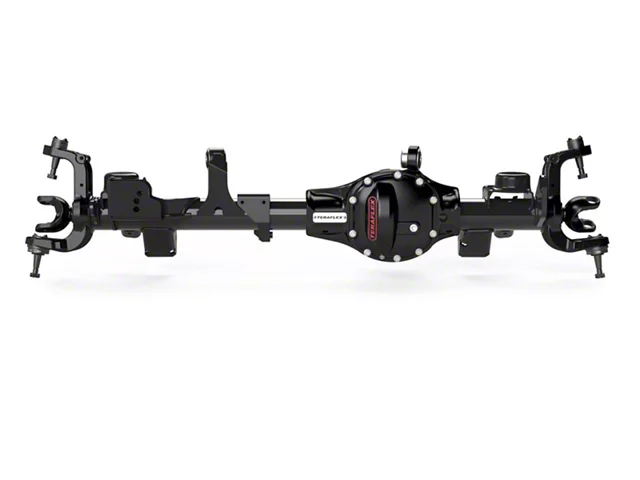

Teraflex Tera30 HD Front Axle Housing for 0 to 5-Inch Lift (18-26 Jeep Wrangler JL)Find parts that fit my vehicle
Item J173550
Our Price
$3,399.99 each
Military, Medical & First Responders
$170.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Heavy-Duty Housing With Axle Tubes, Bracketry, And Forged Inner Knuckles
- Pre-Installed Inner Seals And Upper Control Arm Bushings
- Transfer Existing Components To New Housing
- Replaces Bent, Broken, Or Damaged Axles For JL Wrangler/Unlimited And JT Gladiator Including Rubicon Models
- Direct Bolt-On Upgrade To Strengthen Stock Axle
- Front Inner Axle Shafts Included For JL And JT
- Compatible With Dana 30 AdvanTEK (M186) Internal Components
- Lift Height: 0 To 5 Inches
- WMS-WMS: 66.5 Inches
- Axle Tube: 3.25 Inches By 0.5 Inches
- 27-Spline Axle Shafts
- Wheel Bolt Pattern: 5x5 Inches
- Eliminates Center Axle Disconnect
- Asymmetric Housing Design For Extra-Long Tube Side Strength
- 3.25 Inch Outer Diameter By 0.5 Inch Wall Extreme Duty Axle Tube
- Hd Forged Inner Knuckles With Greater Strength
- Ductile Cast Iron Housing With Increased Rib Gussets
- Hd Ductile Iron Differential Cover With Increased Mounting Area
- Smooth Radius Bottom Design To Glide Over Rocks And Obstacles
- Integrated Lower Control Arm Skid Plates
- High-Flow Oil Passages And Bottom Oil Drain Hole
- Uv Protected Triple-Stage Powder Coat For Corrosion Resistance
- Quarter Inch Thick CNC Laser Cut Axle Brackets
- Integrated Factory Location Upper Control Arm Mount
- Proper Pinion Angle And Raised Track Bar Bracket For Lifted Applications
- Pre-Drilled Holes On Spring Perches For Bump Stop Extension Bolts
- Retains Factory ESP, ABS, And Speedometer Sensor Capability
- Installation Time Approximately 8 Hours
- Does Not Work With Front Axle Disconnect
- Requires Use Of Tera30 HD Front Inner Right Axle Shaft For Compatibility
- Fits 18-26 Jeep Wrangler JL
| Brand | Teraflex |
| Type | Dana 30 |
| Placement | Front |
Description
Heavy-Duty Upgrade. The Teraflex Tera30 HD Front Axle Housing for 0 to 5-Inch Lift is designed to replace or upgrade the front axle housing of select Jeep Wrangler JL models. It enhances strength and durability, making it ideal for off-road enthusiasts seeking to bolster weak points of the factory axle or repair damaged components. This housing allows you to transfer your existing internal and outer axle components, maintaining factory compatibility.
Construction and Appearance. Built from ductile cast iron with increased rib gussets, this housing features forged inner knuckles and a robust 3.25-inch diameter, 0.5-inch wall axle tube for exceptional torsional strength. The housing includes a heavy-duty ductile iron differential cover and is finished with a UV-protected triple-stage powder coat that resists corrosion and enhances longevity.
Installation. Installation requires mechanical expertise and is recommended to be performed by a certified mechanic. The process does not require drilling and typically takes about 8 hours to complete, transferring your existing components seamlessly.
Warranty. This product comes with a 1-year unlimited mileage warranty.
Application. Specifically designed to fit 2018 through 2026 Jeep Wrangler JL models. Not compatible with front axle disconnect systems and requires the Tera30 HD front inner right axle shaft for proper fitment and operation.
Teraflex 3630100
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Axle Housing Assembly
- Mounting Implements
