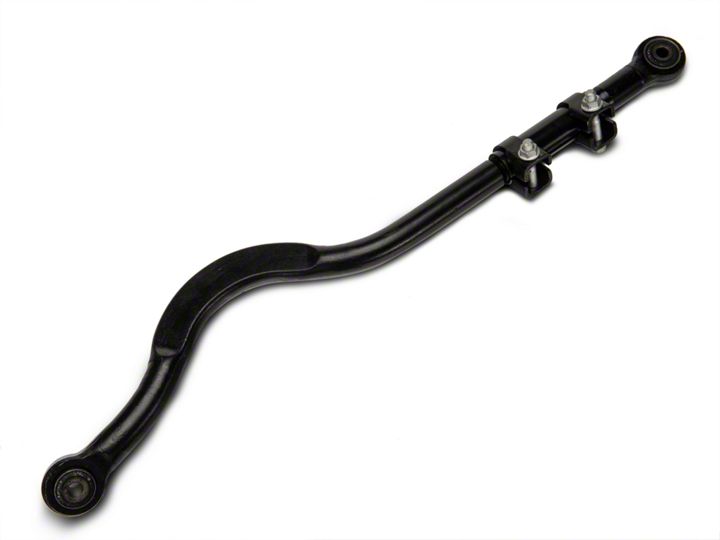

How to Install Teraflex HD Forged Front Adjustable Trackbar on your 2007-2013 Wrangler

Tools Required
  • Basic Hand Tools Required
Extreme Terrain
Shop Parts in this Guide

This front track bar will fit all JK Wrangler models. Installation and final length adjustment should be done with the vehicle  on the ground.


1. Remove the stock track bar.

2. Bounce the vehicle up and down several times to bring the axle centered under the vehicle. It may be helpful to use a ratchet strap to pull the axle to one side or the other to center the axle

3. Install the axle end of the track bar to the axle bracket with the factory bolt.

4. Adjust the track bar length so the frame end bracket lines up with the flex joint on the new adjustable track bar and tighten the jam nut on the joint.

5. Install the frame end bolt and torque both bolts to 110-120 foot pounds.

6. Grease both end joints now and every 3000 miles
