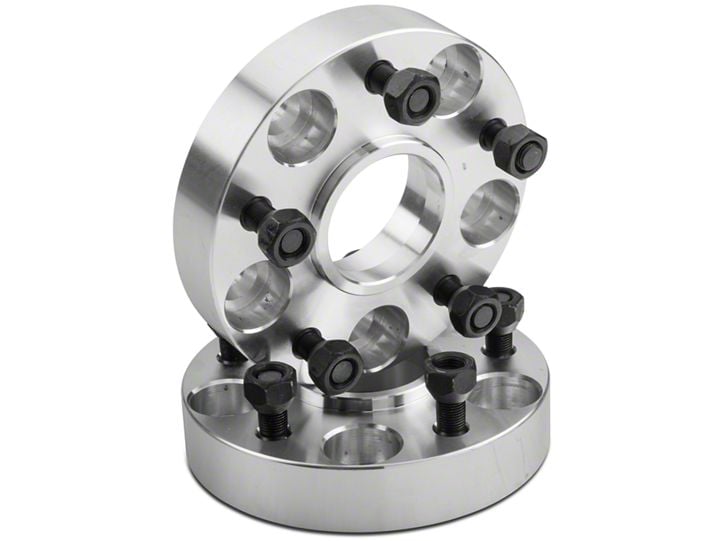

How to Install Teraflex 1.25 Wheel Offset Adapters-pair on your 07-18 Jeep Wrangler JK; 2018 Jeep Wrangler JL

Tools Required
  • Basic Hand Tools Required
View PDF Guide
Extreme Terrain
Shop Parts in this Guide


Important Notes!

Some JK factory rear studs are longer than 1.25 inches. Carefully grind down the end of the stud (the dog point where there are no threads) to reduce the overall length to slightly less than 1.25 inches without damaging the threads.

JK Wheel adapter studs must be carefully pressed into either the 4.5 or 5.5 diameter bolt circle depending on your wheels of choice. Use an arbor press or other similar device to install the studs. Wheel spacer studs come pre-installed.

After installing the wheel spacer/adapater, use a straight edge to ensure that the factory studs are below the flat surface where the wheel mounts to the spacer/adapter

Note: You can test fit the spacer/adapter first. If the studs are below the surface then do not grind the end of the factory stud.
