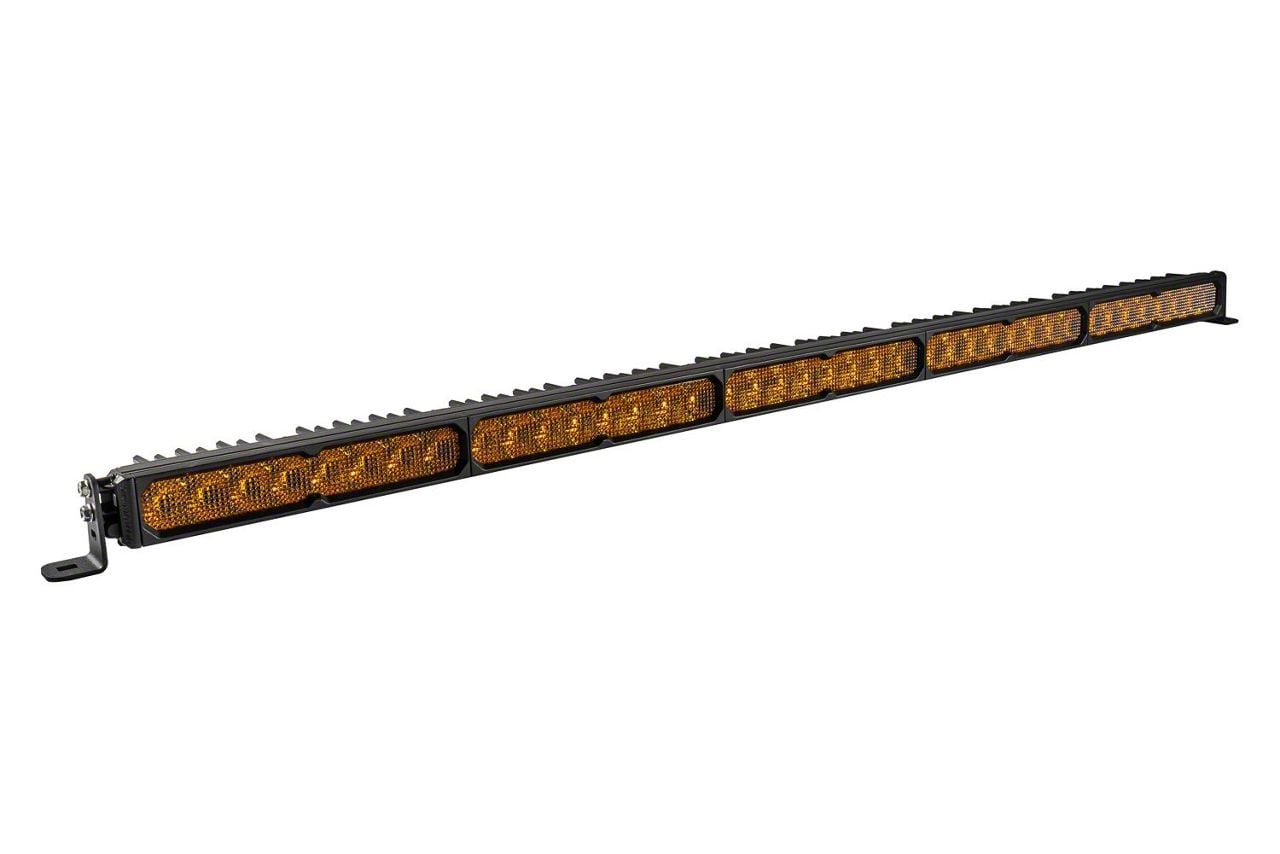

Diode Dynamics SS50 Sport Single Row LED Light Bar with Amber Backlight; Yellow Flood (Universal; Some Adaptation May Be Required)

Item TT81400
Our Price

$999.95

Military, Medical & First Responders $50.00 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Patented TIR Optics For Maximum Efficiency And Output.
      • _x000D_
      • Upgraded Beam Patterns Engineered For Real-World Performance.
      • _x000D_
      • True Amber Backlight Provides Unique Accent Lighting.
      • _x000D_
      • Available In Sport And Pro Power Levels.
      • _x000D_
      • Durable Aluminum Housing With ASTM-Standard Powdercoat Finish.
      • _x000D_
      • Built For Extreme Conditions With IP69K Waterproof Rating.
      • _x000D_
      • Limited Lifetime Warranty Included.
      • _x000D_
      • Made In USA With Globally Sourced Materials.
      • _x000D_
      • Sport Model Power Consumption: 212 Watts.
      • _x000D_
      • Pro Model Power Consumption: 295 Watts.
      • _x000D_
      • Operating Voltage Range: 9-30V.
      • _x000D_
      • Operating Temperature Range: -40° To 85°C (-40°F To 185°F).
      • _x000D_
      • LED Emitters: Osram Ostar Projection Compact, Lumileds Automotive Grade LEDs.
      • _x000D_
      • Connector Type: Deutsch DT-P Input.
      • _x000D_
      • Materials Include Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets.
      • _x000D_
      • Cooling Method: Passive, Heatsink.
      • _x000D_
      • Product Dimensions: 2.01 Inches (Height) x 51.63 Inches (Length) x 2.46 Inches (Depth).
      • _x000D_
      • Beam Angles Available: Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, Spot 8°x8°.
      • _x000D_
      • Output Color Temperature: 3000K Yellow.
      • _x000D_
      • Sport Model Peak Beam Intensity Up To 761,000 Candela (Spot Optic).
      • _x000D_
      • Pro Model Peak Beam Intensity Up To 835,000 Candela (Spot Optic).
      • _x000D_
      • Includes One LED Light Bar, One Wire Pigtail, And Universal Bracket Set.
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required.
      • _x000D_

      Description

      High-Performance LED Lighting. The Diode Dynamics SS50 Sport Single Row LED Light Bar with Amber Backlight and Yellow Flood is engineered to deliver exceptionally bright and focused amber LED output suited for off-road and inclement weather driving. Its superior optics ensure precise illumination, enhancing visibility in fog, rain, and snow for safer and more confident travel.

      _x000D__x000D_

      Construction and Appearance. This light bar features a robust aluminum housing finished with an ASTM-standard powdercoat that provides corrosion resistance and durability. It utilizes premium Osram and Lumileds automotive-grade LEDs housed behind a polycarbonate lens, cooled efficiently by a passive aluminum heatsink system. The amber backlight fully illuminates the TIR optic, giving the light bar a distinctive appearance.

      _x000D__x000D_

      Installation. Installation is straightforward and typically takes between 30 to 60 minutes using basic tools. Mounting requires no drilling when using the included universal bracket kit, simplifying the setup process.

      _x000D__x000D_

      Warranty. This product includes a limited lifetime warranty, ensuring long-term reliability and peace of mind.

      _x000D__x000D_

      Application. Designed for universal fitment, this light bar may require some adaptation to fit specific vehicles or mounting locations.
