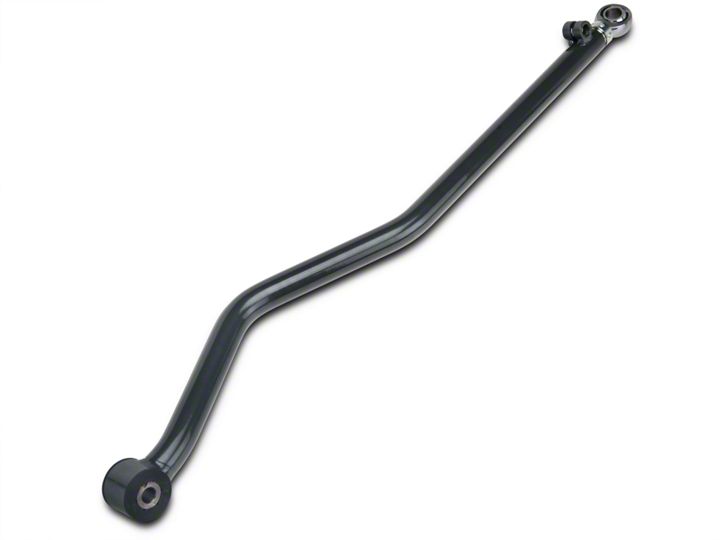

How to Install a Synergy Front Track Bar on your 2007-2014 Jeep Wrangler JK

Installation Time

1 hours

Extreme Terrain
Shop Parts in this Guide

GENERAL NOTES:

• These instructions are also available on our website; www.synergymfg.com.
Check the website before you begin for any updated instructions and additional
photos for your reference.

• The installation of this adjustable track bar will allow you to correctly align the
front axle after a suspension lift kit is installed.

• The track bar features a double adjuster sleeve which allows you to adjust the
length of the track bar without removing the end of the track bar from the vehicle.

1. The track bar is pre assembled with all the necessary components.

2. Installation of the track bar can be performed with the vehicle sitting on level ground.

3. Remove the existing track bar, a 21mm wrench and socket will be required.

4. Install the new adjustable track bar with the bend upwards with the bushing at the
frame end and the adjustable rod end at the axle end.

5. Re-use the stock track bar mounting bolts and torque to 125 ft-lbs, the frame bolt
must be installed from front to rear. It helps to have someone turn the steering wheel
to help align the bushing to the bracket hole when inserting the bolt.

6. Center the axle by turning the adjuster sleeve, counterclockwise will extend the track
bar. Use a ¼” punch or similar tool to turn the adjuster sleeve. Once you have the
axle centered tighten the pinch bolt to 80 ft-lbs.

7. Grease the polyurethane frame pivot bushing with quality automotive chassis grease
through the attached zerk fitting.
