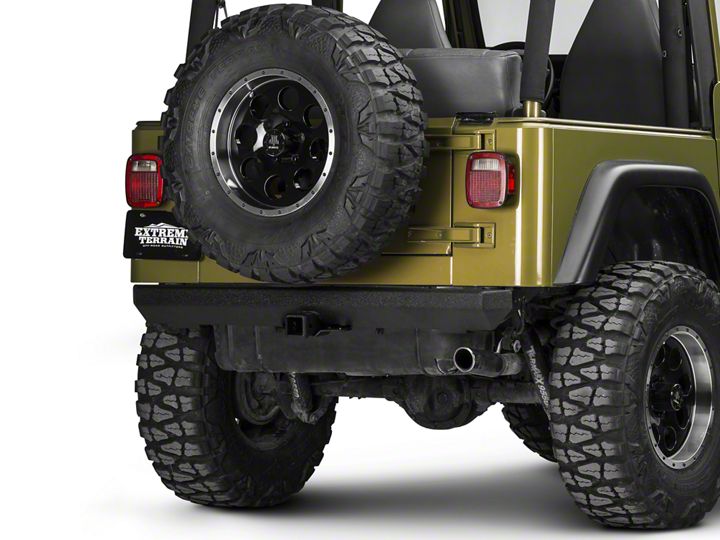

How to Install Smittybilt SRC Classic Rock Crawler Rear Bumper on your 1987-2006 Wrangler

Tools Required
  • Basic Hand Tools Required
Extreme Terrain
Shop Parts in this Guide

Note: Actual hardware may be Metric,
which would coincide with the standard
size shown.

Note: Check with OEM towing specifications and operation before towing anything with your vehicle.

Installation Instructions

1. Remove factory bumper, if equipped.

2. Locate (2) Backing Plates, (4) 3/8” Hex Bolts, (4) 3/8” Flat Washers, and (4) 3/8” Lock Washers. With a helpers assistance attach backing plates to the rear of the vehicle frame. Align holes in rear plate on the Bumper to those existing holes in the frame. Loosely attach to one side of vehicle with the hardware listed in this step. (See illustration below)

3. Repeat Step 2 for opposite side; loosely attach bolts at this time.

4. Align the lower mount brackets (one per side) with the holes on the bottom of the frame. Using (1) 7/16” Hex Bolt, (1) 7/16” Flat Washer, and (1) 7/16” Lock Washer attach and secure the bottom bracket to the frame. Note: if equipped, the factory bolt can be used in this step.

5. Repeat Step 4 for opposite side.

6. Tighten all hardware completely at this time.

Note: On 97-on models, dropping of the fuel tank and skid plate will ease installation. Be sure to check and follow manufacturer’s directions for this process.


NOTE: To protect your investment, wax this product after installing. Regular waxing is recommended. Do not use any type of polish/wax that contains abrasives that could damage the finish.
