How to Install a Smittybilt Fender Flares on your 1987-1995 Wrangler YJ

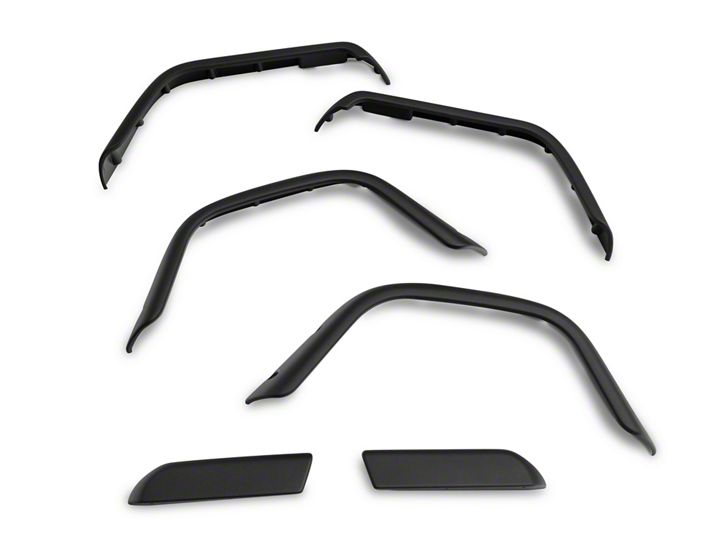

Included in this Kit: (2) Front Flares (2) Rear Flares (2) Mud Guard

Hardware Bag: (28) Snap bases, (28) Snap Covers, (40) Rubber Spacers,(4) #8 x 1-1/2” Screw (28) #12 x 1-1/4” Screw (20’) Rubber Fender Trim

Prior to installation: Pre-fit all flares before you attempt to install. If you plan on painting your Fender Flares it must be done prior to installation. All surfaces must be cleaned using a scouring pad such as Scotch Brite and prepped using an adhesion promoter. Follow all specifications required by the paint manufacturer. As you remove factory parts set them aside safely for later use.

Step One: Remove the Factory Flares from vehicle

1. Start with the rear fender flare.

2. Locate and remove the bolts holding the factory flares on the vehicle.

3. Repeat on the other side of vehicle.

4. Proceed to the front and remove the marker lights on the factory flare. Set aside for later use. Locate and remove the bolts holding the factory flare on the vehicle.

5. Repeat on the other side of vehicle.

Step Two: Install Rubber Trim

1. Locate the supplied rubber trim. Peel back approximately 1” of the backing away from the edge of the rubber trim. Starting at one end of the flare, push the trim onto the outer edge of the flare (See: Fig A)

2. Continue pressing the rubber trim onto the flare. Push on approximately 4” then hold in
place. (See: Fig B) Pull away the backing from backside. (See: Fig C) Continue on in this
manner until you have gone completely around the flare. This will take some time but once you master the technique it will proceed quickly. Cut rubber trim to length as installed.

3. Repeat this process for the remaining flares.

IMPORTANT: If you are planning to install 33” Tires or larger on you Jeep®, Please proceed to Trimming Jeep® Fenders before proceeding with the installation.

Step Three: Install Flares and Mud Guards

1. Attach the new Mud Guards to the vehicle using the factor screws removed in step 1. (TJ ONLY: Discard Mud Guards for CJ7 and Scrambler Jeeps)

2. Align the front fender flares on the vehicle. The cut a hole in the turn signal area must align with the hole in the new Flare. Mark mounting holes using fender flares as a guide (See: Fig C)

3. Center punch all marked areas and proceed to drill using a 5/32 drill bit.

4. Attach the flares using the supplied screws. Place screws over the snap cap base, through flares and then place (2) rubber spacers over the screw and attach the flares to the vehicle. Do NOT over tighten the screws. Reinstall the factory marker light into flare, using the supplied (4) #8 x 1- 1/2” screws.

5. Align the rear flare with the rear vertical seam of the factory fender. YJ ONLY Align the
other end of the flare with the bottom edge of the bodywork. ALL MODELS Mark the
mounting holes using the flare as a guide. (See: Fig C)

6. Center punch all marked areas and proceed to drill using a 5/32 drill bit.

7. Attach the flares using the supplied screws. Place screws over the snap cap base, through flares and then place (1) rubber spacer over the screw and attach the flares to the vehicle. (See: Fig D) CAUTION DO NOT over tighten screws

8. Place the snap cap cover over the mounting screws and cap base and press firmly into place. Repeat process for the remaining caps.

Trimming Vehicle Fenders – For YJ ONLY with 33” or Larger Tires

1. Measure 4-3/4” from the back vertical seam of the front fender towards front of
vehicle and mark this location at the bottom edge of the fender. (See: Fig E)

2. From this measurement draw a straight line up tangent to the radius of the
vehicle fender opening. Cut away metal using an air nibbler or other suitable
tool. Coat this area with a rust inhibitor to prevent rusting. (See: Fig E) Proceed
to rear fender. (See: Fig F).

3. Draw a line tangent to the radius of the rear wheel arch, through the factory
screw mounting hole and repeat this procedure for the front of the wheel arch.
Cut away the metal using an air nibbler or other suitable tool. Coat this area with
a rust inhibitor to prevent rusting. Repeat for all remaining fender wells.
