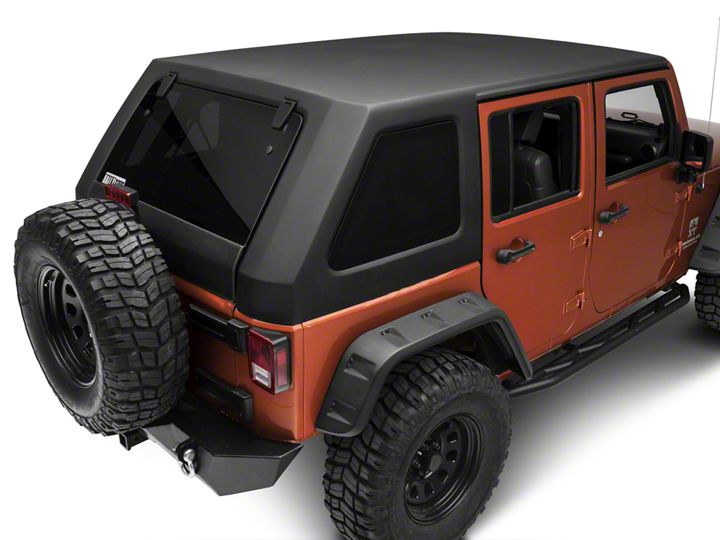

How to Install Rally Tops Slant Back Hard Top - 4-Door (07-18 Wrangler JK) on your Jeep Wrangler

Installation Time

1 hours

Extreme Terrain
Shop Parts in this Guide

1. Remove side windows. (Left & right)


2. Disengage front clips and remove 2  screws holding the retainer loop. Remove loop. Both sides.


3. Disengage soft top in rear corner. (Left  & right)


4. Disengage soft top rear bar from  retainers. (Left & right)


5. Remove retainers. (Left & right)


6. Disengage soft top from the top rail  5. Remove retainers. (Left & right)  retainers. (Left & right)


7. Unscrew the 2 soft top brace attach  points. (Left & right)


8. Disengage soft top rail retainers. (Left &  right)


9. Remove rails. (Left & right)


10. Remove soft top from vehicle.


11. Do Not Remover Front End Seals.


12. Do Not Remover Rear End Seals.


13. Using at least 2 people, place hardtop  on the Jeep.


14. It should look like this in the front.


15. Install the side rail bolts using the  supplied washers and nuts. Do not tighten.


16. Remove the factory hold down.


16A. Install new hold down.


17. Tighten the rail bolts down and engage  the front clips. Make sure the doors open and close freely. It may be necessary to adjust the top forwards or backwards.
