How to Install a Rugged Ridge Splash Guard Kit - Front and Rear on your Jeep Wrangler

View PDF Guide
Extreme Terrain
Shop Parts in this Guide

Front Kit Contents:

• (2) Front Splash Guard


• (12) Long Phillips Head Screw


• (12) Washers


• (12) Clip-on Nut


Rear Kit Contents:

• (2) Rear Splash Guard


• (8) Short Phillips Head Screw


NOTICE: Splash guard are are designed to be fitted to factory front flares and factory rear bumper.


1. Remove the factory rivet located in the lower corner of the factory fender flare. Place front splash guard against factory fender flare.


2. Use splash guard as a guide to mark guide holes. Drill into marks made using a 13/64 drill bit.


3. Attach clip-on nuts. Attach splash guard with long phillips head screws and washers.

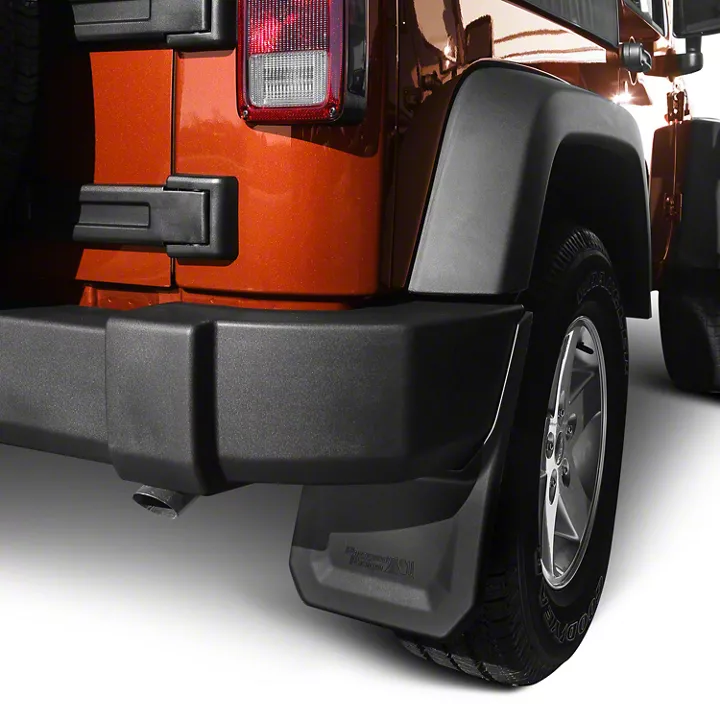

4. Place rear splash guard against factory bumper.


5. Use splash guard as a guide to mark guide holes. Drill into marks made using a 13/64 drill bit.


6. Attach splash guard with short phillips head screws.
